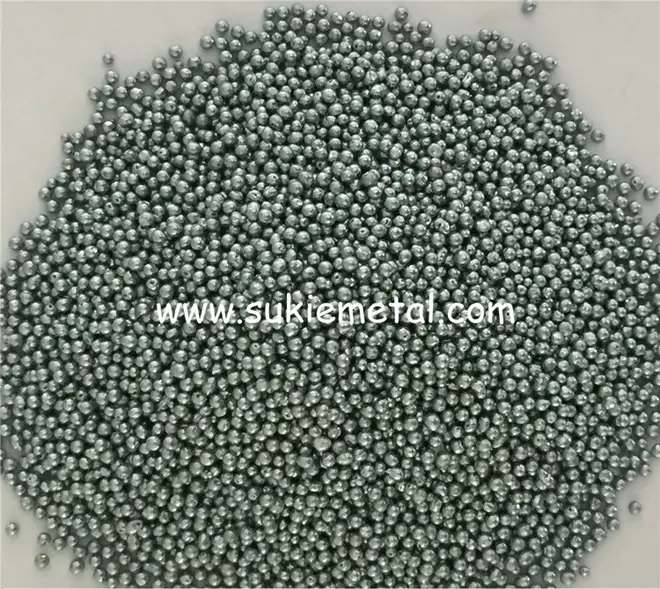

Casting Zinc Shot Ball produced by Sukie Metal Abrasive, ball
Casting Zinc Shot Ball grain detail Casting Zinc Shot Ball in bulk Zinc Shot and Cut Wire range
Zinc range

High Hardness Zinc Shot Ball

0# distilled zinc, 0.3 mm to 5.0 mm, 45-60 HV and 80-100 HV

Material
Zinc
Size available
0.3 mm to 5.0 mm
Grain shape
Ball
Minimum order
On request
Request A Quote Request A Sample Talk To An Engineer Email Us

Have a drawing or a photo of the part? Send it on WhatsApp or attach it to an email and we will recommend the alloy and grain size.

At A Glance

The zinc shot balls are made of 0# distilled electrode position zinc with state-of-the-art technology. Grain sizes range from 0.3 mm to 5.0 mm with hardness of 45-60 HV and 80-100 HV.

  • Grades. 0#Zn 99.99% · 45-60 HV · 80-100 HV (shot ball)
  • Produced by. Casting from 0# distilled electrode position zinc
  • Packing. 25 kg/bag, or 1 ton/pallet, or ton bag, according to customer requirements
  • Lead time. Confirmed at order
  • Standards. AMS 2431/8A, MIL-S-13165C, DIN 8201 and three more
OverviewBenefitsApplicationsSpecificationsMaterialsManufacturingQuality ControlCustomizationComparisonUse GuideFAQRelated

Product Overview

The zinc shot balls are made of 0# distilled electrode position zinc with state-of-the-art technology. Grain sizes range from 0.3 mm to 5.0 mm with hardness of 45-60 HV and 80-100 HV.

Density is close to iron with low hardness, so the media does not wear the surface of metal workpieces. The flash point of zinc powder is low, which gives higher security than alumina shot, and the whitening effect on the workpiece surface is obvious.

Key Benefits

  • Operation of security
  • Strong effect on deburring and deflashing
  • Gloss surface of work piece
  • Reasonable price
  • Density close to iron with low hardness, so it deburrs without wearing the metal surface
  • Obvious whitening effect on the workpiece surface
  • In electro galvanizing it lowers the electrode potential and polarization current and enhances corrosion resistance

Application Scenarios

Where it is used

  • Die casting deburring and deflashing
  • Advanced electro galvanizing
  • Metal smelting additive

Who it is for

  • Zinc and aluminium die casters removing burrs, flash and fusion marks
  • Galvanizing lines using zinc media in advanced electro galvanizing
  • Metal smelters using zinc shot as an additive

Problems it solves

  • Harder media wears down the surface of soft castings while removing the burr
  • Aluminium oxide media carries a higher flash point risk than zinc powder
  • Deflashing by hand is slow and inconsistent across a batch

Technical Features And Specifications

Place of Origin
China
Brand Name
SUKIE
Model Number
0.4-3.0 mm
Hardness
45-60 HV and 80-100 HV
Packaging Details
25 kg/bag, or 1 ton/pallet, or ton bag, according to customer requirements
UseDetail
Shot blastingSurface preparation of die castings including deburring, deflashing and marking of fusion casting
Advanced electro galvanizingTransfers the fatigue origin from the surface to the sub-surface, lowers the electrode potential and polarization current, enhances corrosion resistance
Metal smeltingUsed as an additive

Uses as published by Sukie.

Materials

This product sits in the Zinc Shot and Cut Wire range. Grades held are 0#Zn 99.99% · 45-60 HV · 80-100 HV (shot ball), across a published size range of 0.4 mm to 3.5 mm. The chemical composition above is the specification Sukie publishes for the grade.

If your process specification names a grade that is not listed, send it over. Other sizes can be customized and grade availability is confirmed at quotation.

Manufacturing Process

Casting Zinc Shot Ball is produced by casting from 0# distilled electrode position zinc, giving a ball grain.

Production route Material Wire or feedstock to grade Form Casting from 0# distilled electrode position zinc Screen Graded to the size band Test Chemistry, hardness, densi ty Pack 25 kg/bag, or 1 ton/pallet , or ton bag, according to

Quality Control And Certifications

All Sukie products are strictly executed to AMS 2431/8A, MIL-S-13165C, DIN 8201, VDFI 8001, SAE J441, DQML 001-2008 and produced with the most advanced and developed equipment.

The four advantages Sukie states for its shot are longer durability, uniform size, uniform hardness and less dust. Chemistry, hardness and density are the values published in the table above.

See Quality And Standards

Customization Options

  • Size band. The published range is 0.3 mm to 5.0 mm
  • Grain shape. As-cut and conditioned forms are produced from the same wire stock across the cut wire ranges
  • Grade. 0#Zn 99.99% · 45-60 HV · 80-100 HV (shot ball)
  • Packing. 25 kg/bag, or 1 ton/pallet, or ton bag, according to customer requirements

Get A Custom Solution

Comparison With Other Products

ProductGrain shapeSize availableAlloy
Casting Zinc Shot BallBall0.3 mm to 5.0 mmZinc
Zinc ShotConditioned, round0.4 mm to 3.5 mmZinc
Zinc Cut WireAs cut, cylindrical0.4 mm to 3.5 mmZinc
Cast Stainless Steel ShotRound grain0.05 mm to 1.2 mmStainless steel
Stainless Steel Shot ConditionedConditioned, round0.2 mm to 2.5 mmStainless steel

Use Guide

  • Check the substrate first. Ferrous media on non-ferrous parts leaves iron that rusts. This is a non-ferrous safe range.
  • Match the grain size to the feature. Smaller grains give more impacts per kilogram and a finer finish. Larger grains carry more energy per impact.
  • Match the shape to the job. As-cut cuts harder and reaches corners. Conditioned is used for peening and for a matte finish.
  • Run a trial batch. Minimum order is on request, which is low enough to prove the media on your own parts before volume.
  • Store dry. Keep bags on the pallet and off the floor until the media goes into the machine.

Shot Size Selection Guide

Questions About Casting Zinc Shot Ball

What sizes of casting zinc shot ball can you supply

0.3 mm to 5.0 mm.

What is the minimum order and how is it packed

Quoted on the size and grade required. Packing is 25 kg/bag, or 1 ton/pallet, or ton bag, according to customer requirements.

How quickly can it ship

Confirmed at order. Supply ability is confirmed at quotation.

What grain shape will I receive

Ball. It is produced by casting from 0# distilled electrode position zinc.

Can you confirm the chemistry before I order

Yes. The full chemical composition is published in the specification table on this page. Ask on WhatsApp or by email for the mill data against your order.

What payment terms apply

T/T.

Get A Price For Casting Zinc Shot Ball

Send the grain size, the substrate and your monthly tonnage. We will confirm the grade and come back with a quote.

Minimum order from 500 kg. Packed 25 kg per bag, 40 bags per pallet. Quotes in USD, terms T/T.
