Stainless Steel Cut Wire Shot As Cut
SUS304 / 302 / 202 / 201 / 430 / 410, 0.2 mm to 2.5 mm
Have a drawing or a photo of the part? Send it on WhatsApp or attach it to an email and we will recommend the alloy and grain size.
At A Glance

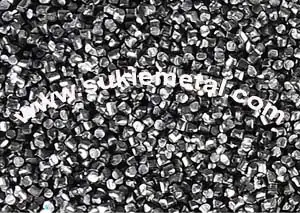

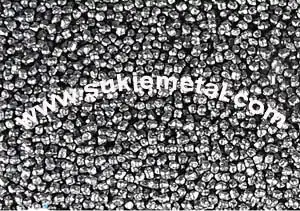

Stainless steel cut wire shot in the as-cut condition is produced by drawing into wire and cutting, with the option of grinding and conditioning into roundness. Length equals diameter on every grain.
- Grades. SUS304 · SUS302 · SUS202 · SUS201 · SUS430 · SUS410
- Produced by. Drawing into wire and cutting
- Packing. 25 kg/bag, 40 bags/pallet
- Lead time. 3 days
- Standards. AMS 2431/8A, MIL-S-13165C, DIN 8201 and three more
Product Overview
Stainless steel cut wire shot in the as-cut condition is produced by drawing into wire and cutting, with the option of grinding and conditioning into roundness. Length equals diameter on every grain.
It is widely used for cleaning, deburring, surface improvement, shot blasting and shot peening of aluminium, non-ferrous metals, zinc alloys and stainless steel precision parts. The workpiece takes a matte finish, the metal colour is highlighted and no rust is left, so acid treatment and rust removal are not needed. Abrasion resistance is 3 to 5 times greater than cast steel shot.
Key Benefits
- Abrasion resistance is 3 to 5 times greater than cast steel shot, which reduces producing cost
- No rust and no discolouration on the treated surface, so acid treatment and rust removal are not needed
- Matte finish that highlights the natural metal colour
Application Scenarios
Where it is used
- Non-ferrous metal casting
- Automobile
- Motorcycle
- Shipbuilding
- Aviation
- Steel plate and cylinder
- Steel structure
- Metallurgy machinery
Who it is for
- Aluminium and zinc die casters who cannot accept iron pick-up on the casting surface
- Stainless steel fabricators finishing sheet, tube, vessel and structural work
- Automotive and motorcycle plants blasting non-ferrous components before coating
- Foundries and metallurgy machinery shops running continuous blast wheels
Problems it solves
- Carbon steel media leaves iron on non-ferrous parts, which rusts and forces an acid pickling step
- Cast media with pores and cracks breaks down early and fills the separator with fines
- Inconsistent grain size gives an uneven finish across a batch
Technical Features And Specifications
- Place of Origin
- China
- Brand Name
- SUKIE
- Model Number
- 0.2-2.0 mm
- Material
- SUS304 / 302 / 202 / 201 / 430 / 410
- Usage
- Shot blasting, shot peening, surface treatment
- Abrasive Grain Sizes
- 0.2 mm to 2.5 mm
- Minimum Order Quantity
- 500 kg
- Packaging Details
- 25 kg/bag, 40 bags/pallet
- Delivery Time
- 3 days
- Payment Terms
- T/T
- Supply Ability
- 500,000 kg/month
| Product | Grade | Hardness | C | Si | Mn | Ni | Cr | Density | Test |
|---|---|---|---|---|---|---|---|---|---|
| Stainless steel shot (SUS304) | Austenite | 300-600 HV | 0.08% max | 1.0% max | 2.0% max | 8.0-10.0% | 17-19 | 7.9 g/cm³ | Pass |
| Stainless steel shot (SUS302) | Austenite | — | 0.08% max | 1.0% max | 2.0% max | 4.0-6.0% | 16-18 | 7.9 g/cm³ | Pass |
| Stainless steel shot (SUS430) | Ferrite | — | 0.12% max | 0.75% max | 1.2% | / | 16-18 | 7.9 g/cm³ | Pass |
| Stainless steel shot (SUS410) | Martensite | — | 0.10% | 1.0% max | 1.2% | / | 11-13 | 7.9 g/cm³ | Pass |
Chemical composition in %.
Materials
This product sits in the Stainless Steel Shot and Cut Wire range. Grades held are SUS304 · SUS302 · SUS202 · SUS201 · SUS430 · SUS410, across a published size range of 0.05 mm to 2.5 mm. The chemical composition above is the specification Sukie publishes for the grade.
If your process specification names a grade that is not listed, send it over. Other sizes can be customized and grade availability is confirmed at quotation.
Manufacturing Process
Stainless Steel Cut Wire Shot is produced by drawing into wire and cutting, giving a as cut, cylindrical grain.
Quality Control And Certifications
All Sukie products are strictly executed to AMS 2431/8A, MIL-S-13165C, DIN 8201, VDFI 8001, SAE J441, DQML 001-2008 and produced with the most advanced and developed equipment.
The four advantages Sukie states for its shot are longer durability, uniform size, uniform hardness and less dust. Chemistry, hardness and density are the values published in the table above.
Customization Options
- Size band. The published range is 0.2 mm to 2.5 mm, other sizes can be customized
- Grain shape. As-cut and conditioned forms are produced from the same wire stock across the cut wire ranges
- Grade. SUS304 · SUS302 · SUS202 · SUS201 · SUS430 · SUS410
- Packing. 25 kg/bag, 40 bags/pallet
Comparison With Other Products
| Product | Grain shape | Size available | Alloy |
|---|---|---|---|
| Stainless Steel Cut Wire Shot | As cut, cylindrical | 0.2 mm to 2.5 mm | Stainless steel |
| Cast Stainless Steel Shot | Round grain | 0.05 mm to 1.2 mm | Stainless steel |
| Stainless Steel Shot Conditioned | Conditioned, round | 0.2 mm to 2.5 mm | Stainless steel |
| Aluminum Cut Wire Shot | As cut, column form | 0.6 mm to 3.5 mm | Aluminum |
| Aluminum Round Shot | Conditioned, round | 0.6 mm to 3.5 mm | Aluminum |
Use Guide
- Check the substrate first. Ferrous media on non-ferrous parts leaves iron that rusts. This is a non-ferrous safe range.
- Match the grain size to the feature. Smaller grains give more impacts per kilogram and a finer finish. Larger grains carry more energy per impact.
- Match the shape to the job. As-cut cuts harder and reaches corners. Conditioned is used for peening and for a matte finish.
- Run a trial batch. Minimum order is 500 kg, which is low enough to prove the media on your own parts before volume.
- Store dry. Keep bags on the pallet and off the floor until the media goes into the machine.
Questions About Stainless Steel Cut Wire Shot
What sizes of stainless steel cut wire shot can you supply
0.2 mm to 2.5 mm, other sizes can be customized.
What is the minimum order and how is it packed
500 kg. Packing is 25 kg/bag, 40 bags/pallet.
How quickly can it ship
3 days. Supply ability is 500,000 kg/month.
What grain shape will I receive
As cut, cylindrical. It is produced by drawing into wire and cutting.
Can you confirm the chemistry before I order
Yes. The full chemical composition is published in the specification table on this page. Ask on WhatsApp or by email for the mill data against your order.
What payment terms apply
T/T.
