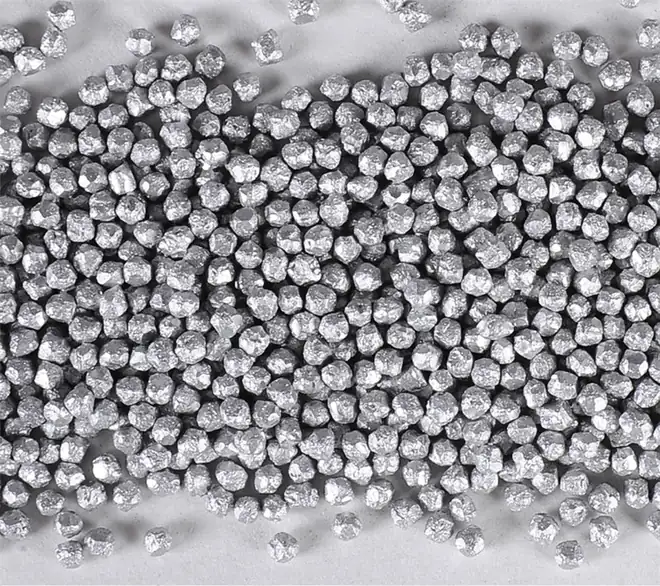

Aluminum Round Shot produced by Sukie Metal Abrasive, conditioned, round

Aluminum range

Aluminum Round Shot Conditioned

Name: Aluminum Round Shot
Brand: SUKIE
SKU: aluminum-round-shot

A1070 / A1050 / 5056 / 1100, 0.6 mm to 3.5 mm, 65-125 HV

Material

Aluminum

Size available

0.6 mm to 3.5 mm

Grain shape

Conditioned, round

Minimum order

500 kg

Request A Quote Request A Sample Talk To An Engineer Email Us

Have a drawing or a photo of the part? Send it on WhatsApp or attach it to an email and we will recommend the alloy and grain size.

At A Glance

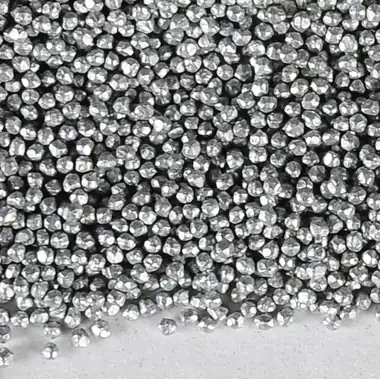

Aluminium round shot is the conditioned form of the same wire stock. The appearance is bright and the grain is rounded.

Grades. A1070 · A1050 · 5056 · 1100
Produced by. Drawing into wire, cutting and conditioning
Packing. 25 kg/bag, 40 bags/pallet
Lead time. 3 days
Standards. AMS 2431/8A, MIL-S-13165C, DIN 8201 and three more

Overview Benefits Applications Specifications Materials Manufacturing Quality Control Customization Comparison Use Guide FAQ Related

Product Overview

Aluminium round shot is the conditioned form of the same wire stock. The appearance is bright and the grain is rounded.

It applies in shot blasting treatment for aluminium, zinc or tenuous workpieces and gives the obvious white effect.

Key Benefits

Density of 2.7 g/cm³ and hardness of 65 to 125 HV give a gentle cutting action
Bright appearance with the obvious white effect the old site describes
Available as cut (column form) or conditioned (rounded) from the same wire stock

Application Scenarios

Where it is used

Aluminium workpieces
Zinc workpieces
Tenuous and thin-wall workpieces

Who it is for

Plants blasting aluminium and zinc parts that need an obvious white effect
Manufacturers of thin or delicate workpieces where heavier media would distort the part
Shops that must avoid any iron contamination on light alloy surfaces

Problems it solves

Steel media is too heavy for thin sections and marks or distorts the part
Iron pick-up on aluminium creates rust spots after the part leaves the line
Media that is too hard closes the surface instead of cleaning it

Technical Features And Specifications

Place of Origin: China
Brand Name: SUKIE
Material: Aluminum
Usage: Shot blasting, shot peening, surface treatment
Abrasive Grain Sizes: 0.6 mm to 3.5 mm

Minimum Order Quantity: 500 kg
Packaging Details: 25 kg/bag, 40 bags/pallet
Delivery Time: 3 days
Payment Terms: T/T
Supply Ability: 500,000 kg/month

Product	Grade	Al	Mg	Si	Cu	Zn	Mn	Density	Hardness	Test
Aluminum cut wire	A1070	99.7%	/	0.2% max	0.04% max	0.04% max	0.03% max	2.7 g/cm³	65-125 HV	Pass
Aluminum cut wire shot	A1050	99.5%	/	0.25% max	0.05%	0.05% max	0.05% max	—	—	Pass
Aluminum cut wire shot	5056	93-94%	4.5-5.6%	0.3% max	0.1%	0.1% max	0.2%	—	—	Pass
Aluminum cut wire shot	1100	99%	/	0.3% max	0.2% max	0.05% max	0.05% max	—	—	Pass

Chemical composition in %. Published by Sukie against the aluminium cut wire range.

Materials

This product sits in the Aluminum Shot and Cut Wire range. Grades held are A1070 · A1050 · 5056 · 1100, across a published size range of 0.6 mm to 3.5 mm. The chemical composition above is the specification Sukie publishes for the grade.

If your process specification names a grade that is not listed, send it over. Other sizes can be customized and grade availability is confirmed at quotation.

Manufacturing Process

Aluminum Round Shot is produced by drawing into wire, cutting and conditioning, giving a conditioned, round grain.

Quality Control And Certifications

All Sukie products are strictly executed to AMS 2431/8A, MIL-S-13165C, DIN 8201, VDFI 8001, SAE J441, DQML 001-2008 and produced with the most advanced and developed equipment.

The four advantages Sukie states for its shot are longer durability, uniform size, uniform hardness and less dust. Chemistry, hardness and density are the values published in the table above.

See Quality And Standards

Customization Options

Size band. The published range is 0.6 mm to 3.5 mm, other sizes can be customized
Grain shape. As-cut and conditioned forms are produced from the same wire stock across the cut wire ranges
Grade. A1070 · A1050 · 5056 · 1100
Packing. 25 kg/bag, 40 bags/pallet

Get A Custom Solution

Comparison With Other Products

Product	Grain shape	Size available	Alloy
Aluminum Round Shot	Conditioned, round	0.6 mm to 3.5 mm	Aluminum
Aluminum Cut Wire Shot	As cut, column form	0.6 mm to 3.5 mm	Aluminum
Cast Stainless Steel Shot	Round grain	0.05 mm to 1.2 mm	Stainless steel
Stainless Steel Shot Conditioned	Conditioned, round	0.2 mm to 2.5 mm	Stainless steel
Stainless Steel Cut Wire Shot	As cut, cylindrical	0.2 mm to 2.5 mm	Stainless steel

Use Guide

Check the substrate first. Ferrous media on non-ferrous parts leaves iron that rusts. This is a non-ferrous safe range.
Match the grain size to the feature. Smaller grains give more impacts per kilogram and a finer finish. Larger grains carry more energy per impact.
Match the shape to the job. As-cut cuts harder and reaches corners. Conditioned is used for peening and for a matte finish.
Run a trial batch. Minimum order is 500 kg, which is low enough to prove the media on your own parts before volume.
Store dry. Keep bags on the pallet and off the floor until the media goes into the machine.

Shot Size Selection Guide

Questions About Aluminum Round Shot

What sizes of aluminum round shot can you supply

0.6 mm to 3.5 mm, other sizes can be customized.

What is the minimum order and how is it packed

500 kg. Packing is 25 kg/bag, 40 bags/pallet.

How quickly can it ship

3 days. Supply ability is 500,000 kg/month.

What grain shape will I receive

Conditioned, round. It is produced by drawing into wire, cutting and conditioning.

Can you confirm the chemistry before I order

Yes. The full chemical composition is published in the specification table on this page. Ask on WhatsApp or by email for the mill data against your order.

What payment terms apply

T/T.

Get A Price For Aluminum Round Shot

Send the grain size, the substrate and your monthly tonnage. We will confirm the grade and come back with a quote.

Minimum order from 500 kg. Packed 25 kg per bag, 40 bags per pallet. Quotes in USD, terms T/T.
