Cast Stainless Steel Shot
Atomized, 0.05 mm to 1.2 mm, SUS304 / 302 / 202 / 201 / 430
Have a drawing or a photo of the part? Send it on WhatsApp or attach it to an email and we will recommend the alloy and grain size.
At A Glance

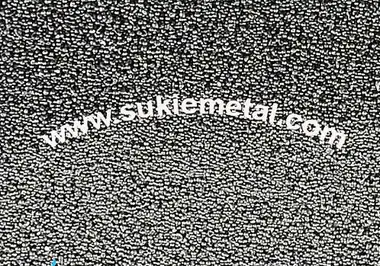

Cast stainless steel shot is produced by an atomizing process. The appearance is bright, with no rust and a round grain.
- Grades. SUS304 · SUS302 · SUS202 · SUS201 · SUS430 · SUS410
- Produced by. Atomizing
- Packing. 25 kg/bag, 40 bags/pallet
- Lead time. 1-7 days
- Standards. AMS 2431/8A, MIL-S-13165C, DIN 8201 and three more
Product Overview
Cast stainless steel shot is produced by an atomizing process. The appearance is bright, with no rust and a round grain.
It is widely used for shot blasting of aluminium alloy casting, zinc alloy casting and other non-ferrous metal casting. It makes the casting shiny and highlights the metal colour, with no rusting and no discolouration. Durability is long and wear on the equipment is low. The surface is bright after processing with this product, so no further acid treatment is required.
Key Benefits
- Abrasion resistance is 3 to 5 times greater than cast steel shot, which reduces producing cost
- No rust and no discolouration on the treated surface, so acid treatment and rust removal are not needed
- Matte finish that highlights the natural metal colour
Application Scenarios
Where it is used
- Aluminium alloy castings
- Zinc alloy castings
- Other non-ferrous metal castings
Who it is for
- Aluminium and zinc die casters who cannot accept iron pick-up on the casting surface
- Stainless steel fabricators finishing sheet, tube, vessel and structural work
- Automotive and motorcycle plants blasting non-ferrous components before coating
- Foundries and metallurgy machinery shops running continuous blast wheels
Problems it solves
- Carbon steel media leaves iron on non-ferrous parts, which rusts and forces an acid pickling step
- Cast media with pores and cracks breaks down early and fills the separator with fines
- Inconsistent grain size gives an uneven finish across a batch
Technical Features And Specifications
- Place of Origin
- China
- Brand Name
- SUKIE
- Certification
- SGS
- Model Number
- 0.1-2.0 mm
- Minimum Order Quantity
- 500 kg
- Packaging Details
- 25 kg/bag, 40 bags/pallet
- Delivery Time
- 1-7 days
- Payment Terms
- T/T, Western Union
- Supply Ability
- 1,000,000 kg
| Product | Grade | Hardness | C | Si | Mn | Ni | Cr | Density | Size available |
|---|---|---|---|---|---|---|---|---|---|
| Stainless steel shot (SUS304) | Austenite | — | 0.08% max | 1.0% max | 2.0% max | 7.8-10% | 16-18 | 7.4 g/cm³ | 0.05-1.2 mm |
| Stainless steel shot (SUS302) | Austenite | — | 0.15% max | 1.0% max | 2.0% max | 5-6% | 16-18 | 7.4 g/cm³ | 0.05-1.2 mm |
| Stainless steel shot (SUS202) | Austenite | — | 0.15% max | 1.0% max | 2.0% max | 4-5% | 16-18 | 7.4 g/cm³ | 0.1-0.4 mm |
| Stainless steel shot (SUS201) | Austenite | — | 0.15% max | 1.0% max | 2.0% max | 3-4% | 16-18 | 7.4 g/cm³ | 0.05-1.2 mm |
| Stainless steel shot (SUS430) | Austenite | — | 0.12% max | 0.75% max | 1.2% | / | 15-16 | 7.4 g/cm³ | 0.05-1.2 mm |
Chemical composition in %. Grade and hardness columns as published by Sukie.
Materials
This product sits in the Stainless Steel Shot and Cut Wire range. Grades held are SUS304 · SUS302 · SUS202 · SUS201 · SUS430 · SUS410, across a published size range of 0.05 mm to 2.5 mm. The chemical composition above is the specification Sukie publishes for the grade.
If your process specification names a grade that is not listed, send it over. Other sizes can be customized and grade availability is confirmed at quotation.
Manufacturing Process
Cast Stainless Steel Shot is produced by atomizing, giving a round grain grain.
Quality Control And Certifications
All Sukie products are strictly executed to AMS 2431/8A, MIL-S-13165C, DIN 8201, VDFI 8001, SAE J441, DQML 001-2008 and produced with the most advanced and developed equipment.
Certification listed for this product is SGS.
The four advantages Sukie states for its shot are longer durability, uniform size, uniform hardness and less dust. Chemistry, hardness and density are the values published in the table above.
Customization Options
- Size band. The published range is 0.05 mm to 1.2 mm, other sizes can be customized
- Grain shape. As-cut and conditioned forms are produced from the same wire stock across the cut wire ranges
- Grade. SUS304 · SUS302 · SUS202 · SUS201 · SUS430 · SUS410
- Packing. 25 kg/bag, 40 bags/pallet
Comparison With Other Products
| Product | Grain shape | Size available | Alloy |
|---|---|---|---|
| Cast Stainless Steel Shot | Round grain | 0.05 mm to 1.2 mm | Stainless steel |
| Stainless Steel Shot Conditioned | Conditioned, round | 0.2 mm to 2.5 mm | Stainless steel |
| Stainless Steel Cut Wire Shot | As cut, cylindrical | 0.2 mm to 2.5 mm | Stainless steel |
| Aluminum Cut Wire Shot | As cut, column form | 0.6 mm to 3.5 mm | Aluminum |
| Aluminum Round Shot | Conditioned, round | 0.6 mm to 3.5 mm | Aluminum |
Use Guide
- Check the substrate first. Ferrous media on non-ferrous parts leaves iron that rusts. This is a non-ferrous safe range.
- Match the grain size to the feature. Smaller grains give more impacts per kilogram and a finer finish. Larger grains carry more energy per impact.
- Match the shape to the job. As-cut cuts harder and reaches corners. Conditioned is used for peening and for a matte finish.
- Run a trial batch. Minimum order is 500 kg, which is low enough to prove the media on your own parts before volume.
- Store dry. Keep bags on the pallet and off the floor until the media goes into the machine.
Questions About Cast Stainless Steel Shot
What sizes of cast stainless steel shot can you supply
0.05 mm to 1.2 mm, other sizes can be customized.
What is the minimum order and how is it packed
500 kg. Packing is 25 kg/bag, 40 bags/pallet.
How quickly can it ship
1-7 days. Supply ability is 1,000,000 kg.
What grain shape will I receive
Round grain. It is produced by atomizing.
Can you confirm the chemistry before I order
Yes. The full chemical composition is published in the specification table on this page. Ask on WhatsApp or by email for the mill data against your order.
What payment terms apply
T/T, Western Union.
