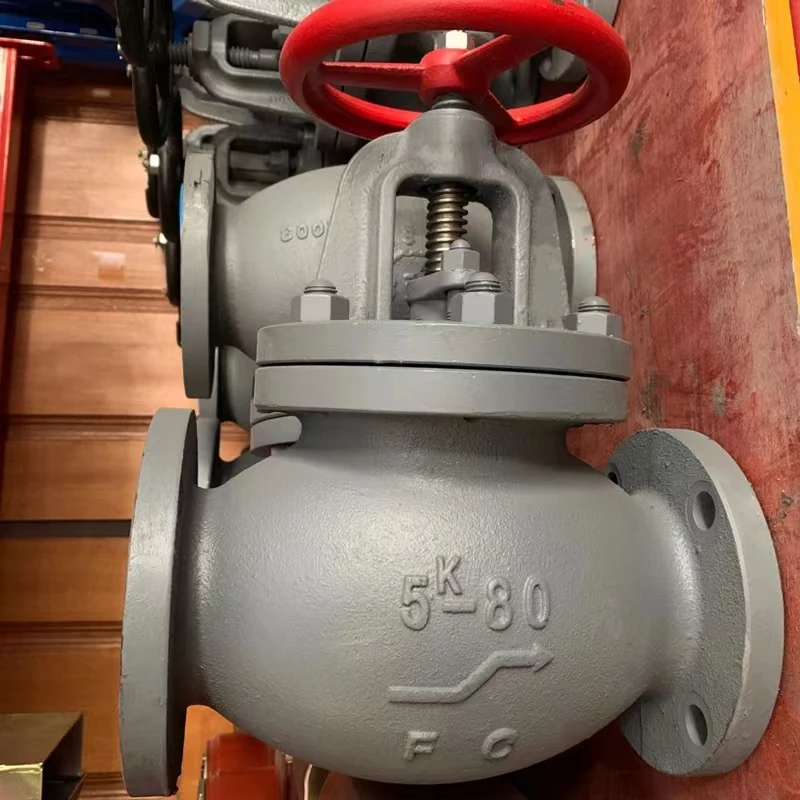

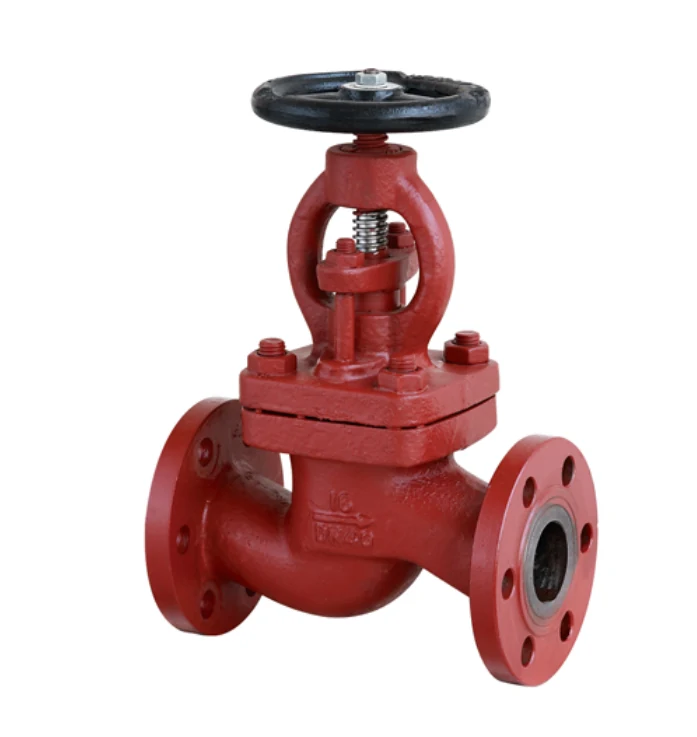

Marine Bronze Globe Valve/Stainless Steel/Copper Electric/Hydraulic/Hand Stop Valve in Ship/Vessel/Boat

Marine bronze, stainless steel and copper stop valves in straight and angle pattern, hand, electric or hydraulic operated.

Marine Valves

What this product does

The stop valve is the workhorse of a ship's piping system and the one most often specified badly: straight pattern where an angle would have removed an elbow, or bronze where the line carries seawater under pressure. We build both patterns in bronze, copper, stainless steel and steel, in hand, electric or hydraulic operation, to sizes from DN65 to DN200 and beyond. Every valve is polished and tested before it leaves the factory.

Selection notes

  • Straight and angle pattern stop valves from the same supplier and drawing standard
  • Bronze, copper, stainless steel or steel body against the medium in the line
  • Hand, electric or hydraulic operation; customised sizes such as DN65, DN100, DN200

Specification

MaterialBronze&Copper&Stainless Steel/Steel
SizeCustomized(DN65,DN100,DN200...etc)
CertificateABS, BV, LR, RINA, DNV, CCS, etc...
PackageStandard Exporting Wooden Box Packing, easy for forklift to transport.
AccessoriesRubber Ring&Covers
CategoryMarine Valves
WarrantyOne year, with installation instructions and spare parts support afterwards
Lead timeConfirmed per order with the quotation

Published technical data

Reproduced from the manufacturer's own product data for this item. Figures are confirmed against your order before production.

Marine valves Bronze Globe Valve/Stainless Steel/Copper Electric/Hydraulic/Hand Stop Valve in Ship/Vessel/Boat The Marine Valves are carefully polishing and testing before leaving factory to ensure the performance. Copper&Bronze/Stainless Steel/Steel material has longer service life for your pipes&vessel. The Marine Globe Valve is carefully polishing and testing before leaving factory to ensure the performance. Copper&Bronze/Stainless Steel/Steel material has longer service life for your pipes&vessel. A shut-off valve refers to a valve where the closing element (disc) moves along the centerline of the valve seat. According to the movement of the valve disc, the change in the valve seat opening is directly proportional to the valve disc stroke. Due to the relatively short opening or closing stroke of the valve stem and the highly reliable cut-off function, as well as the proportional relationship between the change of the valve seat opening and the stroke of the valve disc, this type of valve is very suitable for regulating flow. Therefore, this type of valve is very suitable for use as a shut-off or regulating and throttling device. Advantages: (l) During the opening and closing process, the friction between the valve disc and the valve body sealing surface is smaller than that of the gate valve, so it is wear-resistant (2) The opening height is generally only 1/4 of the diamet

Ordering and documentation

Name the classification society with your enquiry and the certificate is applied for at the same time as production. Every unit is tested before dispatch and the test report and video can be supplied before shipment. Warranty is one year, with installation instructions and spare parts support afterwards.

Send the vessel data, get a specified quotation

Tell us the vessel, the duty and the classification society. We come back with the specification, the certificate list and the packing method — not just a price.
