24V Marine Search Light 1000W 2000W for boats TG8, TG9, TG16A, TG16B Reflector Bulb Steel Spotlight

24V marine searchlight, 1000W and 2000W, TG8, TG9, TG16A and TG16B types with reflector bulb and steel body.

Marine Navigation Lights and Electrics

What this product does

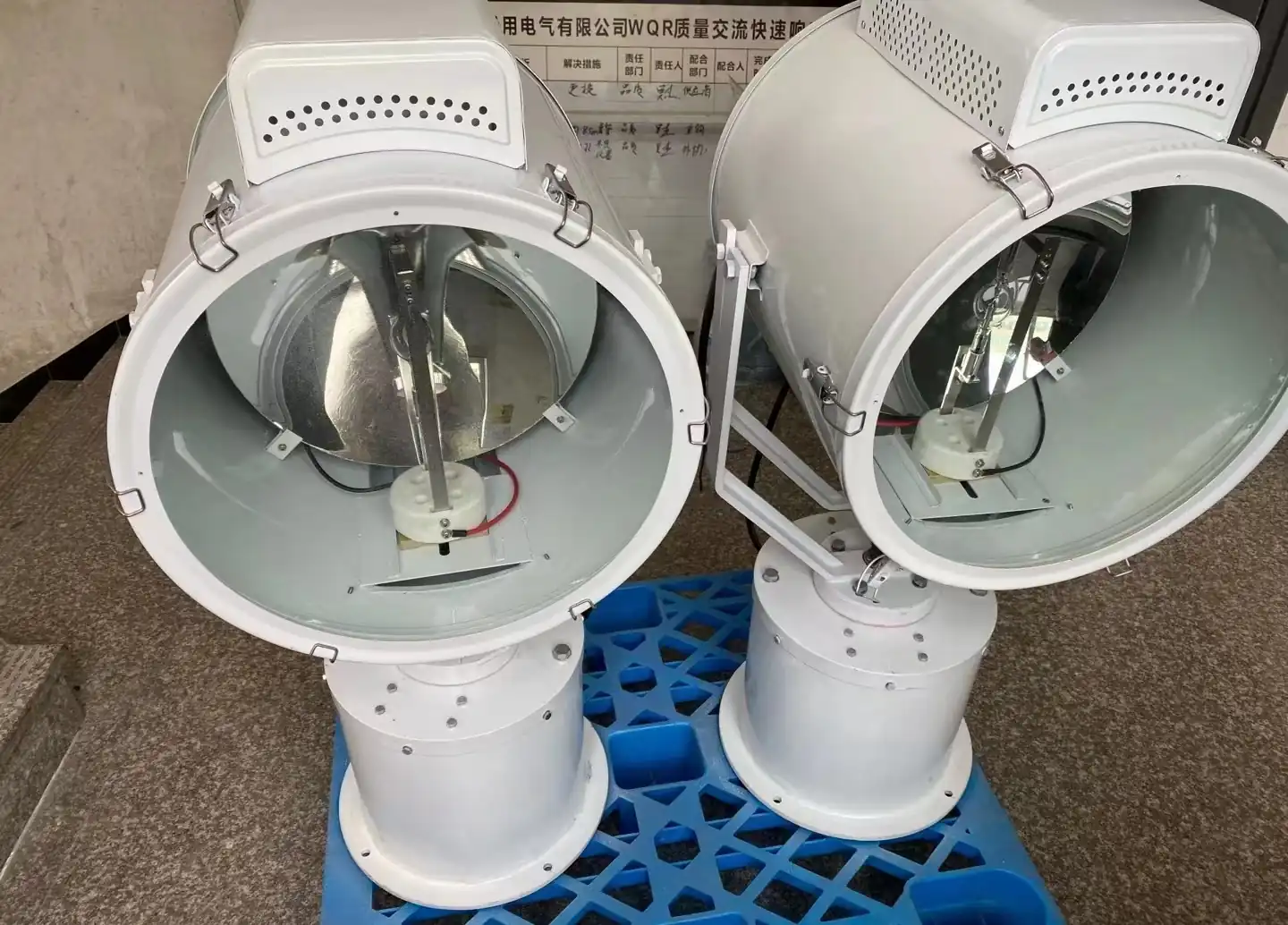

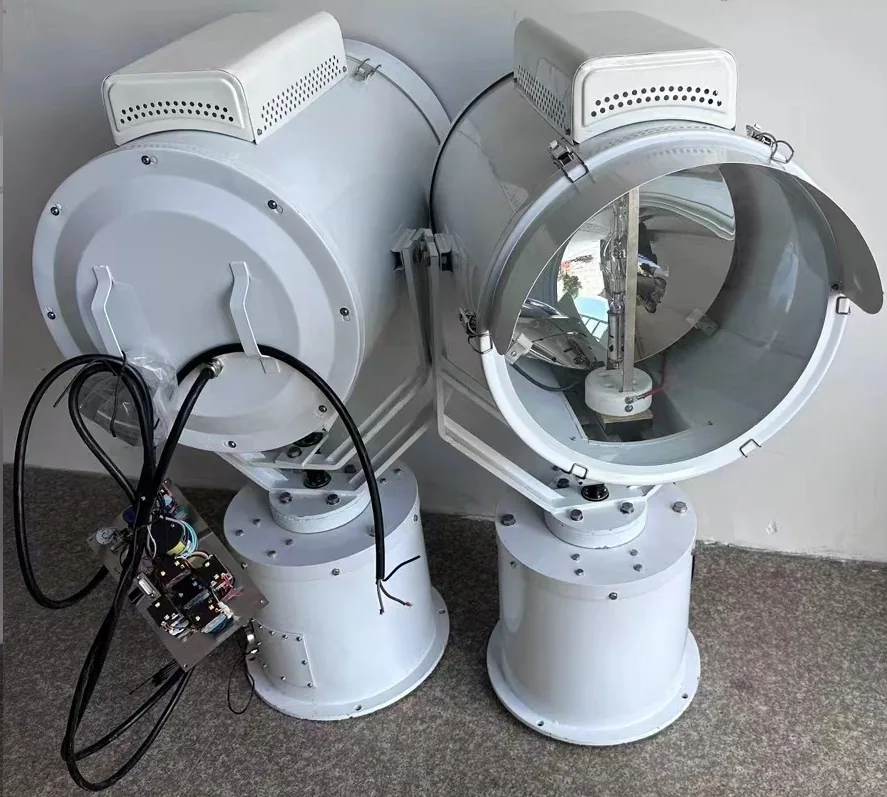

The TZ1 night navigation searchlight is a spherical mercury source fitting with its own ballast and trigger, a spherical tempered glass reflector and a focal length adjustment so the beam can be set after installation. Remote control operation lets the bridge train the light without anyone going onto an exposed deck at night. Supplied at 24V in 1000W and 2000W ratings, in the TG8, TG9, TG16A and TG16B types, with CCS, BV, DNV-GL and LR certificates.

Selection notes

  • 1000W and 2000W ratings at 24V, TG8, TG9, TG16A and TG16B types
  • Remote control training from the bridge, with focal length adjustment on installation
  • Spherical tempered glass reflector with dedicated ballast and trigger; 58.5kg

Specification

CategoryMarine Navigation Lights and Electrics
WarrantyOne year, with installation instructions and spare parts support afterwards
Lead timeConfirmed per order with the quotation

Published technical data

Reproduced from the manufacturer's own product data for this item. Figures are confirmed against your order before production.

Marine Search Light 24V 1000W 2000W for boats TG8, TG9, TG16A, TG16B Reflector Bulb Steel Spotlight, with CCS, BV, DNV-GL, LR certificates TZ1 Ship Night Navigation Searchlight Remote Control Searchlight TZ1 Searchlight is a spherical mercury source light fixture equipped with a dedicated ballast and trigger. It is equipping with a spherical tempered glass reflector and a focal length adjustment installation device, while can flexibly adjust the focal length up and down, front and back, It has the characteristics of high luminous intensity and long lighting distance, especially suitable for long-distance lighting and target search such as ship night navigation, lifesaving, and warning. While TZ1 is a cast aluminum and steel shell, with a ball plate installed on the base and a lifting device. It can manually control the light lift to rotate 180 degrees horizontally and pitch 30 degrees TZ1 Marine Search Light is a spherical mercury lamp with a dedicated ballast and trigger. It is equipping with a spherical tempered glass reflector and a focal length adjustment installation device, while can flexibly adjust the focal length up and down, front and back, It has the characteristics of high luminous intensity and long lighting distance, especially suitable for long-distance lighting and target search such as ship night navigation, lifesaving, and warning. Marine Search Light is a cas

Ordering and documentation

Name the classification society with your enquiry and the certificate is applied for at the same time as production. Every unit is tested before dispatch and the test report and video can be supplied before shipment. Warranty is one year, with installation instructions and spare parts support afterwards.

Send the vessel data, get a specified quotation

Tell us the vessel, the duty and the classification society. We come back with the specification, the certificate list and the packing method — not just a price.
