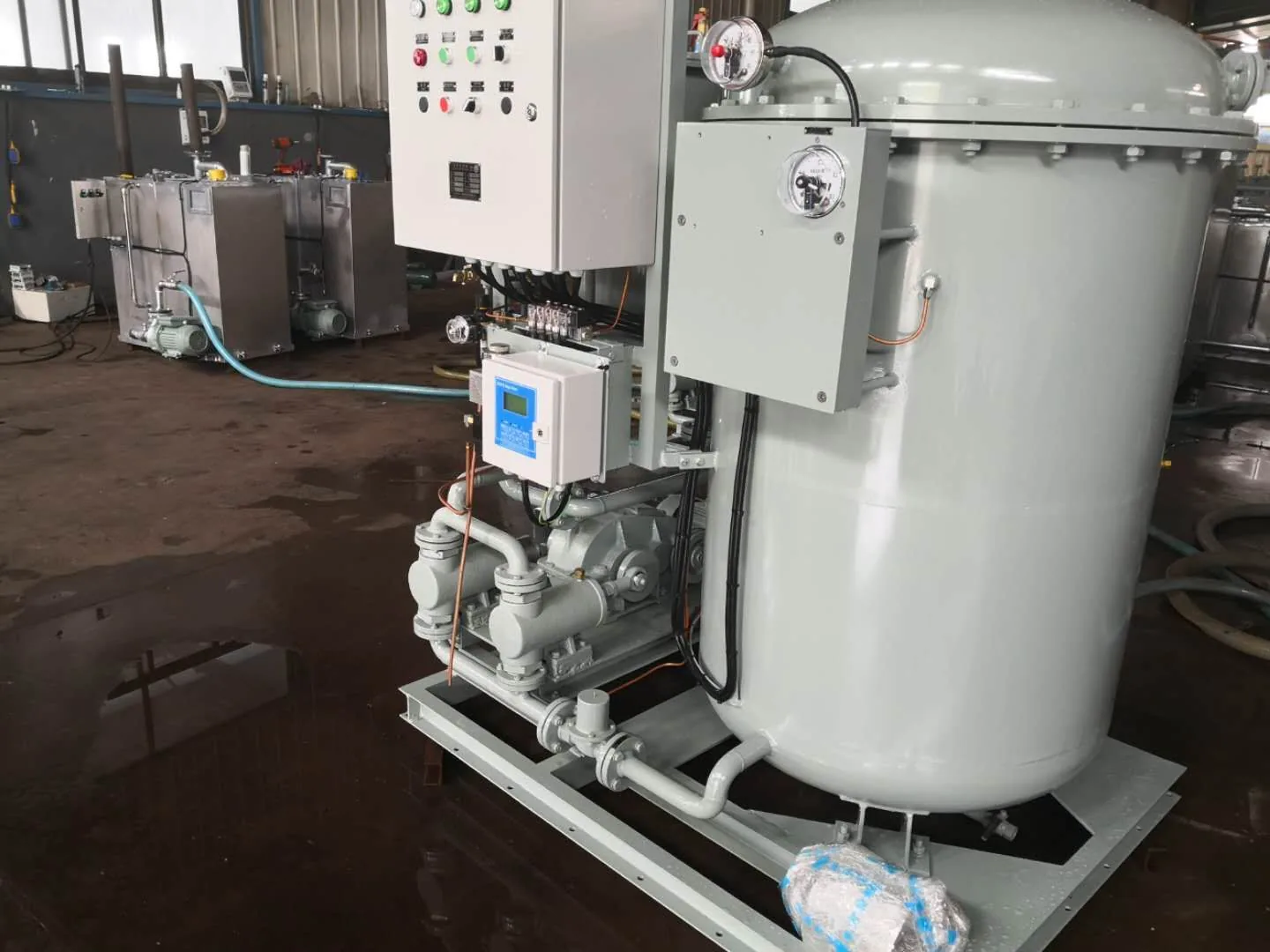

Marine oil water separator for ship/vessel

Marine oil water separator for ship using marine oil water separator on board ship, for big/large ships!! with Capacity of 0.25m/0.5m/1m/1.5m/2.0m/2.5m/3m/4m/5m/h The device can be using to treat the bilge oil sewage of ship engine room to meet the requirements of IMO mepc.107 (49). The device adopts the principle of one-stage inclined plate gravity and coalescence separation two-stage fiber filter three-stage ultrafiltration membrane osmotic separation, so that the oily bilge water can meet the discharge standard of IMO mepc.107 (49). Marine oil water separator will be testing before leaving factory to ensure the performance. Working Capacity is available for choosing and cutomizing. We will give advice to help the machine to connect with your ship perfectly!!! What's more, the machine is providing necessary spare parts and electric control panel. Every equipment is packing by solid wooden case to avoid damage during sea/air transportation. Type Technical Specifications YWC 0.25 0.50 1.00 1.50 2.00 2.50 3.00 4.00 5.00 Rated capacity (m/h) 0.25 0.50 1.00 1.50 2.00 2.50 3.00 4.00 5.00 Oil content of the discharged water >15ppm Power of the electric heater (kw) 3 3 3 6 6 6 6 12 12 Electrical System AC 380V, 50Hz3(p/AC415V50Hz> 3(p/AC 44060Hz3(p/AC480V60HZ 3(p Power of the electric motor 0.37k w 0.55k w 0.75k w 1.1 kw 1.1 kw 1.5kw 1.5kw 2.2kw 2.2kw Suction head >6m-H2O Pressure of
