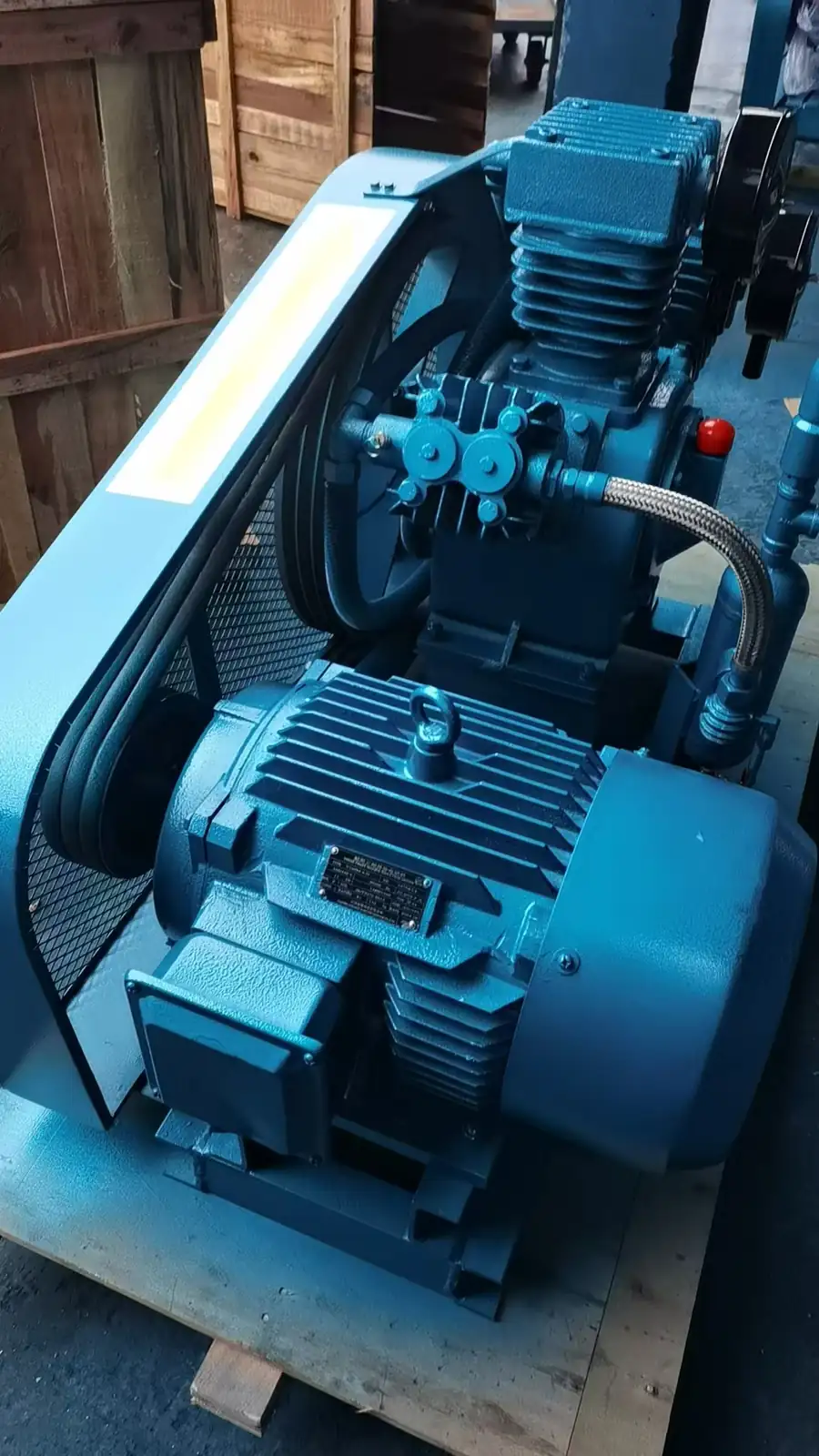

Marine emergency low noise air cooling low pressure air compressor

Low pressure air-cooled emergency compressor with reduced running noise, for emergency air supply in quiet machinery spaces.

Marine Air Compressors

What this product does

Emergency compressors are often installed outside the main machinery space, sometimes adjacent to accommodation or a control room, because class wants them independent of the main air system. That location makes noise a real constraint rather than a nice-to-have. This low pressure air-cooled unit is specified for that installation: independent, air cooled so it needs no service water, and quiet enough to sit near manned spaces.

Selection notes

  • Low pressure duty for emergency and service air
  • Air cooled and independent, suitable for installation outside the main machinery space
  • Reduced running noise for locations near control rooms or accommodation

Specification

PackageStandard Wooden Box, easy for forklift to move
AccessoriesAll necessary accessories like Pressure Adjust Valve, Pistons...etc
CertificateCCS, BV, LR, DNV...etc
CategoryMarine Air Compressors
WarrantyOne year, with installation instructions and spare parts support afterwards
Lead timeConfirmed per order with the quotation

Published technical data

Reproduced from the manufacturer's own product data for this item. Figures are confirmed against your order before production.

Marine air compressor in ship based on all pressure and flow With CCS, BV, LR, RINA, air compressor marine type certificate. We can deliver cargo to all over the world! All pressure and displacement&flow(Mpa&Psi) can customize according to your request! Meanwhile, we will give advice on the installation.To help it connect with your vessel. Every equipment will be testing before leaving factory to ensure the performance. What's more, Every equipment is providing necessary spare parts for repair. Every equipment is packing by solid wooden case to avoid damage during sea/air transportation. Several Samples for reference and choosing, if any other request please advise: 1. Type Displacement Capacity Rated Pressure Speed Motor Power Weight m3/h m3/min Mpa r/min kw KG Double row air cooled piston air compressor 20.4 0.34 3.0 600 5.5 210 2. Type Displacement Capacity Rated Pressure Speed Motor Power Weight m3/h m3/min Mpa r/min kw KG Double row air cooled piston air compressor 14.5 0.24 3.0 1200 4 160 18.5 0.308 1500 5.5 180 22 0.367 1800 5.5 180 3. Type Displacement Capacity Rated Pressure Speed Motor Power Weight m3/h m3/min Mpa r/min kw KG V-Double row air cooled piston air compressor 30 0.5 3.0 1200 7.5 350-360 36 0.6 1500 11 44 0.73 1800 11 4. Type Displacement Capacity Rated Pressure Speed Motor Power Weight m3/h m3/min Mpa r/min kw KG V type air cooled 60 1.0 1.0 650 7.5 310 Ai

Ordering and documentation

Name the classification society with your enquiry and the certificate is applied for at the same time as production. Every unit is tested before dispatch and the test report and video can be supplied before shipment. Warranty is one year, with installation instructions and spare parts support afterwards.

Send the vessel data, get a specified quotation

Tell us the vessel, the duty and the classification society. We come back with the specification, the certificate list and the packing method — not just a price.
