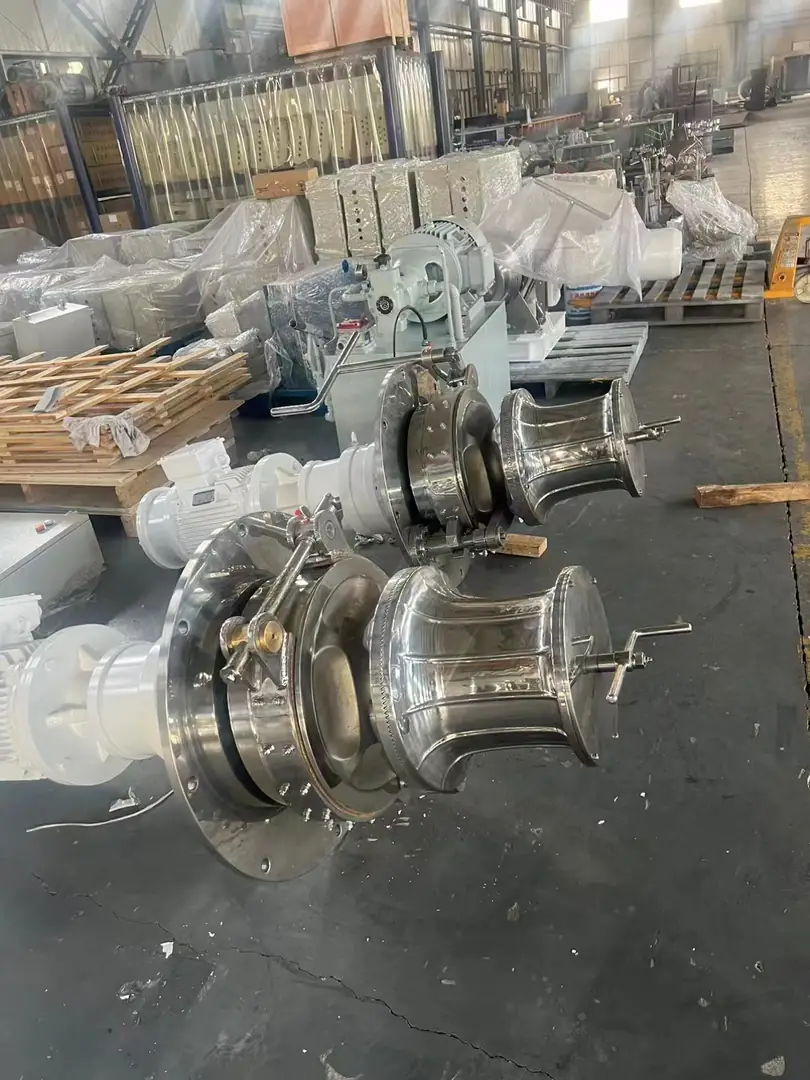

Stainless Steel 316L Electric Vertical Anchor Winch Windlass for Patrol Boat/Yacht
Stainless steel 316L electric vertical anchor winch windlass for patrol boats and yachts, built for frequent anchor work.
What this product does
Patrol craft anchor and weigh far more often than a cargo vessel, so the gearbox and brake on this machine are the parts that decide its service life rather than the peak rated load. It is a vertical electric windlass in stainless steel 316L with double motor drive, so an overload that stops one motor leaves the other able to recover the anchor. Chain range is 12.5mm to 60mm AM-2.
Selection notes
- Built for frequent anchoring cycles on patrol craft and yachts
- Double motor electric drive at 220V/380V, 50Hz or 60Hz
- Stainless steel 316L, single or double wildcat with removable drum
Specification
| Material | Stainless Steel 316L |
|---|---|
| Model | Double Wildcat&Double Wrapping End(Drum) |
| Power | Electric(220V/380V) |
| Certificate | ABS, BV, LR, RINA, DNV, CCS, etc... |
| Package | Standard Exporting Wooden Box Packing, easy for forklift to transport. |
| Accessories | All neccessory Accessories of ELectric System like control Box |
| Category | Ship Deck Machinery |
| Warranty | One year, with installation instructions and spare parts support afterwards |
| Lead time | Confirmed per order with the quotation |
Published technical data
Reproduced from the manufacturer's own product data for this item. Figures are confirmed against your order before production.
Ordering and documentation
Name the classification society with your enquiry and the certificate is applied for at the same time as production. Every unit is tested before dispatch and the test report and video can be supplied before shipment. Warranty is one year, with installation instructions and spare parts support afterwards.
