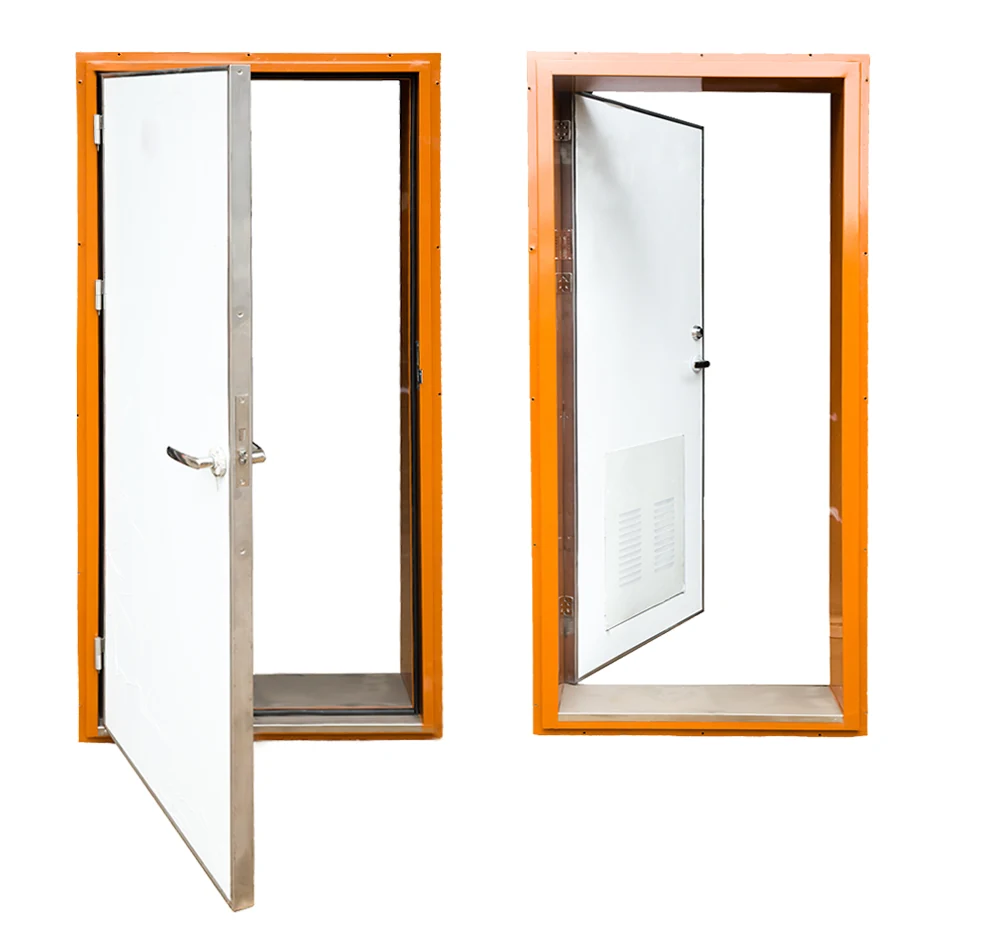

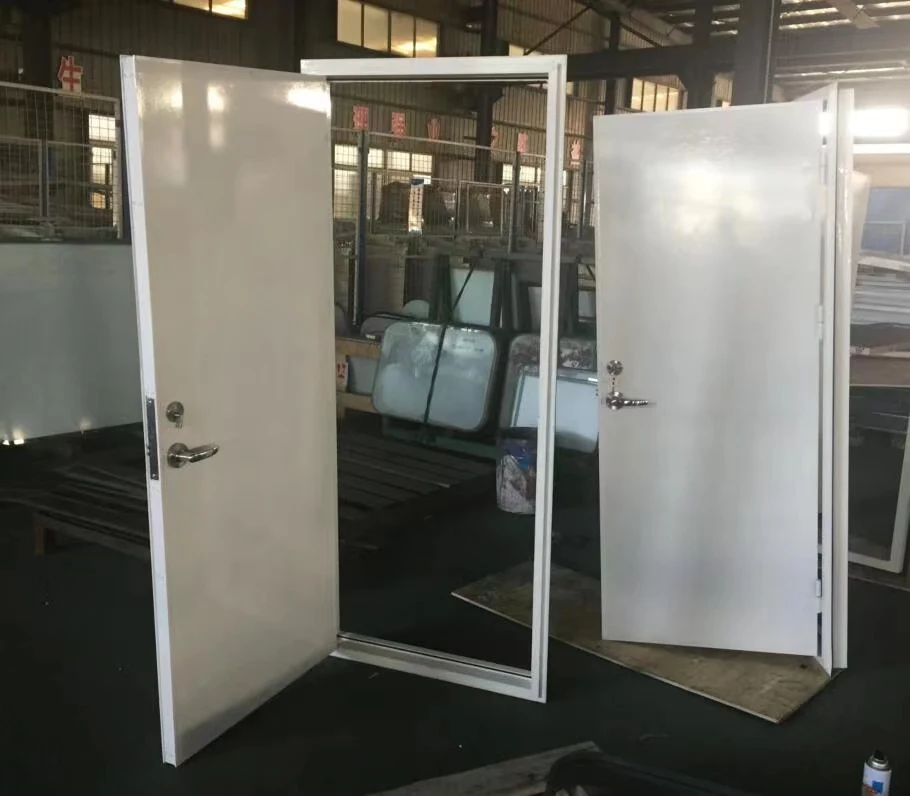

CCS Certificated Ship Interior Cabin Aluminum B15 Fireproof Door

CCS certificated B15 fireproof door for ship interior cabins, sized and handed to your accommodation general arrangement.

Ship Outfittings

What this product does

Accommodation doors are ordered by the dozen and every one has a hand, a leaf size and a position on the fire control plan. This B15 cabin door is made to your general arrangement so the yard receives doors that are already correct for their openings instead of a pallet of identical blanks. CCS certification covers the construction, and the A30, A60, B0 and C grades are available on the same hardware.

Selection notes

  • Made to the leaf size and hand of each opening on your GA drawing
  • CCS certificated B15 construction for interior cabin divisions
  • A30, A60, B0 and C grades available on matching hardware

Specification

PackageNude Pallet Pakcage
CertificateABS, CCS, BV, DNV, LR...etc.
CategoryShip Outfittings
WarrantyOne year, with installation instructions and spare parts support afterwards
Lead timeConfirmed per order with the quotation

Published technical data

Reproduced from the manufacturer's own product data for this item. Figures are confirmed against your order before production.

B15 Fireproof Door A30/A60/B15/C Marine Door on Ship/Vessel, with CCS, BV, LR, DNV, ABS, RINAetc certificate What's more, We can customize the B15 Fireproof Door as your wanted. By the way,Steel Material, easy to weld with your ship hull. Ship A60 fire proof represents that the insulation material can withstand a 60 minute fire on one side and a temperature not exceeding 150 degrees Celsius on the other side, without emitting harmful smoke. Insulate with approved non combustible materials to ensure that the average temperature of the backfire side does not increase by more than 140 C from the initial temperature during the following periods, and the temperature at any point, including any joints, does not increase by more than 180 C from the initial temperature: A-60 level 60 min A-30 level 30 minutes Level 'A-15' 15 minutes A-0 level 0 min In addition, All products will be testing before leaving factory to ensure the watertight&Weathertight capacity. In addition,Marine fire door includes fire door frame and fire door panel, What's more,a).The fireproof side is hinging with the fireproof door frame side, In addition,b).There's a door lock and a handle on the other side. What's more,,c).The utility model is characterizing in that the fire door plate has an escape port, and the escape port has a small door plate of wind grid type. What's more, One side of the small gate plate is

Ordering and documentation

Name the classification society with your enquiry and the certificate is applied for at the same time as production. Every unit is tested before dispatch and the test report and video can be supplied before shipment. Warranty is one year, with installation instructions and spare parts support afterwards.

Send the vessel data, get a specified quotation

Tell us the vessel, the duty and the classification society. We come back with the specification, the certificate list and the packing method — not just a price.
