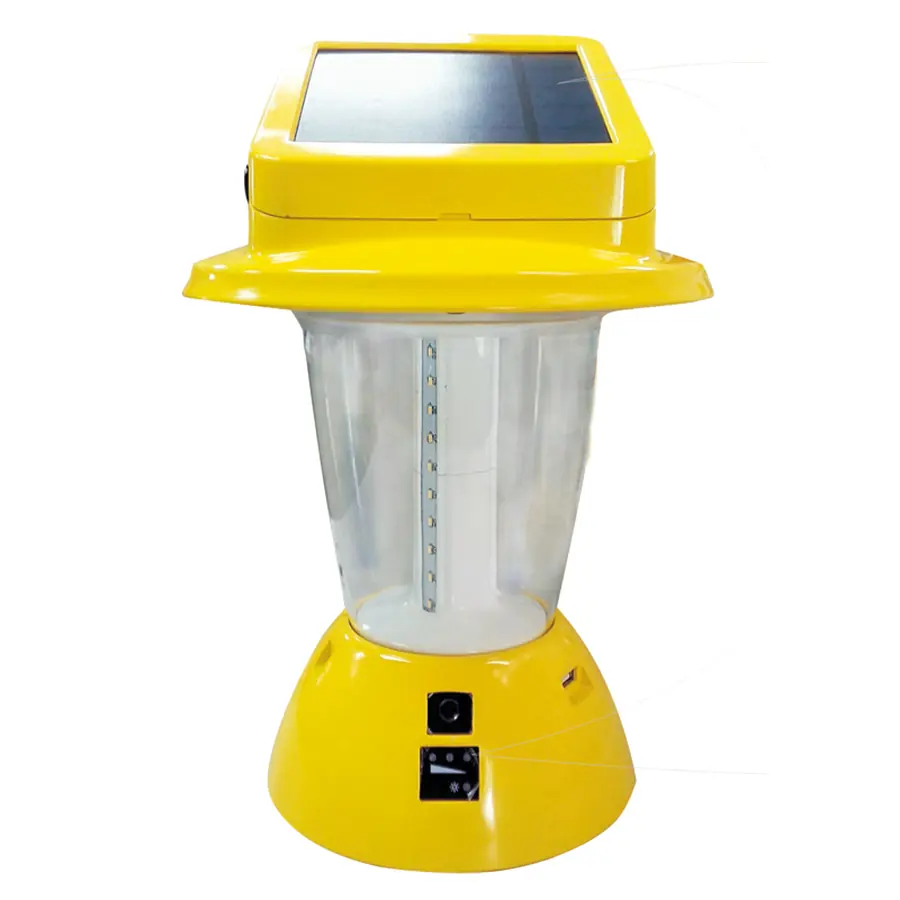

SunMax Camping Solar Lantern
Model SunMax
A 360 degree camping lantern charged by solar or AC, running up to 22 hours at low brightness with a 50,000 hour LED.
Drawings and artwork for OEM work can be sent to [email protected] or over WhatsApp. We do not use web forms.
Product Overview
A 360 degree camping lantern charged by solar or AC, running up to 22 hours at low brightness with a 50,000 hour LED.
Portable solar lanterns with USB phone charging, dimmable output and lithium or LiFePO4 batteries, built for households with no grid connection.
Key Benefits
- 3 levels brightness
- 360-degree illumination
- Charged by solar and electricity
- Full charged by solar 9 hrs, or by AC 2 hrs
- 22 hrs lighting for lower brightness after full charge
- Up to 8 hrs lighting for high brightness after full charge
- 3 times brighter than kerosene lamp
- Multiple setting handle
- 1 year limited warranty, expected 3 year battery life
- High-efficiency LED with 50,000 hour life
- Safe, no fire hazard
- Overcharge protection
Who It Is For
Distributors and last-mile retailers selling single-light products, relief and rural-electrification buyers, and camping or fishing retailers.
Problems It Solves
- Kerosene and candles cost money every week and give poor light for reading and cooking.
- Households with no grid connection still need to charge a phone.
- Cheap lanterns fail within a season because the battery and the charge control are not matched.
Application Scenarios
- Camping and outdoor use
- Emergency lighting
- Household lighting
Technical Features
- 3 levels brightness
- 360-degree illumination
- Charged by solar and electricity
- Full charged by solar 9 hrs, or by AC 2 hrs
- 22 hrs lighting for lower brightness after full charge
- Up to 8 hrs lighting for high brightness after full charge
- 3 times brighter than kerosene lamp
- Multiple setting handle
- 1 year limited warranty, expected 3 year battery life
- High-efficiency LED with 50,000 hour life
- Safe, no fire hazard
- Overcharge protection
Specifications
| Model | SunMax |
|---|---|
| Light source | LED, 30 pcs LED, white |
| Solar panel | 1.6W / 5V |
| Battery type | 2400mAh / 3.2V |
| Lamp power | 0.5W |
| Lamp luminous flux | 45 lm |
| Lamp luminous efficiency | 85 lm/w |
| CRI | 75 |
| Colour temperature | Pure white |
| IP rating | IP54 |
| Body material | ABS + PC |
| Colour | Yellow, blue, red optional |
| Lighting period | More than 12 hours |
| Product size | 34 x 21 x 21 cm |
| Certification | CE, RoHS |
| Place of origin | Guangdong, China |
| Supply ability | 100000 pieces per month |
Figures are the manufacturer specification for this model. Anything not listed here is confirmed in writing with the quotation.
Materials
| Solar panel | 1.6W / 5V |
|---|---|
| Battery type | 2400mAh / 3.2V |
| Body material | ABS + PC |
Quality Control
- Micro-programmed control units on the lighting products protect against over voltage, over current, over charge, over discharge and short circuit.
- Solar panels are quoted at a 5 to 10 year lifespan and LED bulbs at 50,000 hours.
- Products are stated to meet ISO, SGS, BV, COC, PVOC, SONCAP, SASO, CIQ, CE and RoHS requirements.
- The company's own lamp development passed the Indonesian laboratory test before volume supply.
- Certified models are tested by third parties: VeraSol certification on the SunAwada, VeraSol testing on the SunAce-Li, and the Lighting Global quality standards on the Lamp2Torch, SunAce II and SunBase.
How It Is Manufactured
Tooling and moulding
Housings start from our own moulds. The company built its moulding capability when it developed the Indonesian SEHEN lamp, and that is still where a new housing begins.
Component sourcing and incoming check
Cells, panels, LEDs and control boards are sourced and checked before they reach the line. Cost engineering happens here, not by thinning the specification later.
Board and wiring assembly
Charge control, protection and, on PAYG models, the token firmware are fitted and wired to the lamp and output ports.
Line assembly
Housings, panels, cables and accessories are assembled and packed at the Shenzhen workshop. Lantern supply ability is quoted at 100,000 pieces per month.
Function and run test
Charge, discharge, brightness step and protection behaviour are checked before the unit is boxed.
Packing and loading
Retail cartons and export packing, with container loading figures confirmed per model before shipment.
Certifications
CE and RoHS
Declared for this model on the manufacturer specification.
Customisation Options
- Housing colour and customer logo
- Lamp count, cable length and accessory pack
- Battery size and panel wattage within the same chassis
- Retail packaging and language of the manual
Use Guide
- Set the panel in the sun
Face the panel at the open sky with nothing shading it. Roof edges and tree branches cost more output than most users expect.
- Watch the indicator, not the clock
The charging and battery indicators tell you when the cell is full. Charging past full does no harm because the control unit blocks over charge.
- Match the brightness step to the job
Use the lowest step that lets you see. Dropping a step can multiply the run time several times over on the same charge.
- Charge the phone in daylight if you can
Phone charging draws from the same cell as the lamp. Charging while the panel is working leaves more for the evening.
- Keep the cell from sitting flat
Charge the product at least once a week even when it is not in use, so the battery is not stored empty.
