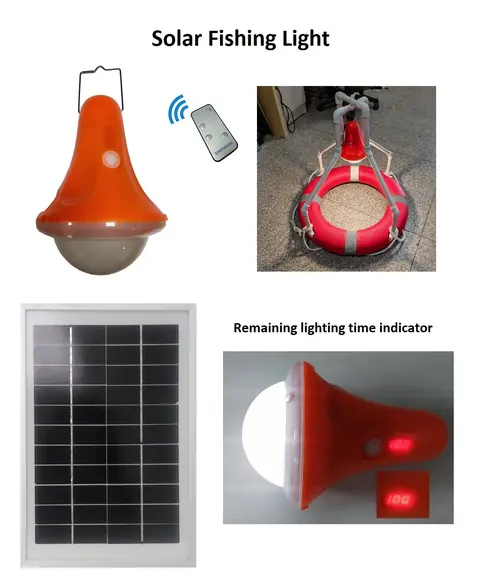

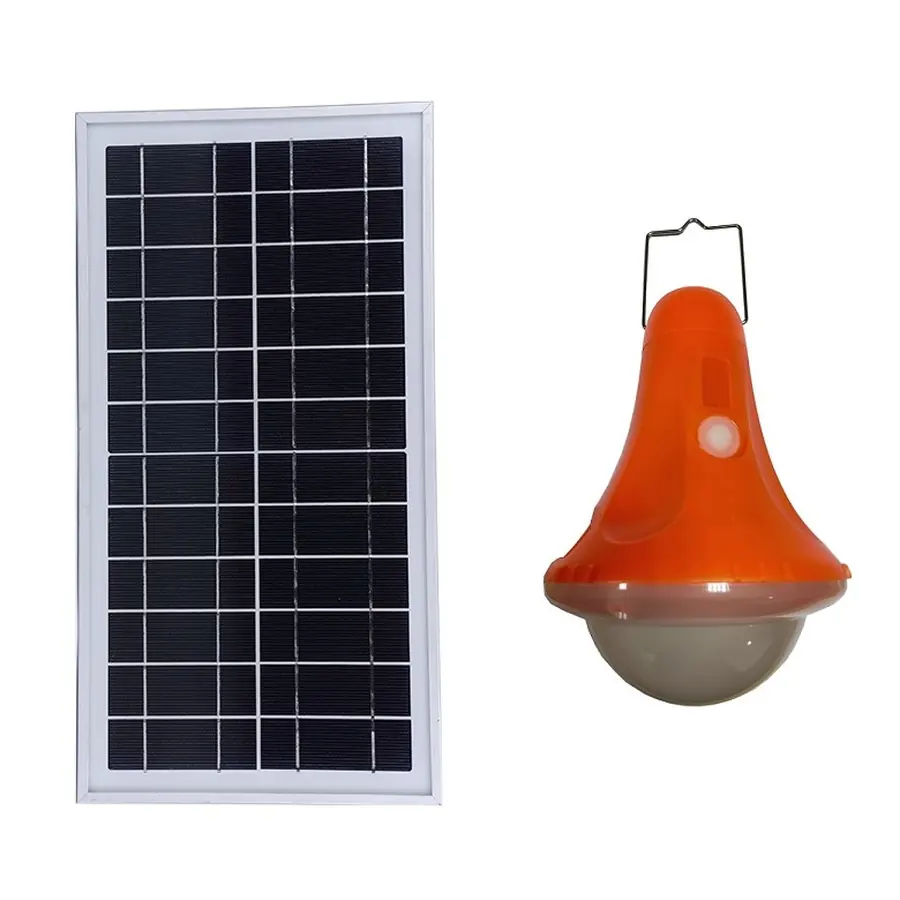

Waterproof Solar Fishing Lure Light
Model Solar fishing light
A 13W or 30W solar fishing light holding at least 12 hours at 200 to 500 lumens, IP65 rated, with an optional hook, rope or remote.
Drawings and artwork for OEM work can be sent to [email protected] or over WhatsApp. We do not use web forms.
Product Overview
A 13W or 30W solar fishing light holding at least 12 hours at 200 to 500 lumens, IP65 rated, with an optional hook, rope or remote.
Waterproof solar fishing lure lights holding at least 12 hours of output, designed and controlled in house.
Key Benefits
- At least 12 hrs at above 200lm on the 13W configuration
- 12 hours at 500 lumen on the larger battery configuration
- 2 brightness selection levels
- Water proof IP65, cannot be used underwater
- With a hook or rope, optional
- Remote optional
Who It Is For
Fishing communities on lakes and coasts, and distributors supplying fishing gear in off-grid regions.
Problems It Solves
- Kerosene lamps on a boat are a fire risk and a running cost.
- A night of fishing needs light that lasts the whole night, not two hours.
- Spray and rain destroy lights that are not sealed.
Application Scenarios
- Lake and coastal night fishing
- Fishing gear distribution
- Boat and jetty lighting
Technical Features
- At least 12 hrs at above 200lm on the 13W configuration
- 12 hours at 500 lumen on the larger battery configuration
- 2 brightness selection levels
- Water proof IP65, cannot be used underwater
- With a hook or rope, optional
- Remote optional
Specifications
| Solar panel | 13W / 30W poly solar panel with 5M cable |
|---|---|
| Battery | 7800 mAh, 3 x 2600mAh lithium battery |
| Run time | At least 12 hrs at above 200lm |
| Battery, larger option | 4 x 3.6V 3000mAh lithium batteries |
| Run time, larger option | 12 hours at 500 lumen |
| Brightness levels | 2 |
| Protection | IP65 |
| Warranty | 2 years |
Figures are the manufacturer specification for this model. Anything not listed here is confirmed in writing with the quotation.
Materials
| Solar panel | 13W / 30W poly solar panel with 5M cable |
|---|---|
| Battery | 7800 mAh, 3 x 2600mAh lithium battery |
| Battery, larger option | 4 x 3.6V 3000mAh lithium batteries |
Quality Control
- Micro-programmed control units on the lighting products protect against over voltage, over current, over charge, over discharge and short circuit.
- Solar panels are quoted at a 5 to 10 year lifespan and LED bulbs at 50,000 hours.
- Products are stated to meet ISO, SGS, BV, COC, PVOC, SONCAP, SASO, CIQ, CE and RoHS requirements.
- The company's own lamp development passed the Indonesian laboratory test before volume supply.
- Certified models are tested by third parties: VeraSol certification on the SunAwada, VeraSol testing on the SunAce-Li, and the Lighting Global quality standards on the Lamp2Torch, SunAce II and SunBase.
How It Is Manufactured
Tooling and moulding
Housings start from our own moulds. The company built its moulding capability when it developed the Indonesian SEHEN lamp, and that is still where a new housing begins.
Component sourcing and incoming check
Cells, panels, LEDs and control boards are sourced and checked before they reach the line. Cost engineering happens here, not by thinning the specification later.
Board and wiring assembly
Charge control, protection and, on PAYG models, the token firmware are fitted and wired to the lamp and output ports.
Line assembly
Housings, panels, cables and accessories are assembled and packed at the Shenzhen workshop. Lantern supply ability is quoted at 100,000 pieces per month.
Function and run test
Charge, discharge, brightness step and protection behaviour are checked before the unit is boxed.
Packing and loading
Retail cartons and export packing, with container loading figures confirmed per model before shipment.
Certifications
Certification on request
Certification for this model is confirmed in writing with the quotation. We do not publish a certificate we cannot supply.
Customisation Options
- Housing colour and customer logo
- Lamp count, cable length and accessory pack
- Battery size and panel wattage within the same chassis
- Retail packaging and language of the manual
Use Guide
- Charge the pack in daylight
The 13W or 30W panel charges the lithium pack. Give it a full day before a night on the water.
- Pick the brightness level
Two levels are provided. The lower level is what gets you past 12 hours.
- Hang it with the hook or rope
The hook or rope option is fitted for hanging over the side or from a frame.
- Keep it above the waterline
The IP65 rating covers rain and spray. The light is not made to be submerged.
Waterproof Solar Fishing Lure Light FAQ
What size solar panel does the Waterproof Solar Fishing Lure Light use?
What battery is fitted?
What warranty comes with it?
Can this product be customised for our brand?
What is the minimum order quantity and the lead time?
Can you send a sample before we order?
