LED Machine Vision Lights

SBS Vision provides many different types of light for machine vision application. We also provide customized design service, normally we can provide the samples within 10 working days.

Ring, bar, dome, coaxial, back and line scan illumination built to make the defect visible before the algorithm ever runs.

Request A Quote Download Catalogue
LED Machine Vision Lights manufactured by SBS Vision

Products

LED Machine Vision Lights Models

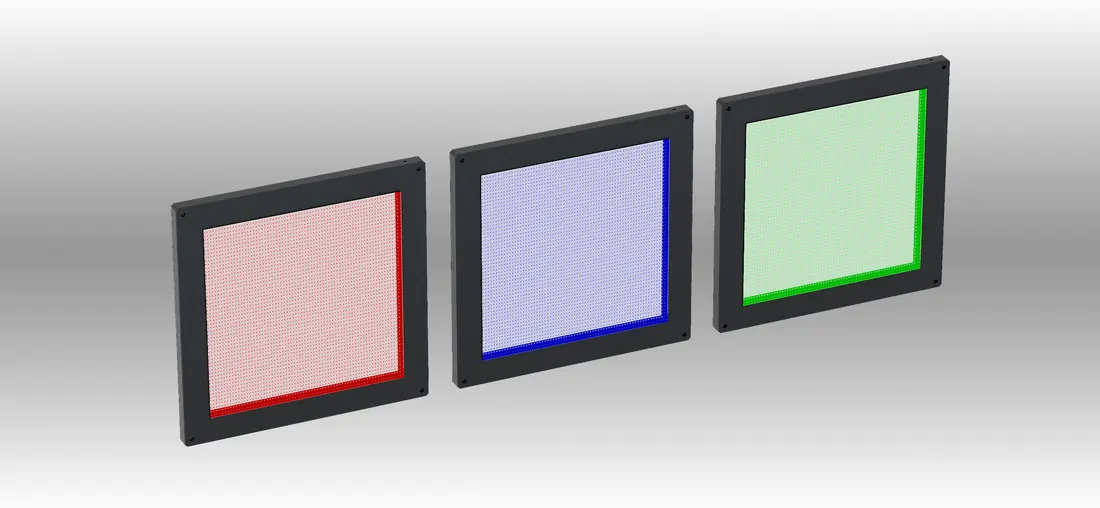

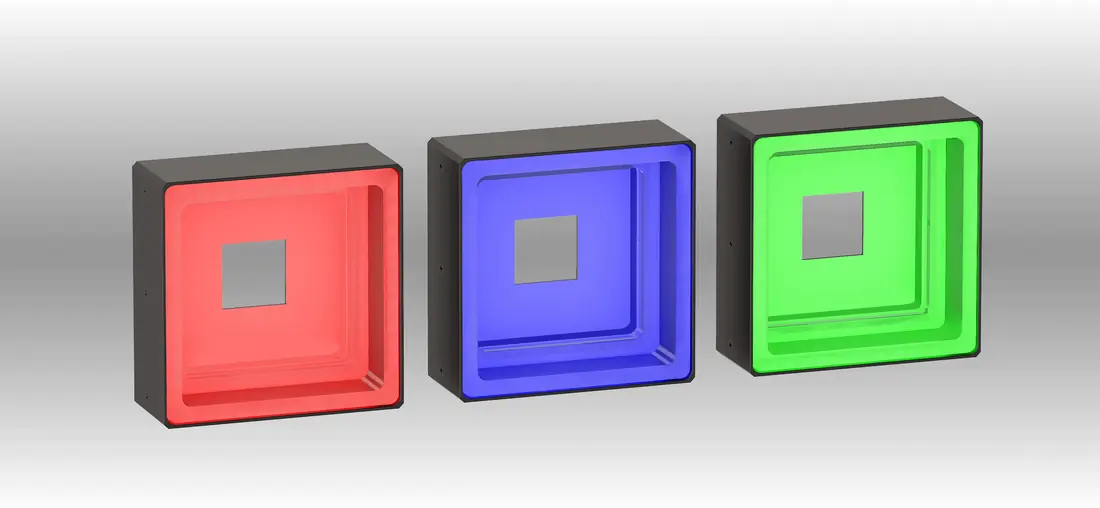

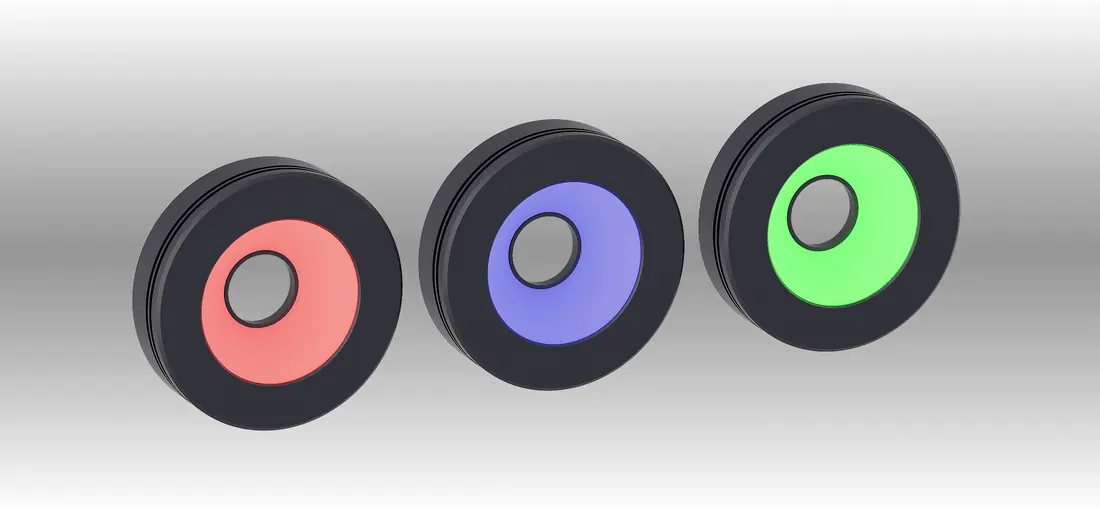

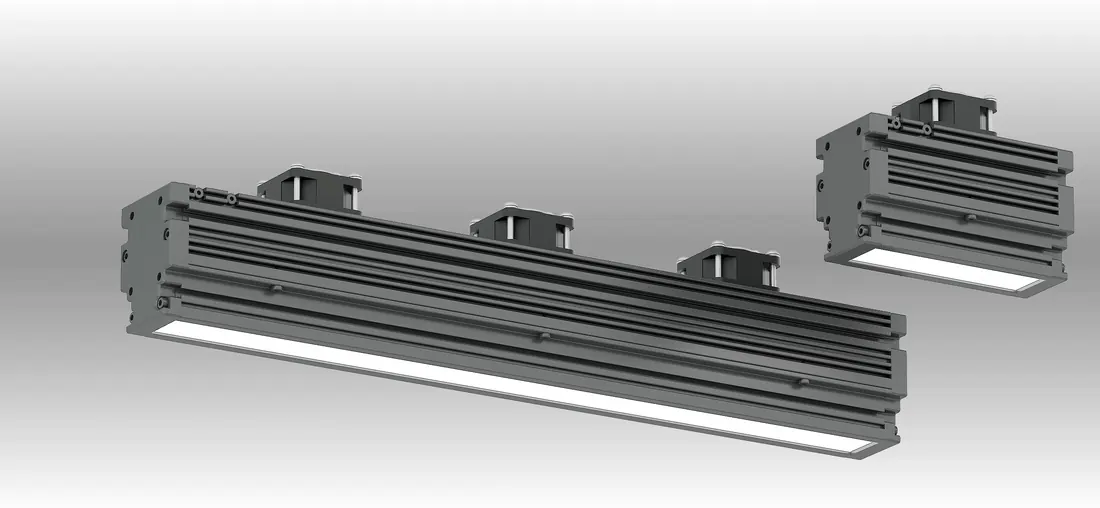

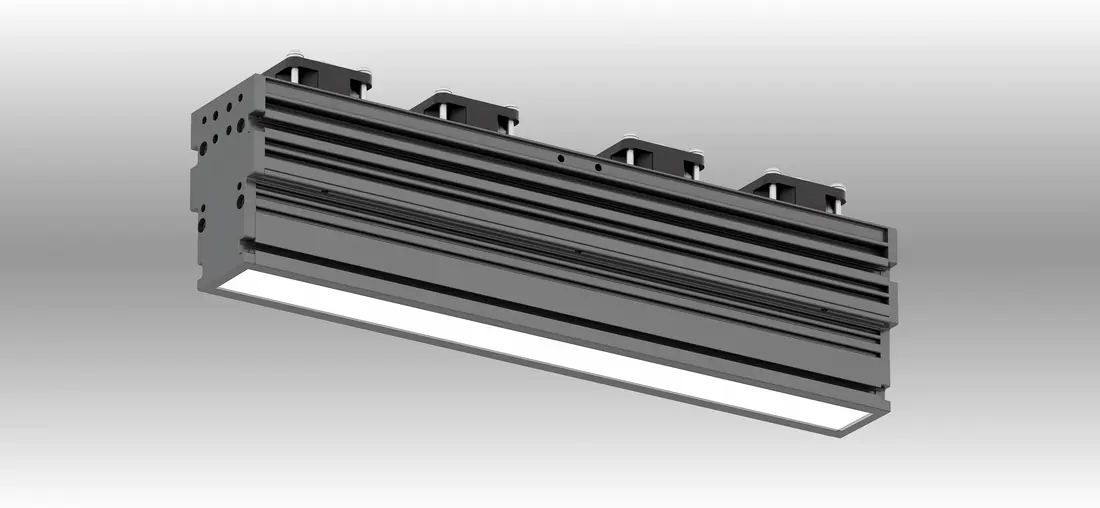

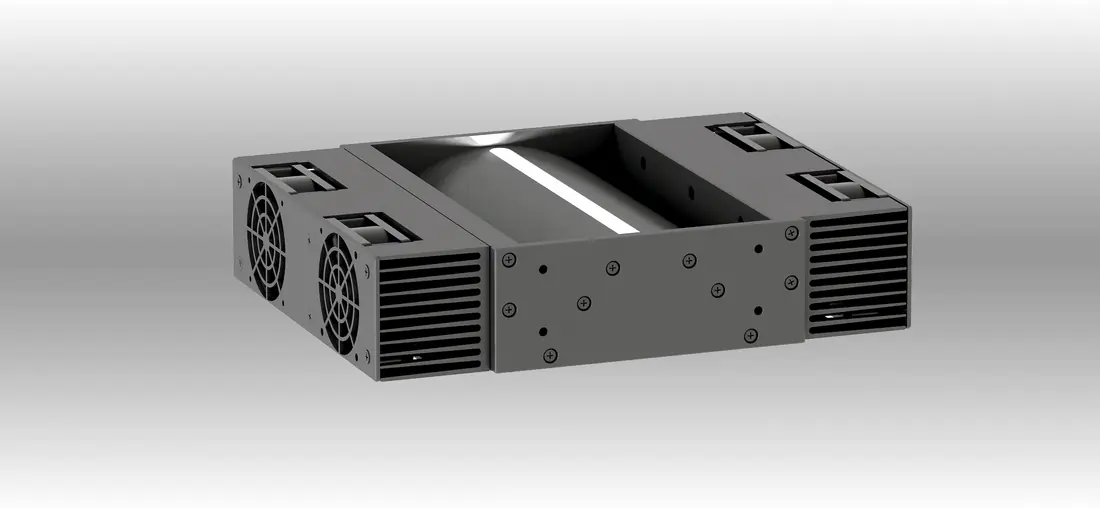

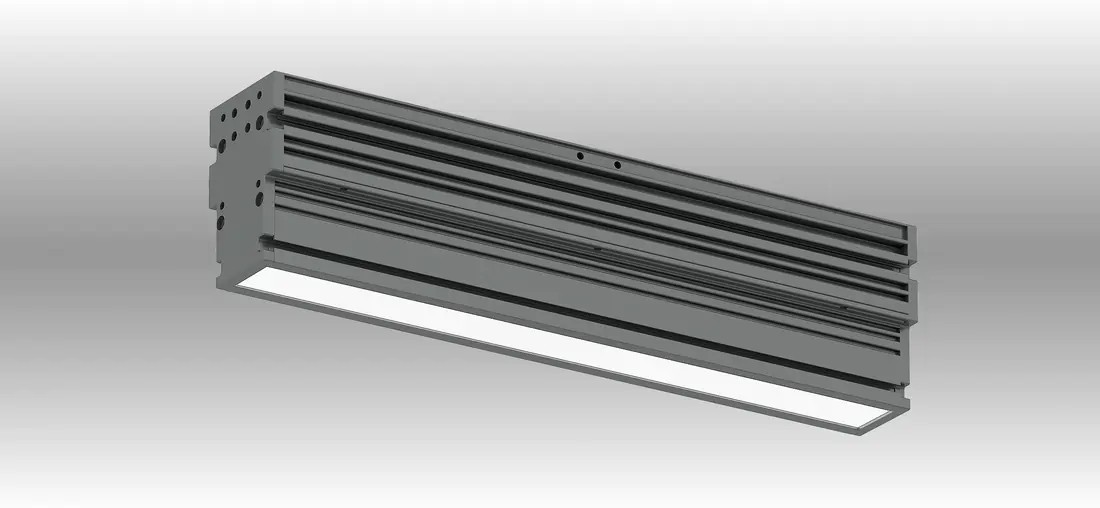

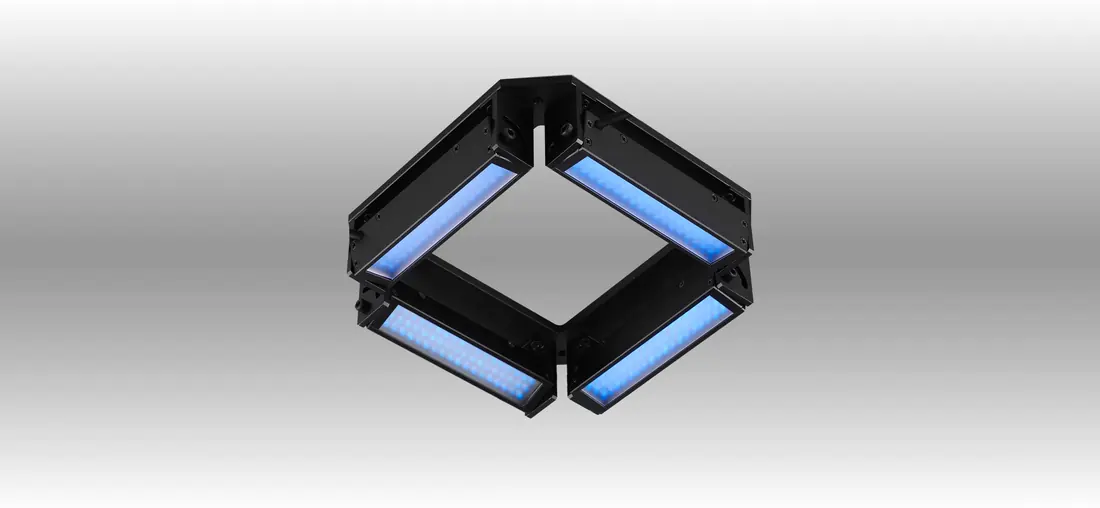

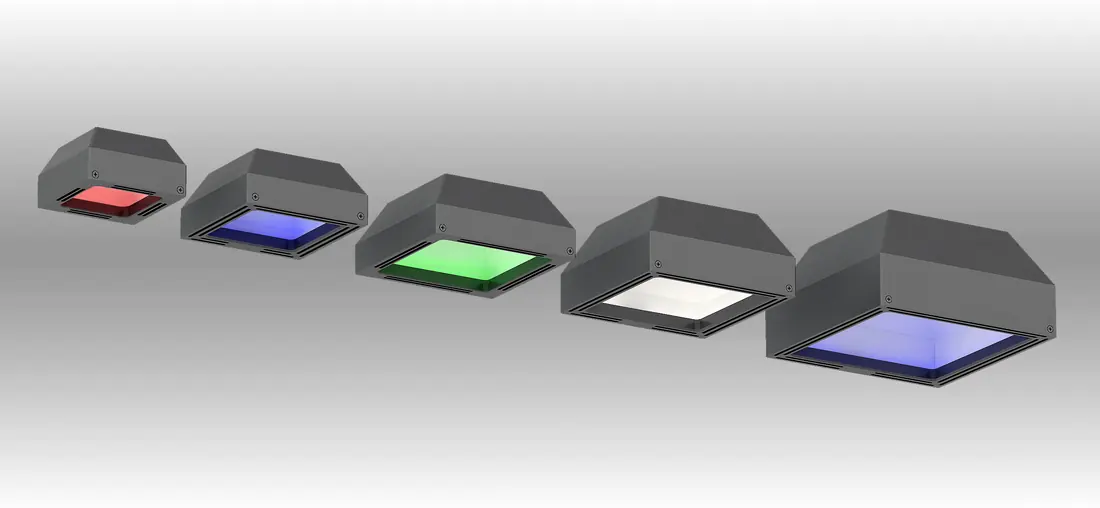

Back Lights for machine vision Back Lights View Details → Hole Back Lights for machine vision Hole Back Lights View Details → Angle Square Lights for machine vision Angle Square Lights View Details → Coaxial Lights for machine vision Coaxial Lights View Details → Collimated Coaxial Lights for machine vision Collimated Coaxial Lights View Details → Uniformity Ring Lights for machine vision Uniformity Ring Lights View Details → Dome Lights for machine vision Dome Lights View Details → High Power Line Scan Tunnel Lights for machine vision High Power Line Scan Tunnel Lights View Details → Bar Lights Combined for machine vision Bar Lights Combined View Details → Bar Lights (3mm LED type) for machine vision Bar Lights (3mm LED type) View Details → Coaxial Line Scan Lights for machine vision Coaxial Line Scan Lights View Details → Low Angle Ring Lights for machine vision Low Angle Ring Lights View Details → Flat Dome Lights for machine vision Flat Dome Lights View Details → High Illuminance Line Scan Lights for machine vision High Illuminance Line Scan Lights View Details → Line Scan Lights for machine vision Line Scan Lights View Details → Line Scan Tunnel Light for machine vision Line Scan Tunnel Light View Details → Square Dome Lights for machine vision Square Dome Lights View Details → Oblique Line Line Scan Lights for machine vision Oblique Line Line Scan Lights View Details → Ring Lights for machine vision Ring Lights View Details → Spot Lights for machine vision Spot Lights View Details → Parallel Back Lights for machine vision Parallel Back Lights View Details → Square Lights for machine vision Square Lights View Details → Thin Back Lights for machine vision Thin Back Lights View Details → Tunnel Lights Area Scan for machine vision Tunnel Lights Area Scan View Details →

Application Scenarios

Where This Range Is Used

Taken directly from the application notes published for the individual series in this category.

  • Profile and dimension measuring
  • Scratch, dirty, damage, internal foreign substance inspection of transparent objects
  • Damage and foreign substance inspection of glass
  • Liquid level inspection.
  • Burrs inspection of metal parts.
  • Automative dimension measuring.
  • PCB circuit board inspection.
  • Semiconductors defects inspection like IC
  • PCB defects inspection
  • Package, surface inspection
  • Label inspection
  • Laser mark inspection of wafer
  • Marked characters inspection of metal, bearing, can
  • QR code inspection of metal and glass
  • LCD defects inspection
  • Stain, scratch, dirty inspection of CD, DVD and blu-ray discs
  • Scratches inspection of reflective surface
  • Tiny bubbles inspection of glass surface
  • Laser marked characters inspection
  • Minor scratch inspection for Ipad, Ipod and Iphone
  • Chamfer inspection of machining circular parts
  • Characters inspection of arc smooth surface
  • Printing labels inspection and package box defects inspection
  • Bottle mouth scratches inspection

Related

Industries And Solutions For This Range

Semiconductor and IC

Character marking, pin geometry and wafer level defects on parts where the feature of interest is smaller than the tolerance you are allowed to miss.

PCB and Electronics Assembly

Solder joint, component and copper level inspection on boards where the same line has to cope with matte, glossy and curved surfaces at once.

Display Glass and Film

Transparent and semi transparent web material where the defect you are looking for transmits almost as much light as the good product around it.

Printing Labels and Packaging

Continuous web and discrete pack inspection where print quality, label presence and box integrity all have to be judged at line speed.

Metal Parts and Machining

Machined and formed metal where burrs, chamfers, laser marks and codes have to be read off a surface that reflects most of the light straight back.

Automotive and New Energy

Automotive components and lithium battery production where dimensional accuracy and surface integrity both carry safety consequences.

Consumer Goods and Logistics

High mix consumer production and parcel handling where the same station sees glass, plastic, foil, fabric and cardboard within a single shift.

Custom Lighting and Optics Design

More than 20 lighting and optics design engineers, most custom products delivered within two weeks and urgent builds inside five days.

Structured Light 3D and Curved Surface Inspection

Structured lighting research aimed at parts where a flat two dimensional image cannot separate a real defect from a shadow.

High Speed Line Scan Imaging

Line scan illumination measured at more than one million lux, matched with 4K to 16K line scan optics for continuous web inspection.

Component Matching and Supply

Light, controller, lens and camera specified together as one imaging chain instead of four separate purchase lines.

Other product ranges

ControllersArea Scan CamerasFocal LensesLine Scan LensesTelecentric LensesTelecentric Line Scan Lenses

FAQ

LED Machine Vision Lights Questions

Which light type suits my part
It depends on the surface and the feature. Diffuse ring and dome lights suit curved or shiny parts, low angle ring and bar lights bring out scratches and edges, back lights and parallel back lights give outline and dimension, coaxial lights suit flat specular surfaces, and line scan lights suit continuous web material.
Can the colour and angle be changed
Yes. Ring lights are described as flexible to make different angles and colours to suit different machine vision applications, and diffusers and extension cables of 1m, 3m and 5m are listed as options on most series.
What lead time applies to a custom light
SBS Vision provides customised design service and can normally provide the samples within 10 working days. Most customised products are provided within two weeks, and urgent demand can be shortened to around five days.
Do I need a controller with the light
Each lighting series parameter table lists its recommended controllers, typically the SBS-AC analog controller, the SBS-DC digital controller or the SBS-ODC overdrive strobe controller.

Get A Model Recommendation

Tell us the part, the feature you need to see and the working distance. We will name the model rather than send a catalogue and hope.
