High Power Digital Controller
High Power Digital Controller is a kind of Controller which provides high power to High Power Lights like Line Scan Lights.
- Range
- LED Light Controllers
- Supplier
- SBS Vision Solution, Dongguan China
- Custom design
- Available, typically two weeks
- Catalogue
- PDF download on this page
Key Benefits
Product Features
The published feature list for this series, reproduced from the SBS Vision catalogue.
- Channels can be controlled individually, communication command can be combined by one code or series of codes.
- The intensity can be adjusted by the buttton in the panel and it also can be adjusted via PLC or other Machine Vision Devices.
- It can recognize the rated power of the Line Scan Lights automatically and output the related current.
- External trigger is available, RS232/Ethernet communication.
- To light up the Line Scan Lights via constant current, 48V output voltage.
Where It Is Used
Explore Applications By Industry
No separate application list is published for this series. The industry pages below collect the inspection tasks the wider led light controllers range is specified for.
Technical Data
Specifications Models And Dimensions
Parameter tables, model descriptions and dimension drawings exactly as published in the series catalogue. Tables scroll sideways on narrow screens.
Item No. Description

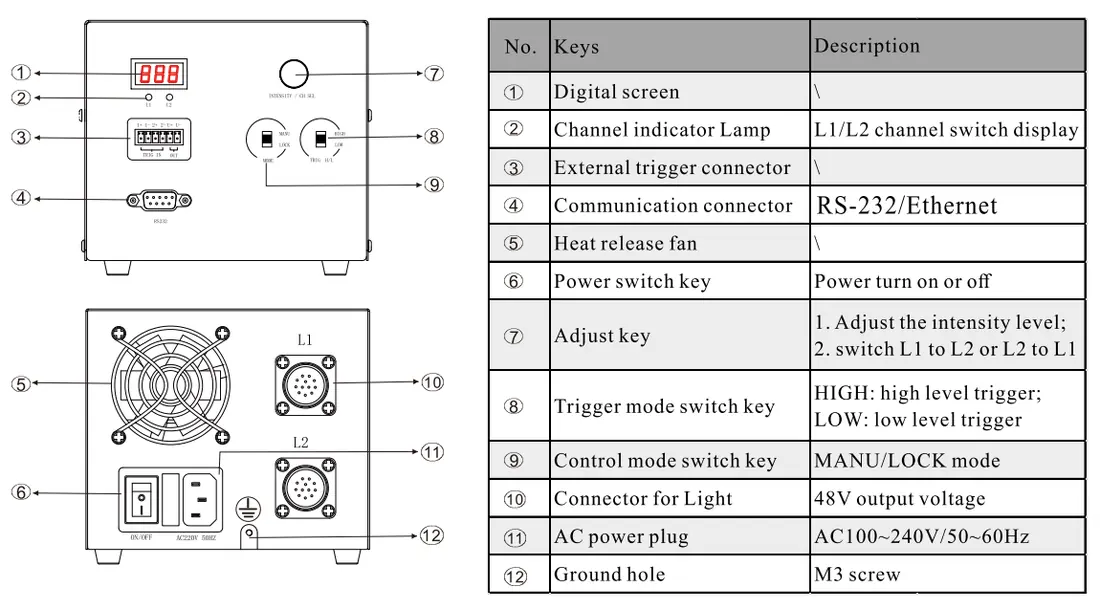

Panel Description
Parameter
| Item | Description | ||
|---|---|---|---|
| Model | SBS-DCHP48-135-2 | SBS-DCHP48-580-1 | SBS-DCHP48-550-2 |
| Lighting states | Continuous | ||
| Intensity adjust method | By adjusting current | ||
| Drive mode | Constant current | ||
| Communication | RS-232 / Ethernet | ||
| Channel | 2 | 1 | 2 |
| Max output power of single channel | 135W | 580W | 270W |
| Total output power | 135W | 580W | 550W |
| Lighting up method | Constant current | ||
| Input voltage | AC100~240V | ||
| Trigger input voltage | DC5~24V | ||
| Output voltage | DC48V | ||
| Lighting trigger delay | Not more than 50us | ||
| ID identify | Automatic identify | ||
| ID setting | Setting by software (0~99) | ||
| Heat release fan | Fan will be started up when the temperature of panel is more than 55℃, will be stopped when the temperature is below 45℃, it shows error when the temperature is more than 85℃. | ||
| Error detection display | Over temperature protecction of Controller shows “E01” Temperature control fault of Controller shows “E05” Over current protection of Light shows “E02” Over temperature protecction of Light shows “E03” Temperature control fault of Light shows “E04” | ||
| Usage environment | Temperature:-10~50℃; humidity:20~85%RH (not frozen) | ||
| Storage environment | Temperature:-20~60℃; humidity:20~85%RH (not frozen) | ||
Connector
1 channel
2 channels
Control mode and lighting mode

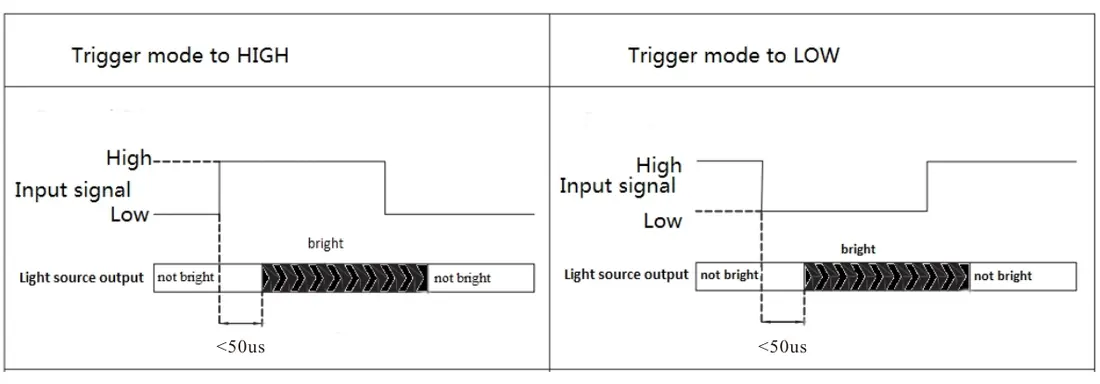

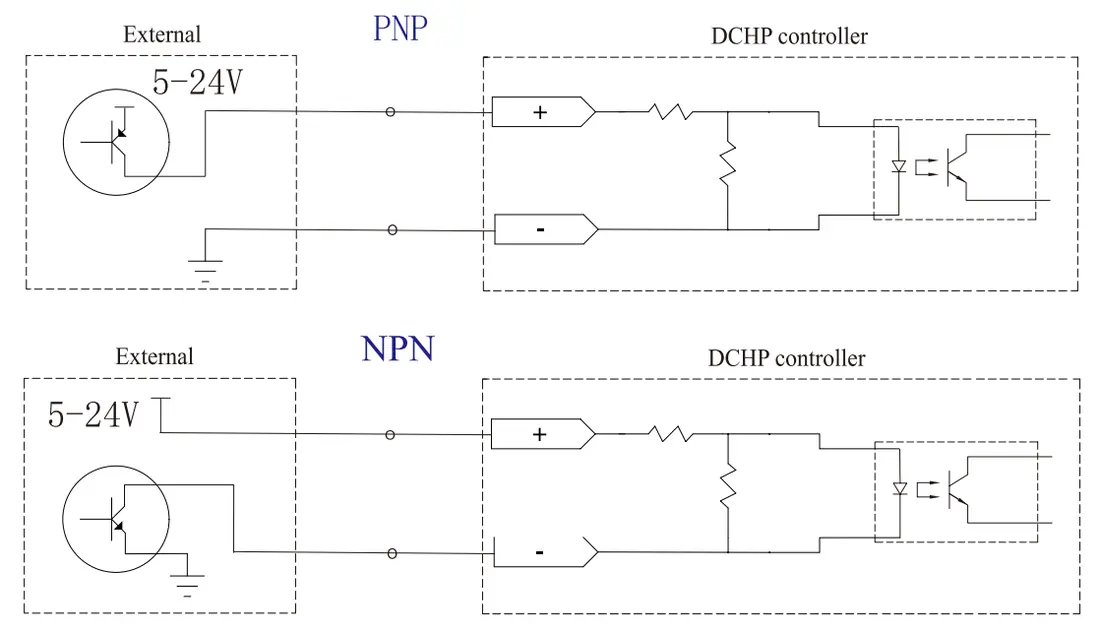

Trigger Input Method
