Mini Controller
Mini Controller is a kind of Controller applied for the Machine Vision Applications which are extremely strict with the installing space.
- Range
- LED Light Controllers
- Supplier
- SBS Vision Solution, Dongguan China
- Custom design
- Available, typically two weeks
- Catalogue
- PDF download on this page
Key Benefits
Product Features
The published feature list for this series, reproduced from the SBS Vision catalogue.
- Control the Light remote by integrating with software.
- Each channel can be controlled individually, controlled by hands, another is controlled by RS232 or Ethernet.
- Provide RS232 or Ethernet communication and 0-999 intensity level.
- The trigger function is from outsourcing signal to turn on or off the Lights;
- It can be switched to constant on or off.
- Flexiable outsourcing trigger, with continuous on/ off status, intensity can be adjusted without level limited.
- Small size, easy operation.
Where It Is Used
Explore Applications By Industry
No separate application list is published for this series. The industry pages below collect the inspection tasks the wider led light controllers range is specified for.
Technical Data
Specifications Models And Dimensions
Parameter tables, model descriptions and dimension drawings exactly as published in the series catalogue. Tables scroll sideways on narrow screens.
Mini Digital Controller
Mini Analog Controller
Item No. Description
Parameter
| Model Item | SBS-DCM24-60-4 | SBS-ACM24-60-4 |
|---|---|---|
| Output way | constant voltage | |
| Intensity adjust | manual operation/RS232/Ethernet | manual operation |
| Input voltage | DC24V | |
| Channels | 4 | 4 |
| Output voltage | DC24V | |
| Max current output | 2.5A (Single CH output max 1.5A) | |
| Power | 60W | 60W |
| Output connector | SM 03V-BC (pin 1 is +, pin 3 is –) | |
| Trigger voltage input | 12V-24V (current is 5.6mA) | |
| Trigger delay | Less than 1ms | |
| Usage environment | temperature: 0–40℃; humidity: 20-85% RH (not frozen) | |
| Storage environment | temperature: -20–60℃; humidity: 20-85% RH (not frozen) | |
| Cooling way | Nature cooling | |
Dimensions (mm)

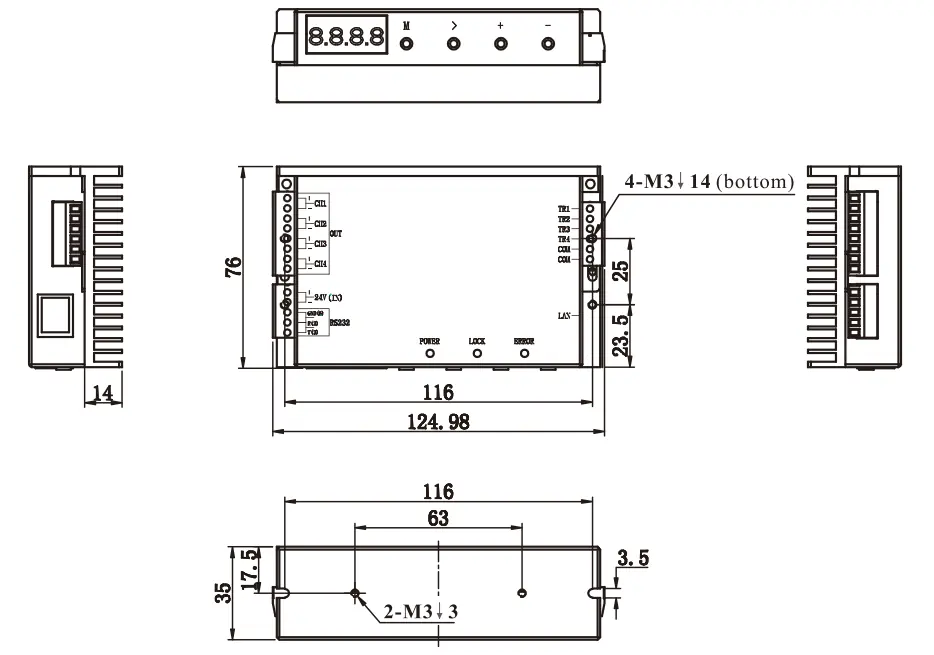

Mini Digital Controller (SBS-DCM24-60-4)

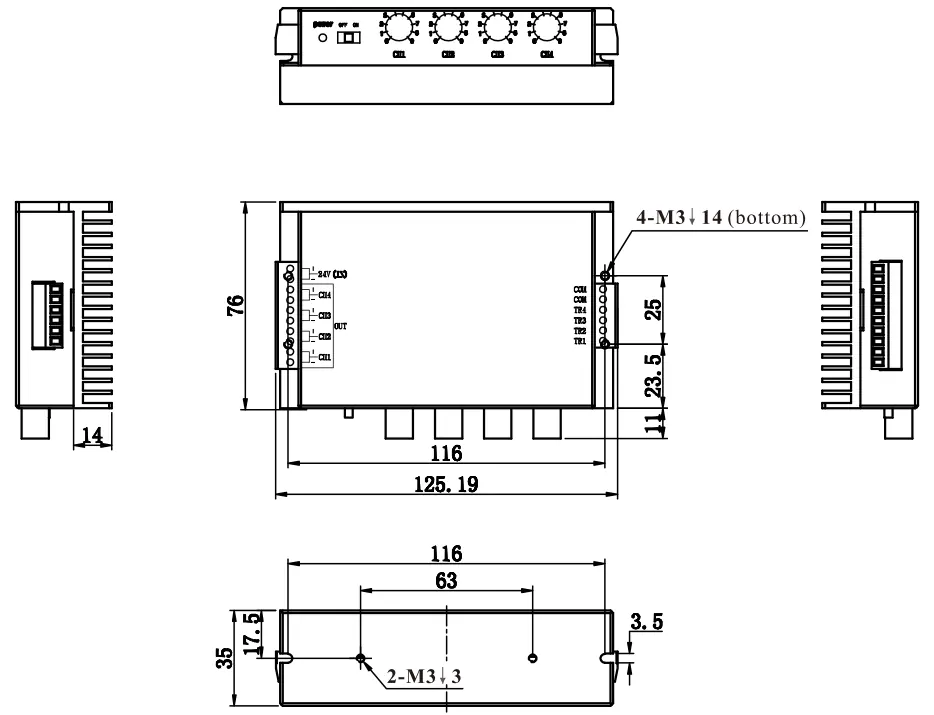

Mini Analog Controller (SBS-ACM24-60-4)
Comparison
How It Sits Against The Rest Of The Range
Other led light controllers in the SBS Vision catalogue, with the lead characteristic published for each one.
| Product | Published lead characteristic |
|---|---|
| Analog Controller | Intensity can be adjusted without level limited |
| Digital Controller | RS232/Ethernet communication. |
| High Power Digital Controller | Channels can be controlled individually, communication command can be combined by one code or series of codes. |
| Overdrive Digital Controller | Overdrive voltage can be 48V, the brightness of the LED Lights can be increased by more than 3 times. |
Customization Options
When The Catalogue Part Is Not The Right Part
Channel count, output voltage and output power are set by series. Where the standard controllers do not cover the load, the design team builds to the requirement.
More than 20 experienced customized design engineers work on lighting and optics design. Most customised products can be provided within two weeks, and for urgent demand this can be shortened to around five days.
Drawings and CAD files are handled over WhatsApp or email rather than an upload form. CAD on request via WhatsApp.
Use Guide
Specifying It Correctly
Define The Feature
Write down the smallest feature that has to be detected and the tolerance on it. That number sets the sensor resolution and the lens, before anything else is chosen.
Fix The Field Of View
Measure the largest part plus the mechanical tolerance on part position. Field of view and working distance together decide the focal length.
Choose The Lighting Geometry
Match the light to the surface: diffuse for curved or shiny parts, low angle for scratches and edges, back lighting for outline and dimension, coaxial for flat specular surfaces.
Match The Controller And Trigger
Confirm the recommended controller for the light, the trigger voltage and the response time, so the illumination is stable at the exposure the line speed forces on you.
