High Power Line Scan Tunnel Lights
High Power Line Scan Tunnel Lights is a type of LED machine vision lighting used high power LEDs with special optical structure design. It has high uniformity. Can be used in the applications of high reflective surface Work inspection.
- Range
- LED Machine Vision Lights
- Supplier
- SBS Vision Solution, Dongguan China
- Custom design
- Available, typically two weeks
- Catalogue
- PDF download on this page
Application Scenarios
What This Product Is Used To Inspect
Published application list for this series. If your part is close to one of these, it is worth a conversation.
- Packaging inspection
- PCB defects inspection
- Fabric appearance inspection
- Film surface defects inspection
Who it is for
Technical Data
Specifications Models And Dimensions
Parameter tables, model descriptions and dimension drawings exactly as published in the series catalogue. Tables scroll sideways on narrow screens.
Light Structure
High Power Line Scan Tunnel Lights is a type of LED machine vision lighting used high power LEDs with special optical structure design. It has high uniformity. Can be used in the applications of high reflective surface Work inspection.
Spectrum Distribution
Item No. Description
Parameter
| Item No. | Power consumption (W) | Emitting surface (mm) | View window (mm) | Dimension (L*W*H) (mm) | Recommended controller |
|---|---|---|---|---|---|
| SBS-TULHP17350-X | 48V/288.00W | 173*50 | 165*9 | 183*225*50 | SBS-DCHP48-X |
| SBS-TULHP20850-X | 48V/400.00W | 208*50 | 200*9 | 218*225*50 | |
| SBS-TULHP29050-X | 48V/500.00W | 290*50 | 282*9 | 300*225*50 |
Dimension (mm)

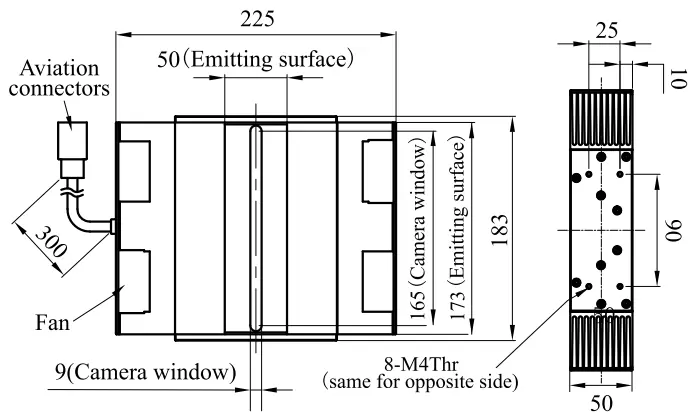

SBS-TULHP17350-X

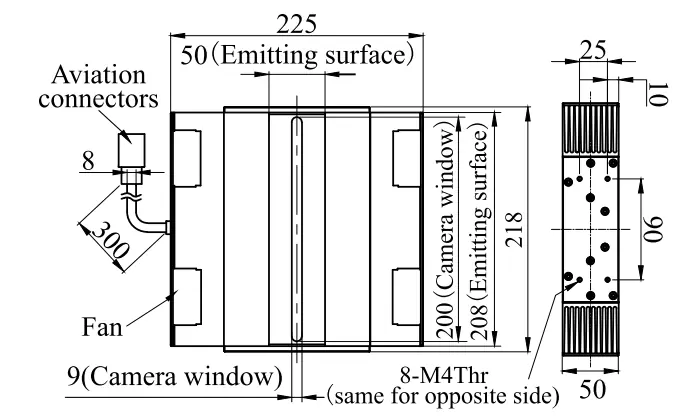

SBS-TULHP20850-X

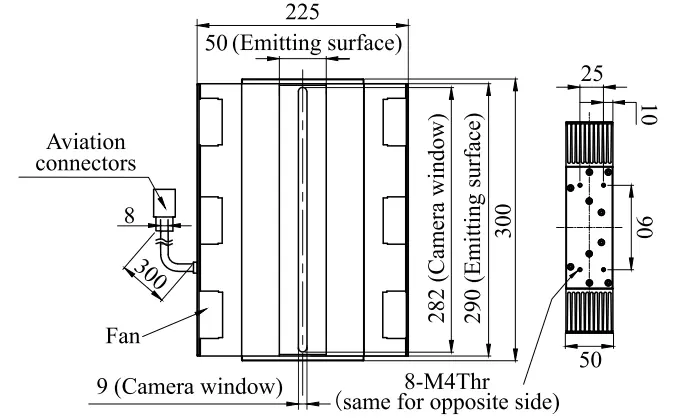

SBS-TULHP29050-X
Comparison
How It Sits Against The Rest Of The Range
Other led machine vision lights in the SBS Vision catalogue, with the lead characteristic published for each one.
| Product | Published lead characteristic |
|---|---|
| Back Lights | Back Lights is a type of LED machine vision lighting, its LED arrayed in the bottom, and the diffuser used is uniform which can get even illumination |
| Hole Back Lights | — |
| Angle Square Lights | Angle Square Lights is a type of LED machine vision lighting which has different illuminating angles, different colors combination and shadowless. It |
| Coaxial Lights | Coaxial Lights is a type of LED machine vision lighting used high density LEDs arrayed, and a special mirror adopted, it gets even illumination area a |
| Collimated Coaxial Lights | Collimated coaxial lights is a type of LED machine vision lighting used with special optical lens which are designed to make the lighting come out par |
| Uniformity Ring Lights | Uniformity ring lights is a type of LED machine vision lighting used special lighting guiding diffuser, it can be illuminated evenly on the reflective |
| Dome Lights | Dome lights is a type of LED machine vision lighting used with special diffuser, and it is dome structure, it can be illuminated evenly on the object |
| Bar Lights Combined | — |
| Bar Lights (3mm LED type) | Bar Lights is a type of LED machine vision lighting suitable for big field of view applications as its length can be from millimeter to meter, it is a |
| Coaxial Line Scan Lights | — |
Customization Options
When The Catalogue Part Is Not The Right Part
SBS Vision provides customized design service for machine vision lighting, and can normally provide the samples within 10 working days. Angles, colours, sizes and diffusers can be changed against the application.
More than 20 experienced customized design engineers work on lighting and optics design. Most customised products can be provided within two weeks, and for urgent demand this can be shortened to around five days.
Drawings and CAD files are handled over WhatsApp or email rather than an upload form. CAD on request via WhatsApp.
Use Guide
Specifying It Correctly
Define The Feature
Write down the smallest feature that has to be detected and the tolerance on it. That number sets the sensor resolution and the lens, before anything else is chosen.
Fix The Field Of View
Measure the largest part plus the mechanical tolerance on part position. Field of view and working distance together decide the focal length.
Choose The Lighting Geometry
Match the light to the surface: diffuse for curved or shiny parts, low angle for scratches and edges, back lighting for outline and dimension, coaxial for flat specular surfaces.
Match The Controller And Trigger
Confirm the recommended controller for the light, the trigger voltage and the response time, so the illumination is stable at the exposure the line speed forces on you.
