4K Line Scan Lens
4K Line Scan Lens is part of the SBS Vision line scan lenses range. The product features, parameter tables and dimension drawings on this page are the published series data for this product.
SBS Vision provides excellent optical performance and uniform imaging from center to edge of 4K and 8K line scan lens with different focus for compatible of our line scan camera using. Short lead time.
- Range
- Line Scan Lenses
- Supplier
- SBS Vision Solution, Dongguan China
- Custom design
- Available, typically two weeks
- Catalogue
- PDF download on this page
Key Benefits
Product Features
The published feature list for this series, reproduced from the SBS Vision catalogue.
- 4K Line Scan Lens is a good choice for package inspection.
- Choice is flexiable from different magnification.
- Excellent optical performance, the image result is very uniform from center to side.
- It is suitable for 2K/4K Line Scan Camera.
- Transmission from 400nm to 700nm.
Where It Is Used
Explore Applications By Industry
No separate application list is published for this series. The industry pages below collect the inspection tasks the wider line scan lenses range is specified for.
Technical Data
Specifications Models And Dimensions
Parameter tables, model descriptions and dimension drawings exactly as published in the series catalogue. Tables scroll sideways on narrow screens.
Parameter
| No. | Item No | Image size (mm) | Iris (F#) | Resolution | Magnification range | WD (mm) | Focal Length (mm) | Distortion (%) | Relative illumination (%) | Conjugate distance (mm) | Mount |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SBS-XS254K-003X | φ30 | 4-22 | 4k 7μm | 0.015x-0.05x | 520-1740 | 25 | <0.5 | >60 | 607.3-1826.4 | M42*P1.0 |
| 2 | SBS-XS254K-008X | φ30 | 4-22 | 4k 7μm | 0.05x-0.125x | 200-520 | 25 | <0.5 | >60 | 284.9-602.9 | M42*P1.0 |
| 3 | SBS-XS254K-015X | φ30 | 4-22 | 4k 7μm | 0.125x-0.175x | 130-187 | 25 | <0.5 | >60 | 223.4-279.2 | M42*P1.0 |
| 4 | SBS-XS254K-024X | φ30 | 4-22 | 4k 7μm | 0.175x-0.3x | 74-135 | 25 | <0.5 | >60 | 171.7-229.5 | M42*P1.0 |
| 5 | SBS-XS354K-025X | φ30 | 4-16 | 4k 7μm | 0.01x-0.5x | 83-3513 | 35 | <0.05 | >75 | 152-INF. | M42*P1.0 |
| 6 | SBS-XS404K-018X | φ43 | 3.2-16 | 4k 7μm | 0.04x-0.33x | 132-1044 | 40 | <0.5 | >25 | 220.53-1120.59 | M42/M48/M58/ M72/M50/F |
SBS-XS254K-003X

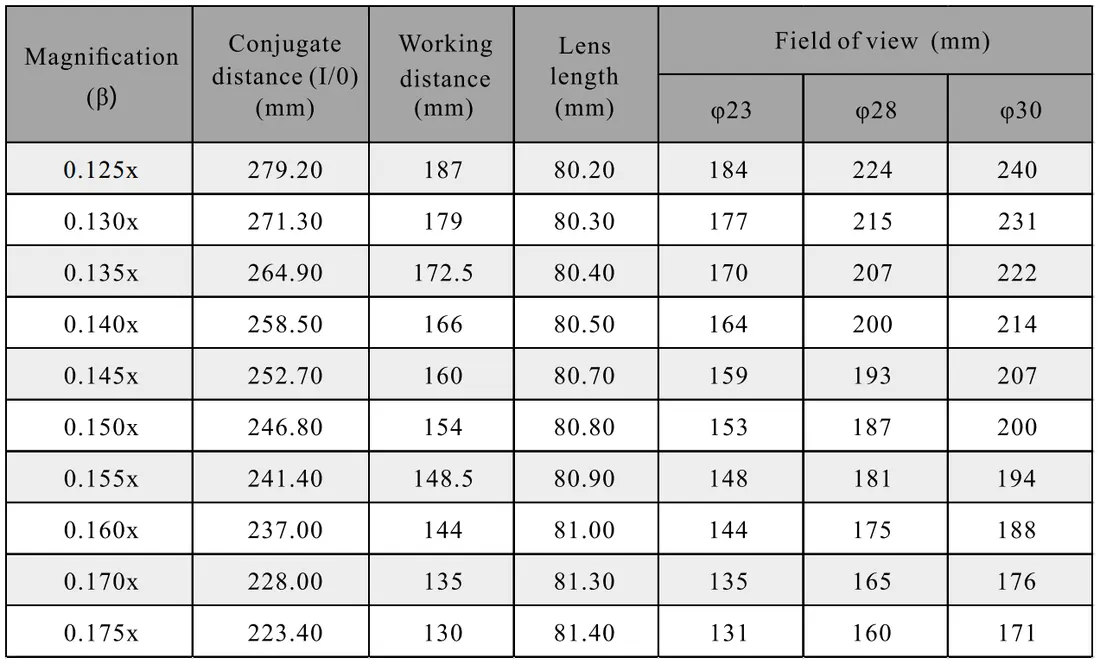

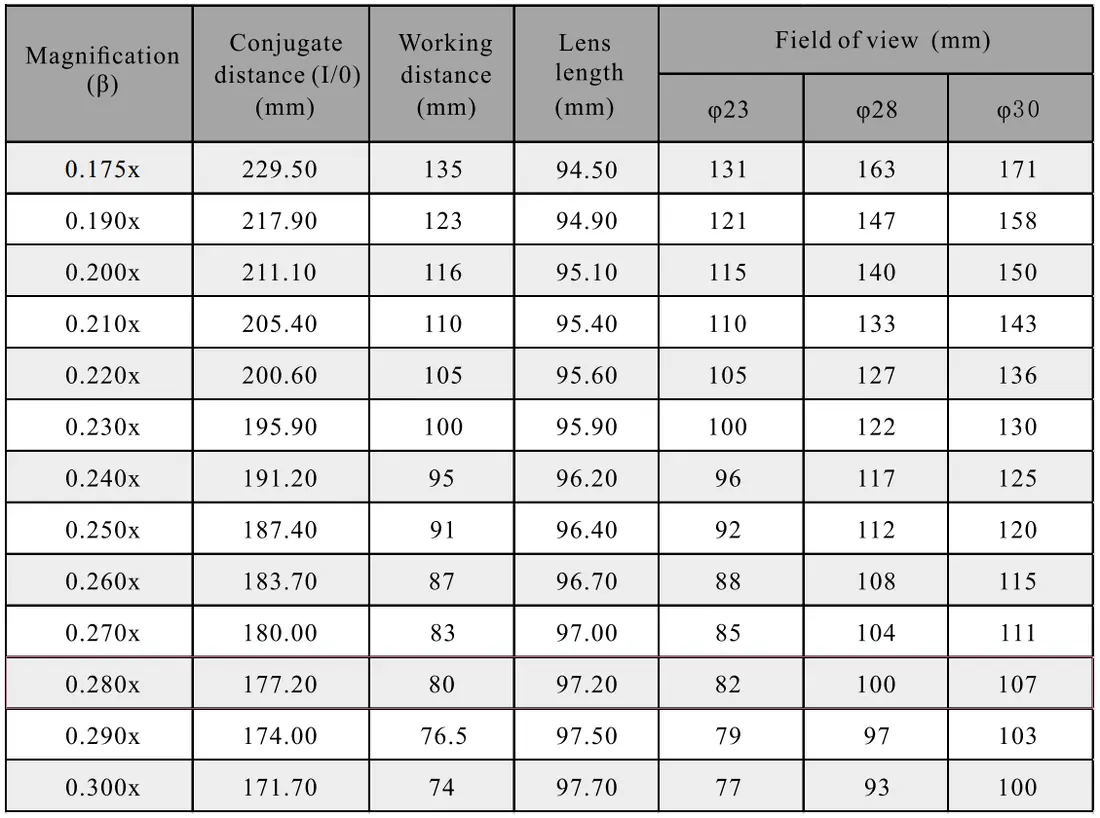

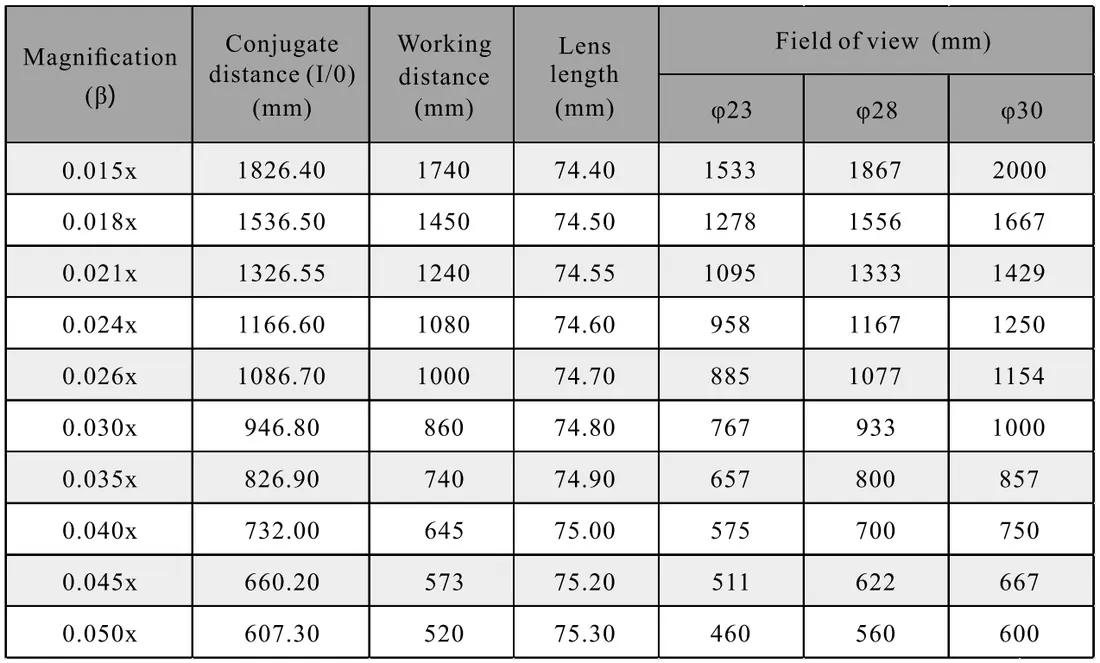

Parameter

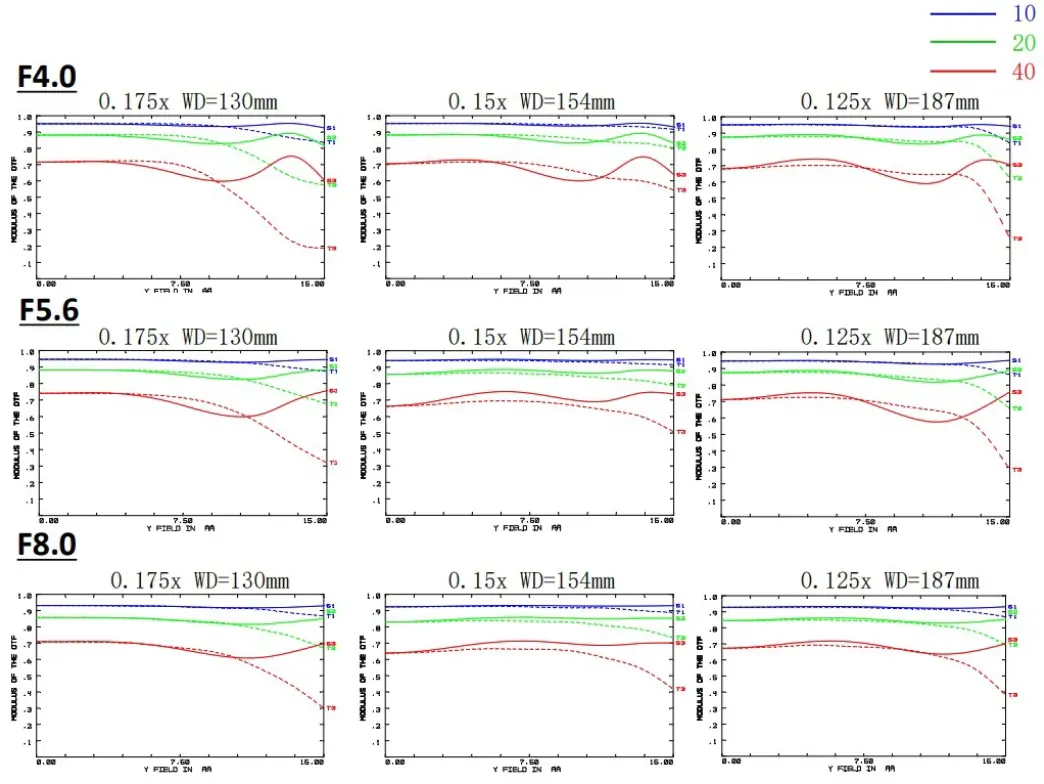

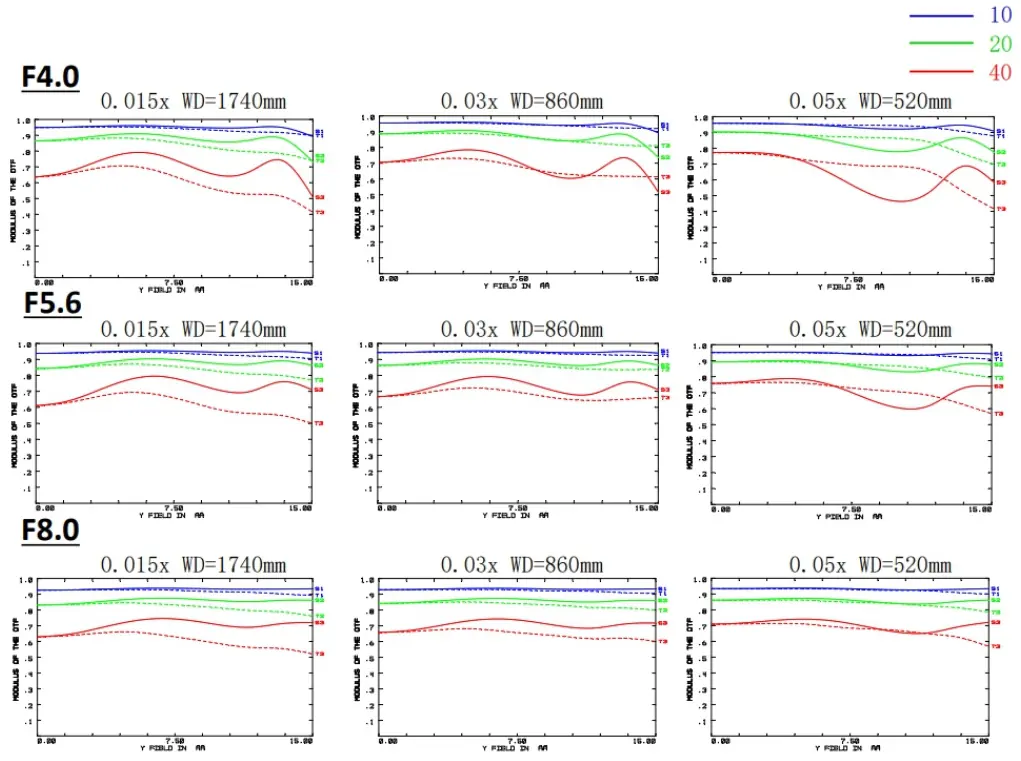

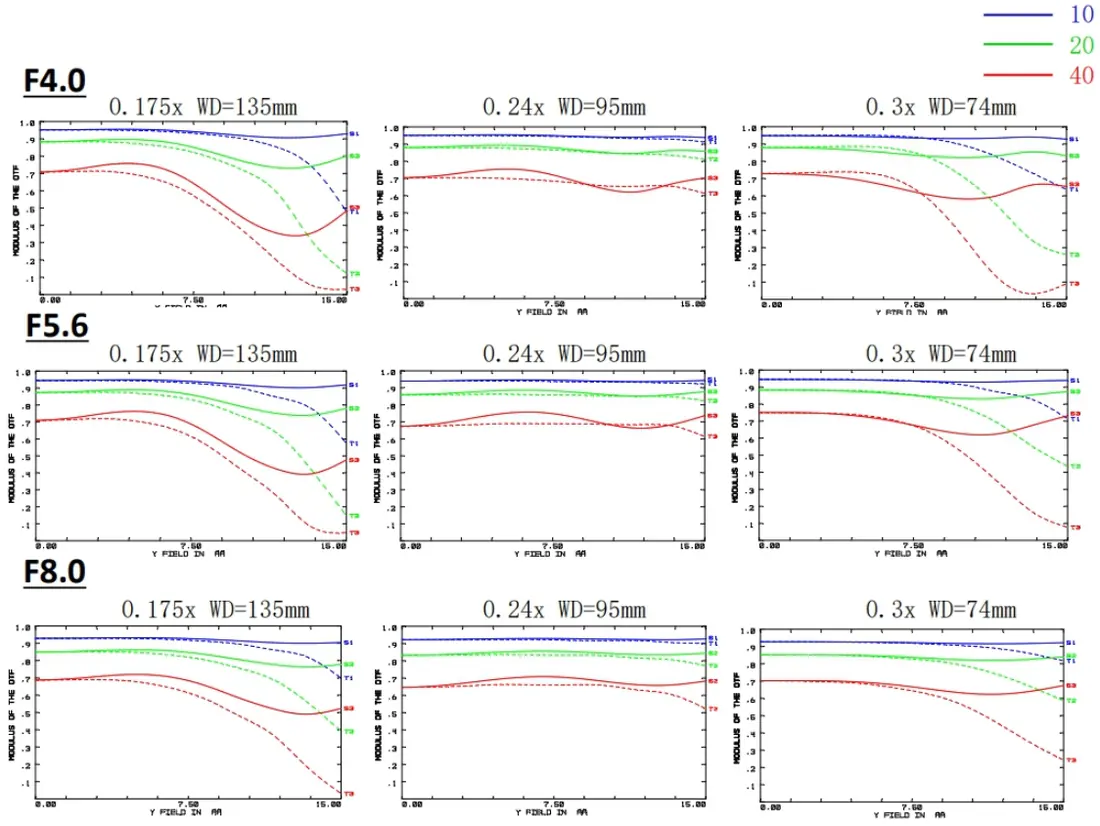

MTF based on the image height of visible spectrum

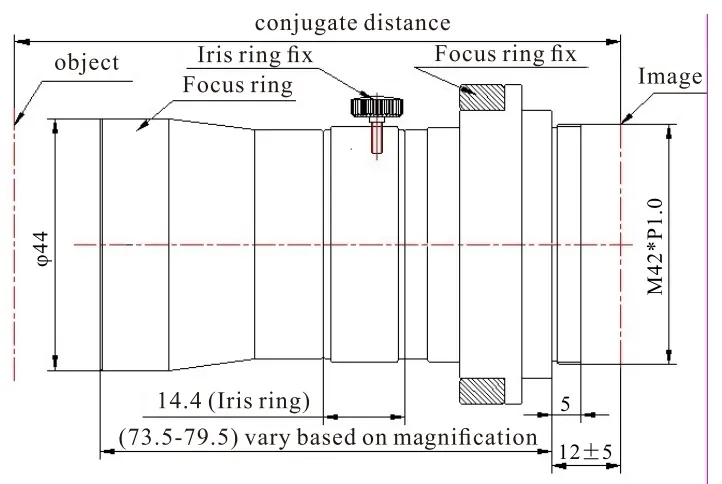

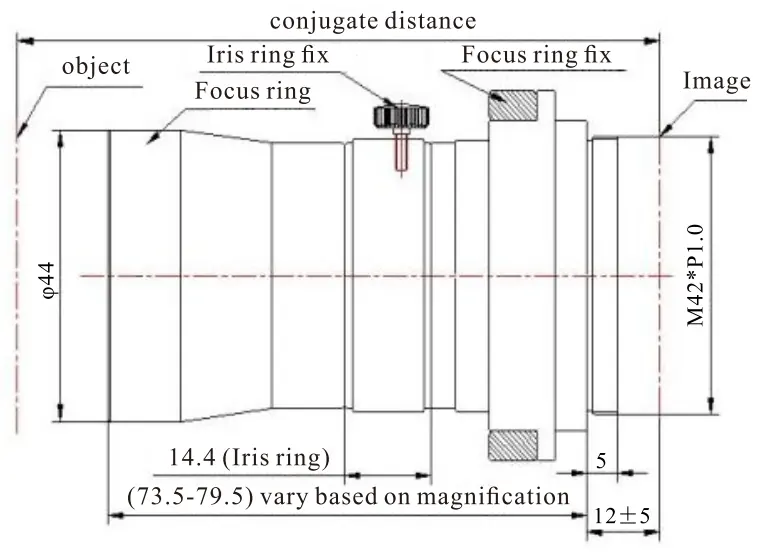

Dimensions (mm)
SBS-XS254K-008X

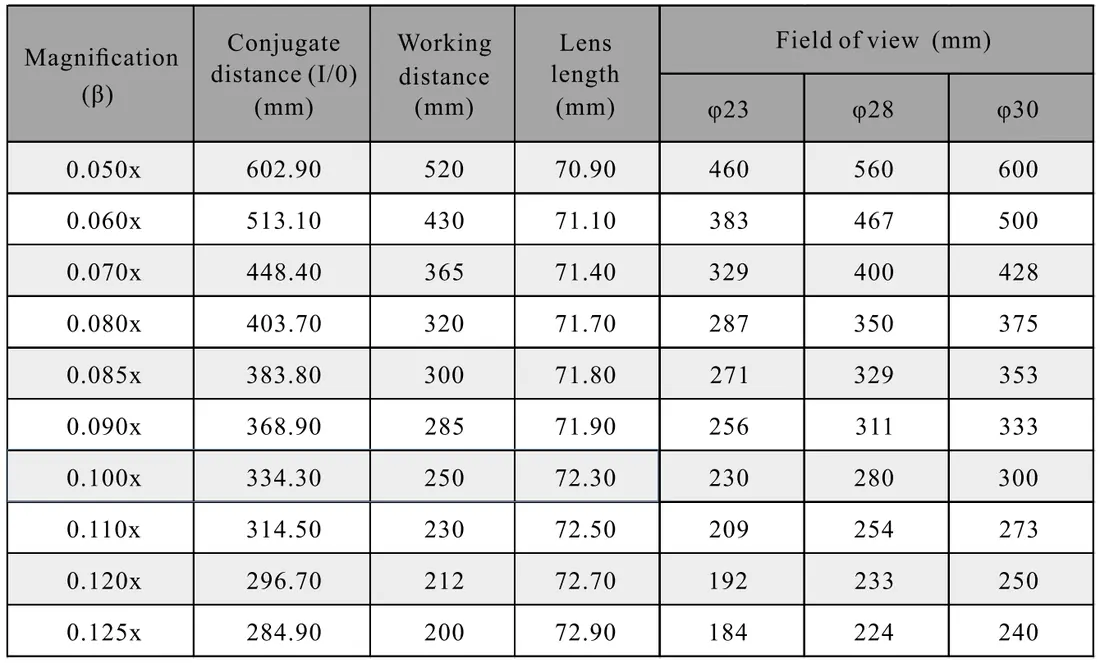

Parameter

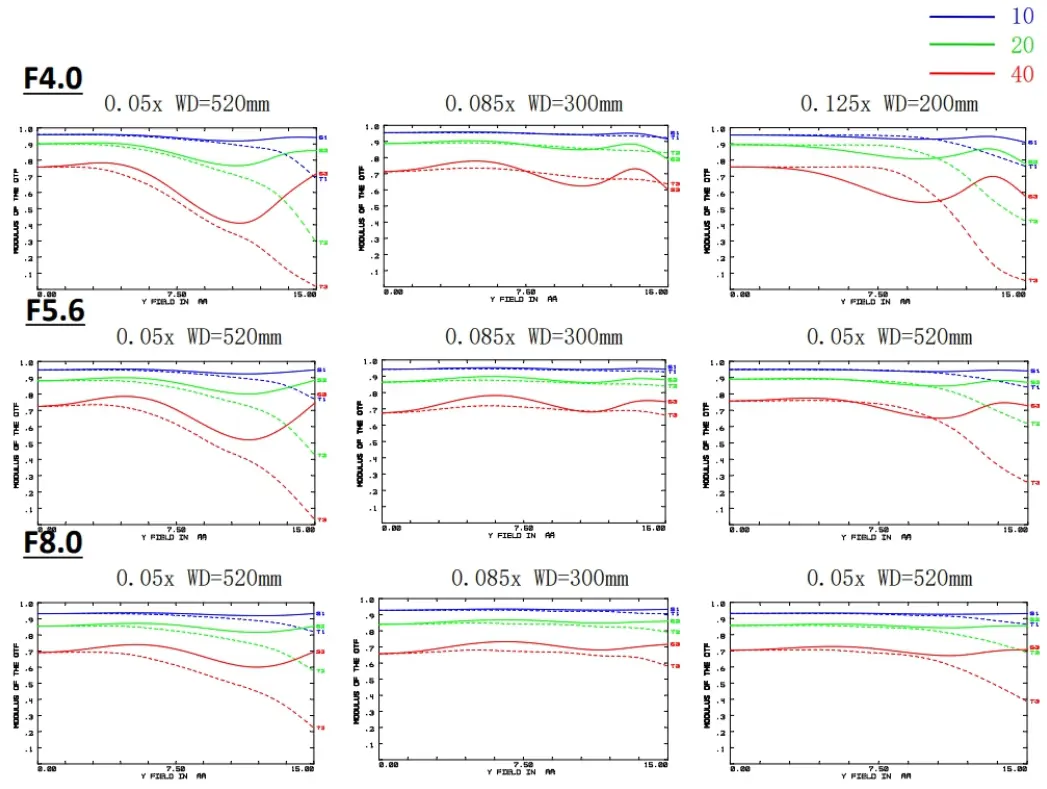

MTF based on the image height of visible spectrum
