Tunnel Lights Area Scan

Name: Tunnel Lights Area Scan
Brand: SBS Vision

Tunnel Lights Area Scan is part of the SBS Vision led machine vision lights range. The product features, parameter tables and dimension drawings on this page are the published series data for this product.

SBS Vision provides many different types of light for machine vision application. We also provide customized design service, normally we can provide the samples within 10 working days.

Request A Quote Talk To An Engineer Email Us

Download Datasheet PDF Request A Sample

Range: LED Machine Vision Lights
Supplier: SBS Vision Solution, Dongguan China
Custom design: Available, typically two weeks
Catalogue: PDF download on this page

Application Scenarios

What This Product Is Used To Inspect

Published application list for this series. If your part is close to one of these, it is worth a conversation.

Tobacco package box quality inspection.
PCB aluminum foil detection.
Glass surface defects inspection.
Film surface defects inspection.

Who it is for

PCB and Electronics Assembly Display Glass and Film Printing Labels and Packaging

Technical Data

Specifications Models And Dimensions

Parameter tables, model descriptions and dimension drawings exactly as published in the series catalogue. Tables scroll sideways on narrow screens.

Spectrum Distribution

Model Description

Parameter

Model	Power Comsuption (W,B,G)	Option	Extension Cables	Recommended Controller
SBS-TUA60	24V/1.9W	/	1m/3m/5m	All items can be
SBS-TUA150	24V/3.8W	/	1m/3m/5m	compatbile with
SBS-TUA205	24V/5W	/	1m/3m/5m	SBS-DCH24V
SBS-TUA244	24V/21.1W	/	1m/3m/5m	or SBS-DCH48V
SBS-TUA289	24V/28.8W	/	1m/3m/5m
SBS-TUA310	24V/57.6W	/	1m/3m/5m
SBS-TUA465	24V/67.2W	/	1m/3m/5m
SBS-TUA404	24V/76.8W	/	1m/3m/5m
SBS-TUA522	24V/96W	/	1m/3m/5m
SBS-TUA800	24V/134W	/	1m/3m/5m

Dimensions(mm)

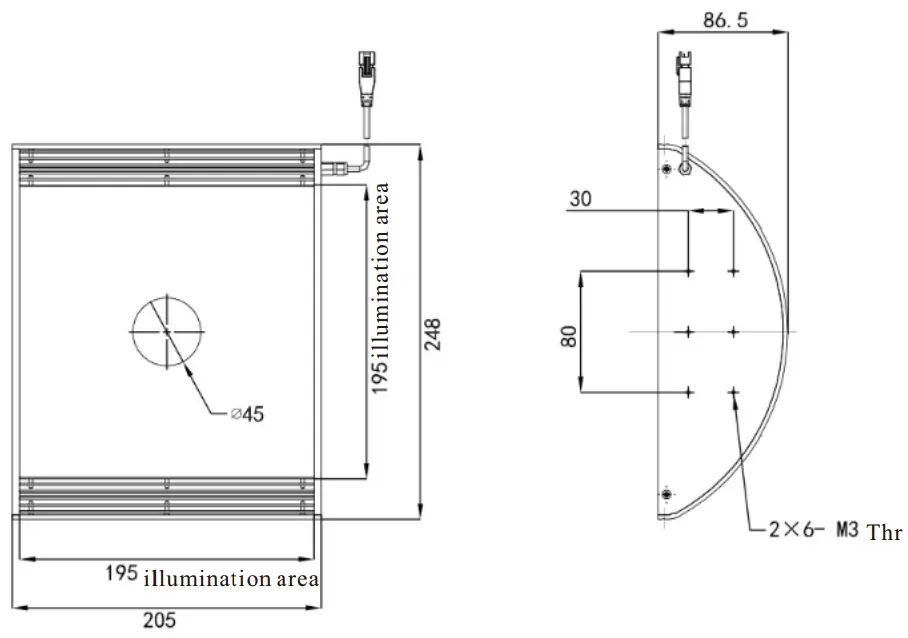

Tunnel Lights Area Scan SBS-TUA60 — SBS-TUA60

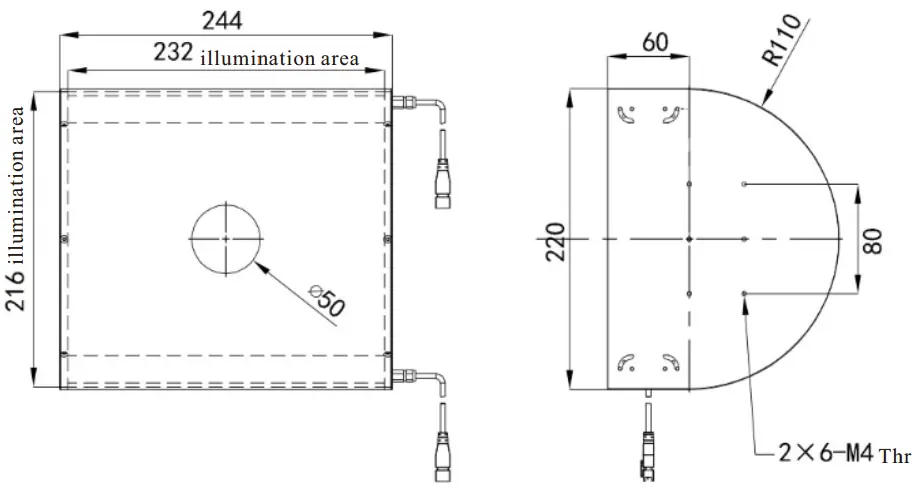

Tunnel Lights Area Scan SBS-TUA150 — SBS-TUA150

Tunnel Lights Area Scan SBS-TUA205 — SBS-TUA205

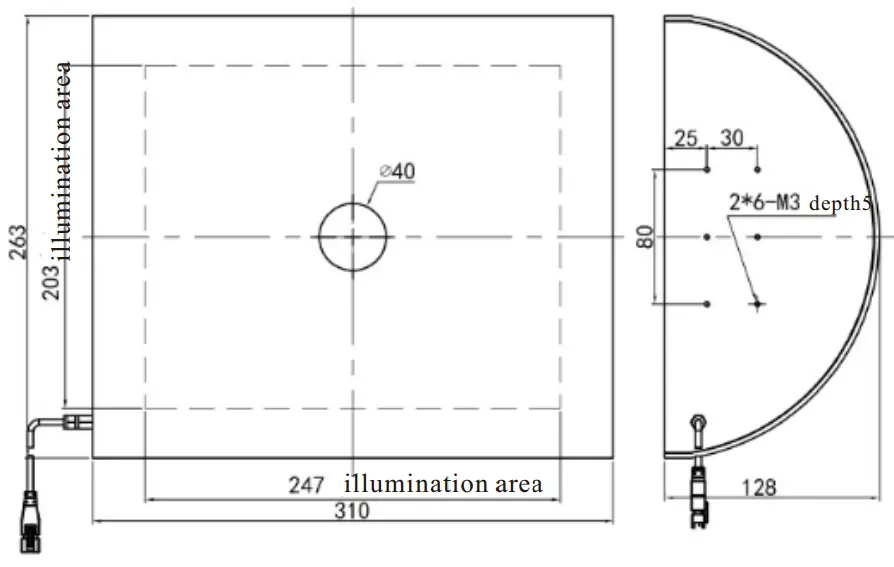

Tunnel Lights Area Scan SBS-TUA244 — SBS-TUA244

Tunnel Lights Area Scan SBS-TUA289 — SBS-TUA289

Tunnel Lights Area Scan SBS-TUA310 — SBS-TUA310

Tunnel Lights Area Scan SBS-TUA465 — SBS-TUA465

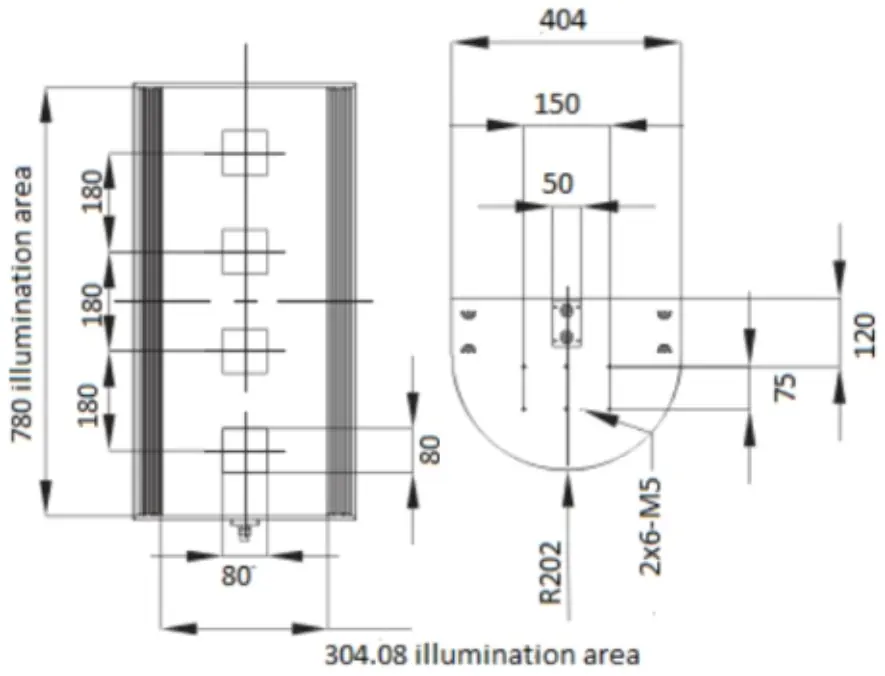

Tunnel Lights Area Scan SBS-TUA404 — SBS-TUA404

SBS-TUA522

SBS-TUA800

Comparison

How It Sits Against The Rest Of The Range

Other led machine vision lights in the SBS Vision catalogue, with the lead characteristic published for each one.

Product	Published lead characteristic
Back Lights	Back Lights is a type of LED machine vision lighting, its LED arrayed in the bottom, and the diffuser used is uniform which can get even illumination
Hole Back Lights	—
Angle Square Lights	Angle Square Lights is a type of LED machine vision lighting which has different illuminating angles, different colors combination and shadowless. It
Coaxial Lights	Coaxial Lights is a type of LED machine vision lighting used high density LEDs arrayed, and a special mirror adopted, it gets even illumination area a
Collimated Coaxial Lights	Collimated coaxial lights is a type of LED machine vision lighting used with special optical lens which are designed to make the lighting come out par
Uniformity Ring Lights	Uniformity ring lights is a type of LED machine vision lighting used special lighting guiding diffuser, it can be illuminated evenly on the reflective
Dome Lights	Dome lights is a type of LED machine vision lighting used with special diffuser, and it is dome structure, it can be illuminated evenly on the object
High Power Line Scan Tunnel Lights	High Power Line Scan Tunnel Lights is a type of LED machine vision lighting used high power LEDs with special optical structure design. It has high un
Bar Lights Combined	—
Bar Lights (3mm LED type)	Bar Lights is a type of LED machine vision lighting suitable for big field of view applications as its length can be from millimeter to meter, it is a

Customization Options

When The Catalogue Part Is Not The Right Part

More than 20 experienced customized design engineers work on lighting and optics design. Most customised products can be provided within two weeks, and for urgent demand this can be shortened to around five days.

Get A Custom Solution Upload Drawing By Email

Drawings and CAD files are handled over WhatsApp or email rather than an upload form. CAD on request via WhatsApp.

Use Guide

Specifying It Correctly

Define The Feature

Write down the smallest feature that has to be detected and the tolerance on it. That number sets the sensor resolution and the lens, before anything else is chosen.

Fix The Field Of View

Measure the largest part plus the mechanical tolerance on part position. Field of view and working distance together decide the focal length.

Choose The Lighting Geometry

Match the light to the surface: diffuse for curved or shiny parts, low angle for scratches and edges, back lighting for outline and dimension, coaxial for flat specular surfaces.

Match The Controller And Trigger

Confirm the recommended controller for the light, the trigger voltage and the response time, so the illumination is stable at the exposure the line speed forces on you.

Download PDF Catalogue

Others In The LED Machine Vision Lights Range

Back Lights View Details →

Hole Back Lights View Details →

Angle Square Lights View Details →

Coaxial Lights View Details →

Collimated Coaxial Lights for machine vision

Collimated Coaxial Lights View Details →

Uniformity Ring Lights for machine vision

Uniformity Ring Lights View Details →

Dome Lights View Details →

High Power Line Scan Tunnel Lights for machine vision

High Power Line Scan Tunnel Lights View Details →

Technical Reading

Product Guide

Line Scan Light Intensity Over One Million Lux

Measured intensity figures for fan cooled, air cooled and natural cooling line scan lights, plus the line scan tunnel light.

Application Note

Tunnel Line Scan Light for Glass Surface Inspection

Why transparent and reflective glass is hard to light, and how a tunnel line scan light changes the result.

Application Note

Multi Channel Lights With a Synchronised Camera

Sequenced multi channel lighting driven from a single trigger, captured by one synchronised camera.

FAQ

Tunnel Lights Area Scan FAQ

Is there a PDF catalogue for Tunnel Lights Area Scan

Yes. The series catalogue is available as a direct PDF download from this page and from the Download Center. Drawings and CAD data are supplied on request through WhatsApp or email.

Which controller is recommended for this product

The published parameter table lists the compatible controller series: SBS-DCH24V, SBS-DCH48V. Send the exact light model over WhatsApp and the controller will be confirmed against your channel count and trigger method.

Can Tunnel Lights Area Scan be customised

SBS Vision provides customized design service for machine vision lighting, and can normally provide the samples within 10 working days. Angles, colours, sizes and diffusers can be changed against the application. Most customised products are provided within two weeks, and urgent demand can be shortened to around five days.

How do I get a price

Send the model number and quantity through WhatsApp or email. If you are not sure which model applies, send a photo of the part, the feature you need to detect and the working distance instead, and a recommendation will come back with the price.

What else is in the led machine vision lights range

There are 24 catalogued products in this range. The category page lists all of them with their published parameter tables.

Which light type suits my part

It depends on the surface and the feature. Diffuse ring and dome lights suit curved or shiny parts, low angle ring and bar lights bring out scratches and edges, back lights and parallel back lights give outline and dimension, coaxial lights suit flat specular surfaces, and line scan lights suit continuous web material.

Get A Quotation For Tunnel Lights Area Scan

Send the model and quantity, or send the part and the defect and we will name the model for you.
