Digital Controller
Digital Controller is one kind of Controller which can control the Lights remotely when it is integrated with software.
- Range
- LED Light Controllers
- Supplier
- SBS Vision Solution, Dongguan China
- Custom design
- Available, typically two weeks
- Catalogue
- PDF download on this page
Key Benefits
Product Features
The published feature list for this series, reproduced from the SBS Vision catalogue.
- RS232/Ethernet communication.
- PMW control, short trig response time.
- Channels can be controlled individually, communication command can be combined by one code or series of codes.
- External trig signal can control the Light ON/OFF and the time of lighting.
- The intensity can be adjusted by the buttton in the panel and it also can be adjusted via PLC or other Machine Vision Devices.
Where It Is Used
Explore Applications By Industry
No separate application list is published for this series. The industry pages below collect the inspection tasks the wider led light controllers range is specified for.
Technical Data
Specifications Models And Dimensions
Parameter tables, model descriptions and dimension drawings exactly as published in the series catalogue. Tables scroll sideways on narrow screens.
Item No. Description
Parameter
| Item | Description | |
|---|---|---|
| Model | SBS-DCV24-60-4/6 | SBS-DCV24-150-4/6 |
| Lighting states | Continuous/Strobe | |
| Intensity adjust method | PWM control / lighting time control | |
| Drive mode | Constant voltage | |
| Communication | RS-232 / Ethernet | |
| Channel | 4/6 channels | 4/6 channels |
| Max output current of single channel | 2.5A | 3A |
| Total output power | 60W | 150W |
| Input voltage | AC100~240 | |
| Trigger input voltage | DC5~24 | |
| Output voltage | DC24V | |
| Lighting trigger delay | Not more than 1 us | |
| Strobe lighting time | 0~999ms | |
| Intensity level | 0~255 | |
| Weight(kg) | 0.8 | |
| PMW frequency | 140Khz, it can be setted via Panel or software | |
| Error detection display | It shows “OCP” | |
| Over current protection | It will be started when the output current is over 107% and it shows “OCP”. It will recover by restarting the ON/OFF switch | |
| Usage environment | Temperature:-10~50℃; humidity:20~85%RH (not frozen) | |
| Storage environment | Temperature:-20~60℃; humidity:20~85%RH (not frozen) | |
| Cooling way | Natural cooling | Fan cooling |
Connector

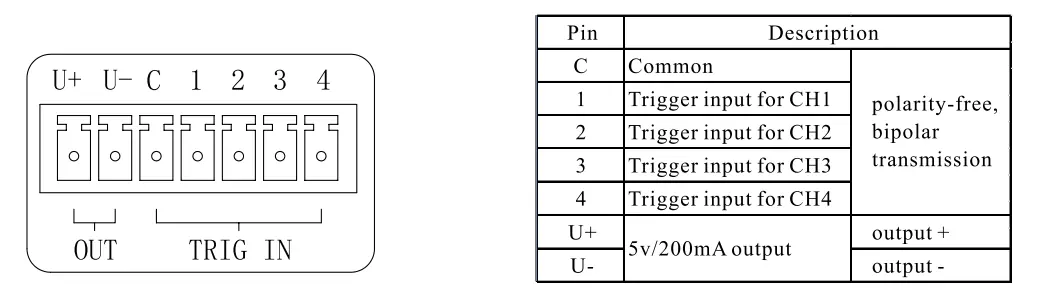

4 channels

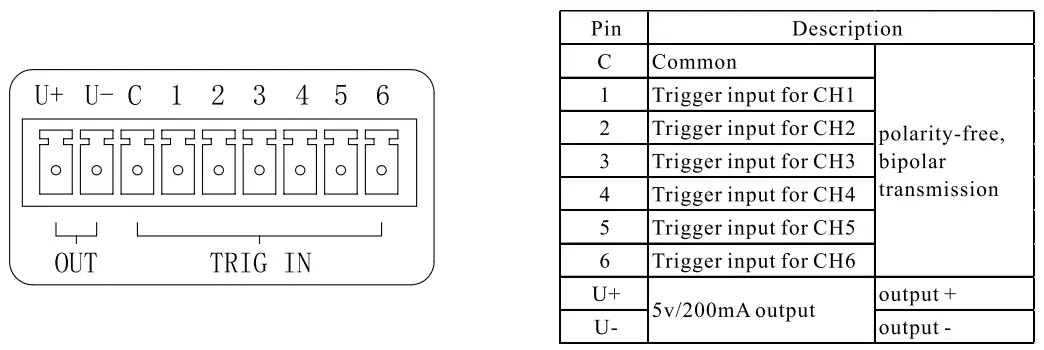

6 channels
Control mode and lighting mode

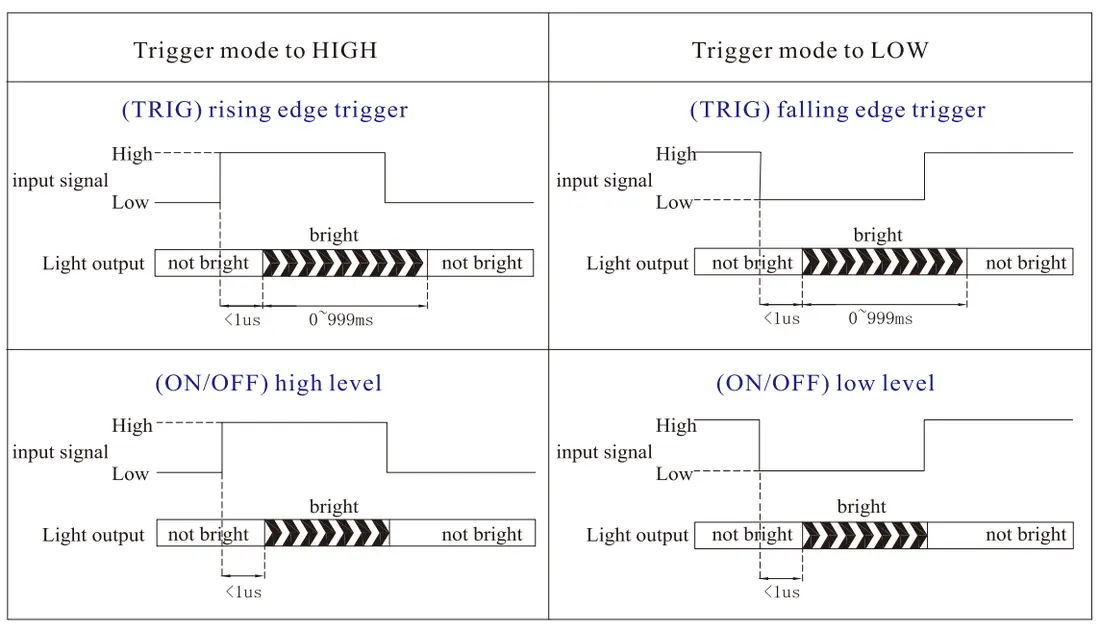

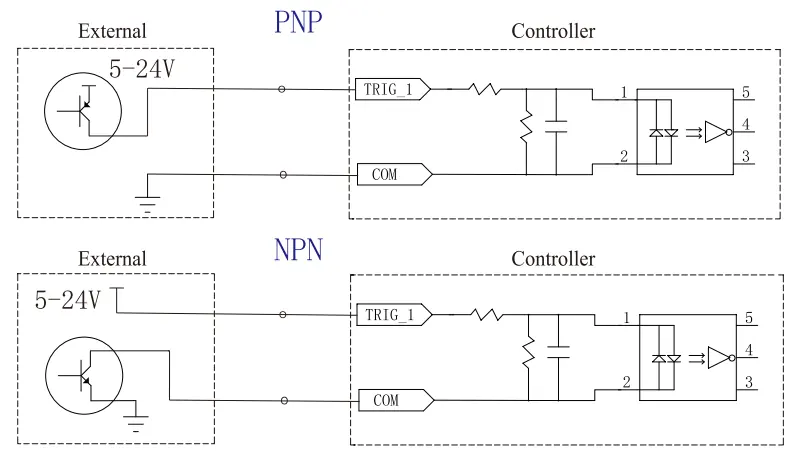

Trigger input method (take L1 as an example)
The external trigger for the Controller can’t use the high mechanical switch like relay as trigger driving.
Dimensions (mm)

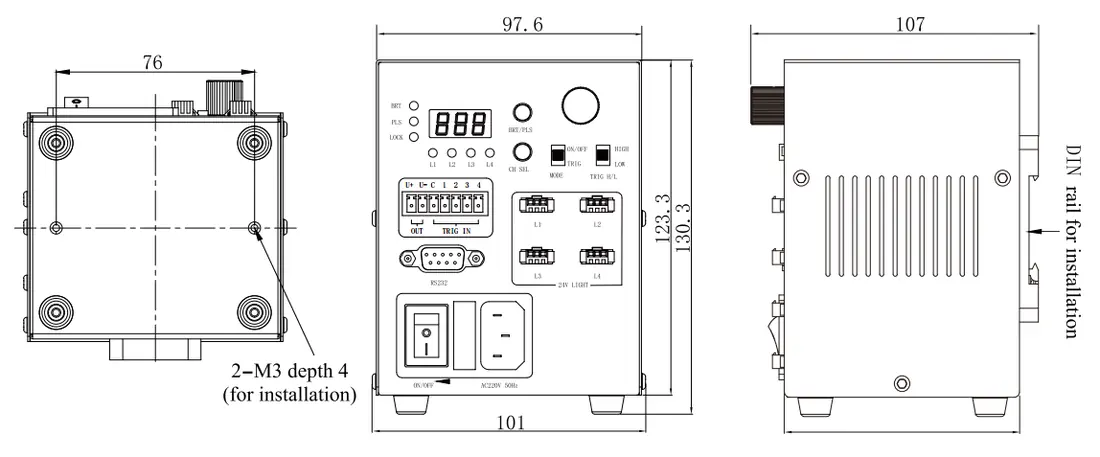

SBS-DCV24-60-4/SBS-DCV24-150-4

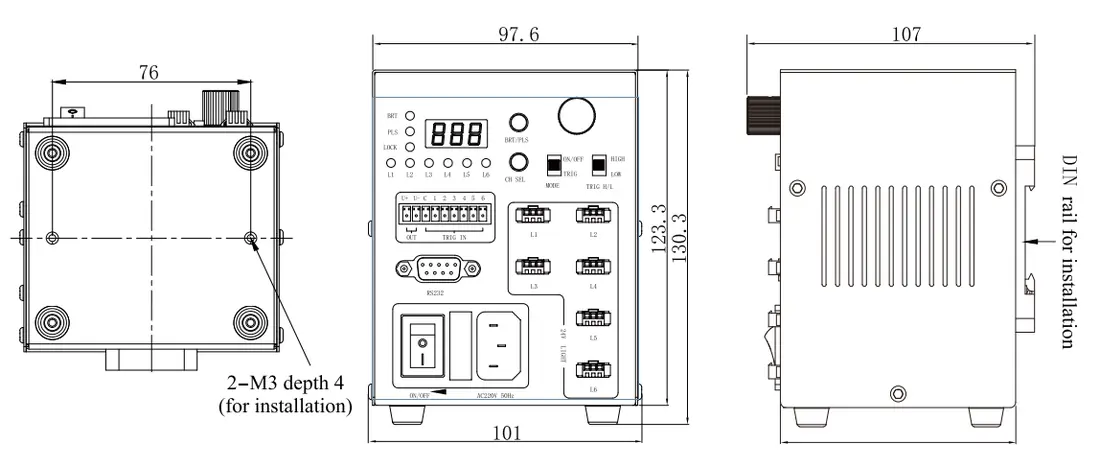

SBS-DCV24-60-6/SBS-DCV24-150-6
Comparison
How It Sits Against The Rest Of The Range
Other led light controllers in the SBS Vision catalogue, with the lead characteristic published for each one.
| Product | Published lead characteristic |
|---|---|
| Analog Controller | Intensity can be adjusted without level limited |
| Mini Controller | Control the Light remote by integrating with software. |
| High Power Digital Controller | Channels can be controlled individually, communication command can be combined by one code or series of codes. |
| Overdrive Digital Controller | Overdrive voltage can be 48V, the brightness of the LED Lights can be increased by more than 3 times. |
Customization Options
When The Catalogue Part Is Not The Right Part
Channel count, output voltage and output power are set by series. Where the standard controllers do not cover the load, the design team builds to the requirement.
More than 20 experienced customized design engineers work on lighting and optics design. Most customised products can be provided within two weeks, and for urgent demand this can be shortened to around five days.
Drawings and CAD files are handled over WhatsApp or email rather than an upload form. CAD on request via WhatsApp.
