Angle Square Lights from SBS Vision
LED Machine Vision Lights

Angle Square Lights

Angle Square Lights is a type of LED machine vision lighting which has different illuminating angles, different colors combination and shadowless. It has diffuser and higher uniformity. It is compact.

Request A Quote Talk To An Engineer Email Us
Download Datasheet PDF Request A Sample
Range
LED Machine Vision Lights
Supplier
SBS Vision Solution, Dongguan China
Custom design
Available, typically two weeks
Catalogue
PDF download on this page

Application Scenarios

What This Product Is Used To Inspect

Published application list for this series. If your part is close to one of these, it is worth a conversation.

  • Semiconductors defects inspection like IC
  • PCB defects inspection
  • Package, surface inspection
  • Label inspection

Who it is for

Semiconductor and ICPCB and Electronics AssemblyPrinting Labels and Packaging

Technical Data

Specifications Models And Dimensions

Parameter tables, model descriptions and dimension drawings exactly as published in the series catalogue. Tables scroll sideways on narrow screens.

Light Structure

Angle Square Lights Light Structure

Angle Square Lights is a type of LED machine vision lighting which has different illuminating angles, different colors combination and shadowless. It has diffuser and higher uniformity. It is compact.

Spectrum Distribution

Angle Square Lights Spectrum Distribution

Model Description

Angle Square Lights Model Description

Parameter

Item No.Power Comsuption (R)Power Comsuption (W,B,G)OptionExtension CablesRecommended Controller
SBS-ASL15090A0024V/1.7W24V/2.3WDiffuser1m/3m/5mSBS-AC24
SBS-ASL15090A3024V/1.7W24V/2.3WDiffuser1m/3m/5mSBS-DC24
SBS-ASL13888A6024V/5.4W24V/8.4WDiffuser1m/3m/5mSBS-ODC48
SBS-ASL160135A9024V/13.6W24V/17.2WDiffuser1m/3m/5m

Dimensions (mm)

Angle Square Lights
Angle Square Lights

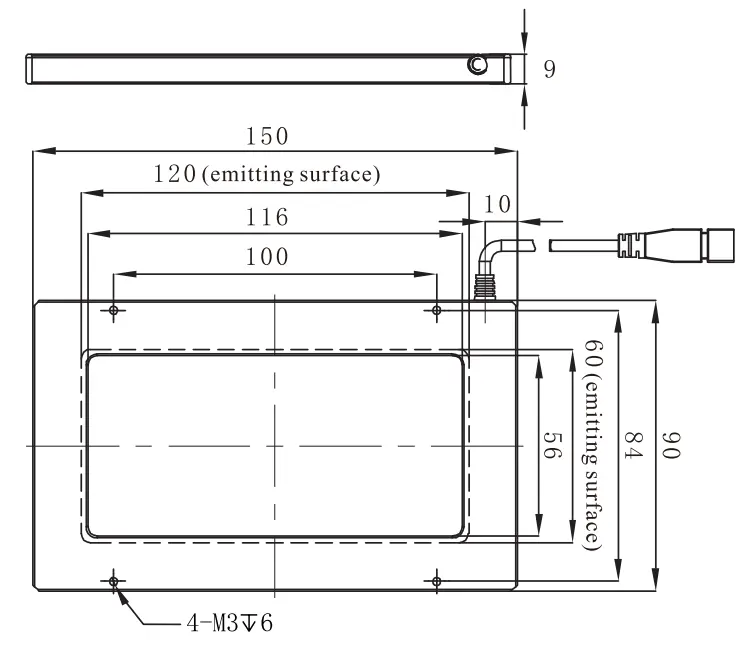

Angle Square Lights SBS-ASL15090A00
SBS-ASL15090A00

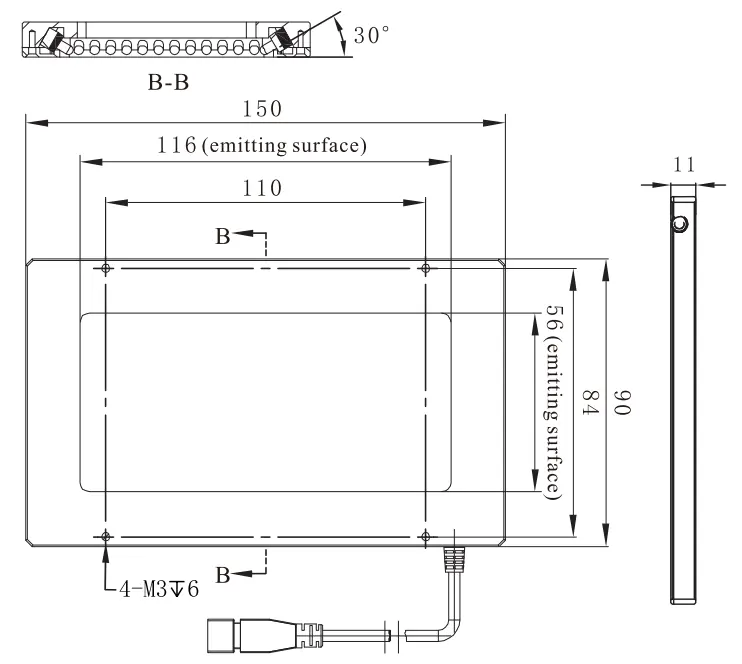

Angle Square Lights SBS-ASL15090A30
SBS-ASL15090A30

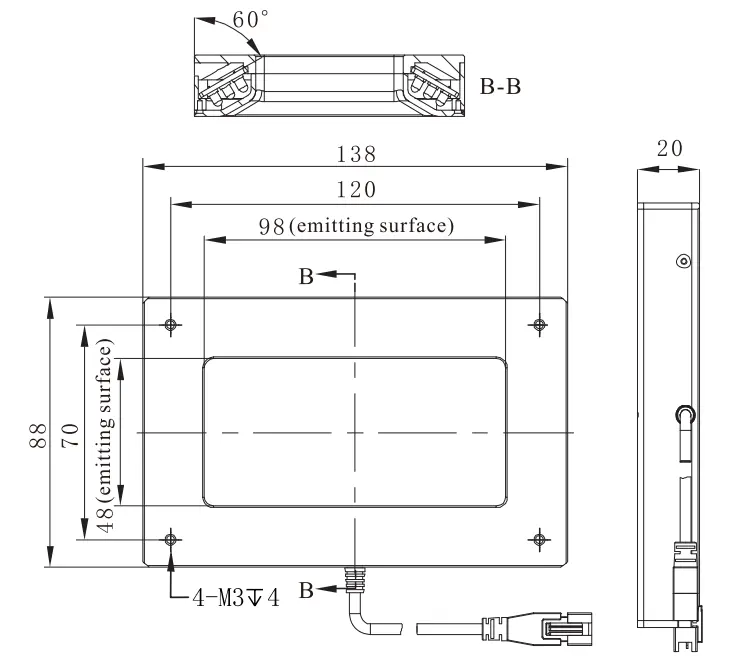

SBS-ASL13888A60

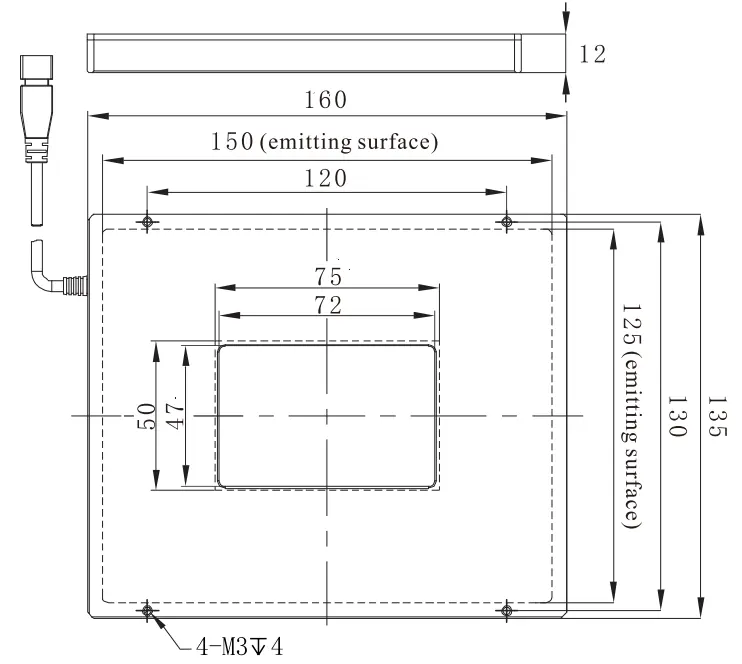

SBS-ASL160135A90

Comparison

How It Sits Against The Rest Of The Range

Other led machine vision lights in the SBS Vision catalogue, with the lead characteristic published for each one.

ProductPublished lead characteristic
Back LightsBack Lights is a type of LED machine vision lighting, its LED arrayed in the bottom, and the diffuser used is uniform which can get even illumination
Hole Back Lights—
Coaxial LightsCoaxial Lights is a type of LED machine vision lighting used high density LEDs arrayed, and a special mirror adopted, it gets even illumination area a
Collimated Coaxial LightsCollimated coaxial lights is a type of LED machine vision lighting used with special optical lens which are designed to make the lighting come out par
Uniformity Ring LightsUniformity ring lights is a type of LED machine vision lighting used special lighting guiding diffuser, it can be illuminated evenly on the reflective
Dome LightsDome lights is a type of LED machine vision lighting used with special diffuser, and it is dome structure, it can be illuminated evenly on the object
High Power Line Scan Tunnel LightsHigh Power Line Scan Tunnel Lights is a type of LED machine vision lighting used high power LEDs with special optical structure design. It has high un
Bar Lights Combined—
Bar Lights (3mm LED type)Bar Lights is a type of LED machine vision lighting suitable for big field of view applications as its length can be from millimeter to meter, it is a
Coaxial Line Scan Lights—

Customization Options

When The Catalogue Part Is Not The Right Part

SBS Vision provides customized design service for machine vision lighting, and can normally provide the samples within 10 working days. Angles, colours, sizes and diffusers can be changed against the application.

More than 20 experienced customized design engineers work on lighting and optics design. Most customised products can be provided within two weeks, and for urgent demand this can be shortened to around five days.

Get A Custom Solution Upload Drawing By Email

Drawings and CAD files are handled over WhatsApp or email rather than an upload form. CAD on request via WhatsApp.

Use Guide

Specifying It Correctly

Define The Feature

Write down the smallest feature that has to be detected and the tolerance on it. That number sets the sensor resolution and the lens, before anything else is chosen.

Fix The Field Of View

Measure the largest part plus the mechanical tolerance on part position. Field of view and working distance together decide the focal length.

Choose The Lighting Geometry

Match the light to the surface: diffuse for curved or shiny parts, low angle for scratches and edges, back lighting for outline and dimension, coaxial for flat specular surfaces.

Match The Controller And Trigger

Confirm the recommended controller for the light, the trigger voltage and the response time, so the illumination is stable at the exposure the line speed forces on you.

Download PDF Catalogue

Related Products

Others In The LED Machine Vision Lights Range

Back Lights for machine vision Back Lights View Details → Hole Back Lights for machine vision Hole Back Lights View Details → Coaxial Lights for machine vision Coaxial Lights View Details → Collimated Coaxial Lights for machine vision Collimated Coaxial Lights View Details → Uniformity Ring Lights for machine vision Uniformity Ring Lights View Details → Dome Lights for machine vision Dome Lights View Details → High Power Line Scan Tunnel Lights for machine vision High Power Line Scan Tunnel Lights View Details → Bar Lights Combined for machine vision Bar Lights Combined View Details →

Related solutions

Custom Lighting and Optics DesignStructured Light 3D and Curved Surface InspectionHigh Speed Line Scan Imaging

Related Articles

Technical Reading

Product Guide

Line Scan Light Intensity Over One Million Lux

Measured intensity figures for fan cooled, air cooled and natural cooling line scan lights, plus the line scan tunnel light.

Application Note

Tunnel Line Scan Light for Glass Surface Inspection

Why transparent and reflective glass is hard to light, and how a tunnel line scan light changes the result.

Application Note

Multi Channel Lights With a Synchronised Camera

Sequenced multi channel lighting driven from a single trigger, captured by one synchronised camera.

FAQ

Angle Square Lights FAQ

Is there a PDF catalogue for Angle Square Lights
Yes. The series catalogue is available as a direct PDF download from this page and from the Download Center. Drawings and CAD data are supplied on request through WhatsApp or email.
Which controller is recommended for this product
The published parameter table lists the compatible controller series: SBS-AC24, SBS-DC24, SBS-ODC48. Send the exact light model over WhatsApp and the controller will be confirmed against your channel count and trigger method.
Can Angle Square Lights be customised
SBS Vision provides customized design service for machine vision lighting, and can normally provide the samples within 10 working days. Angles, colours, sizes and diffusers can be changed against the application. Most customised products are provided within two weeks, and urgent demand can be shortened to around five days.
How do I get a price
Send the model number and quantity through WhatsApp or email. If you are not sure which model applies, send a photo of the part, the feature you need to detect and the working distance instead, and a recommendation will come back with the price.
What else is in the led machine vision lights range
There are 24 catalogued products in this range. The category page lists all of them with their published parameter tables.
Which light type suits my part
It depends on the surface and the feature. Diffuse ring and dome lights suit curved or shiny parts, low angle ring and bar lights bring out scratches and edges, back lights and parallel back lights give outline and dimension, coaxial lights suit flat specular surfaces, and line scan lights suit continuous web material.
