Russia 10kV Wall Bushing Ceramic Insulator IOR-10-3.75 II UKhL2

Name: Russia 10kV Wall Bushing Ceramic Insulator IOR-10-3.75 II UKhL2
Brand: Risheng PX

Russia 10kV wall bushing ceramic insulator with flange

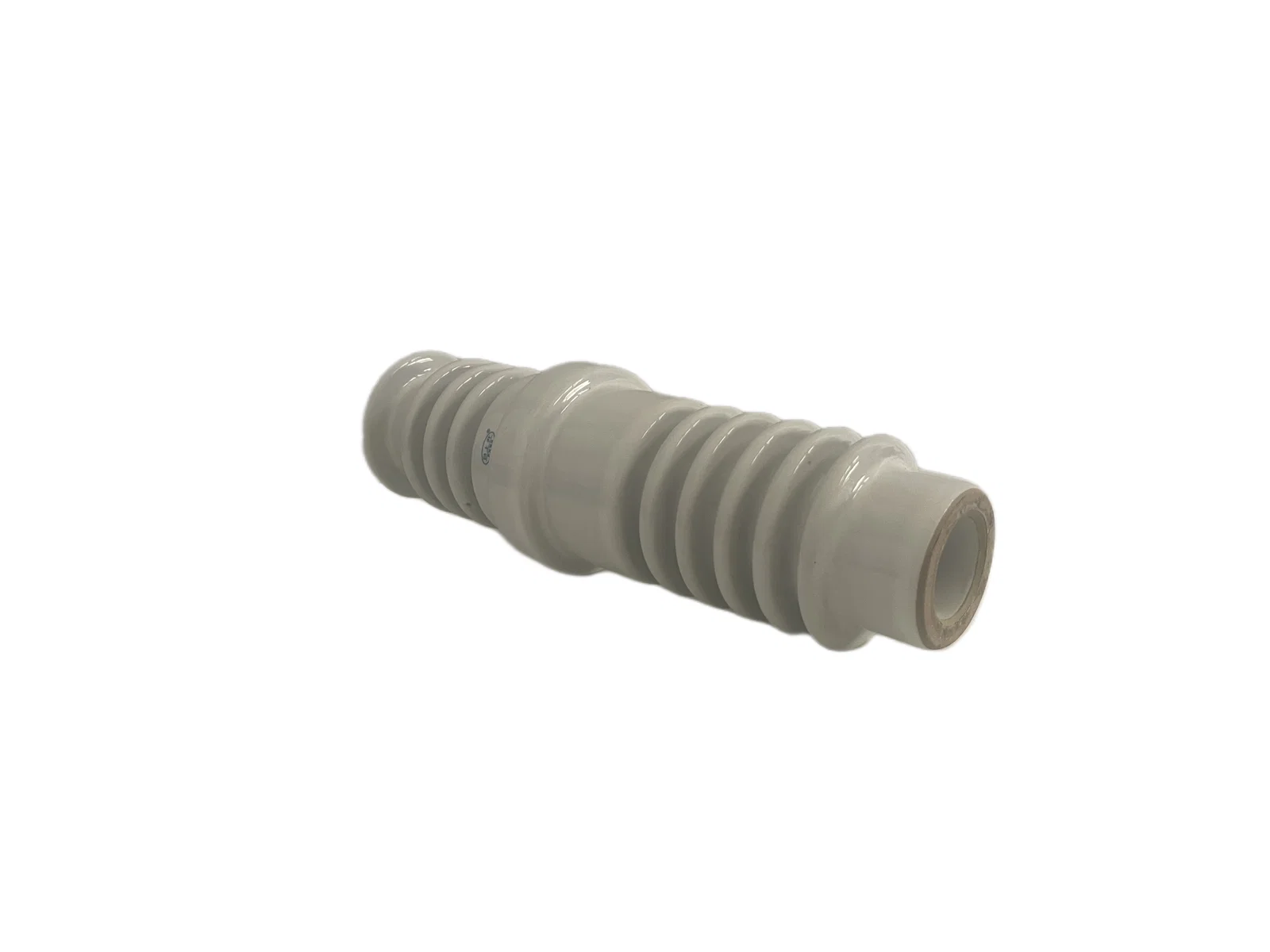

10kV wall bushing insulator conductor end

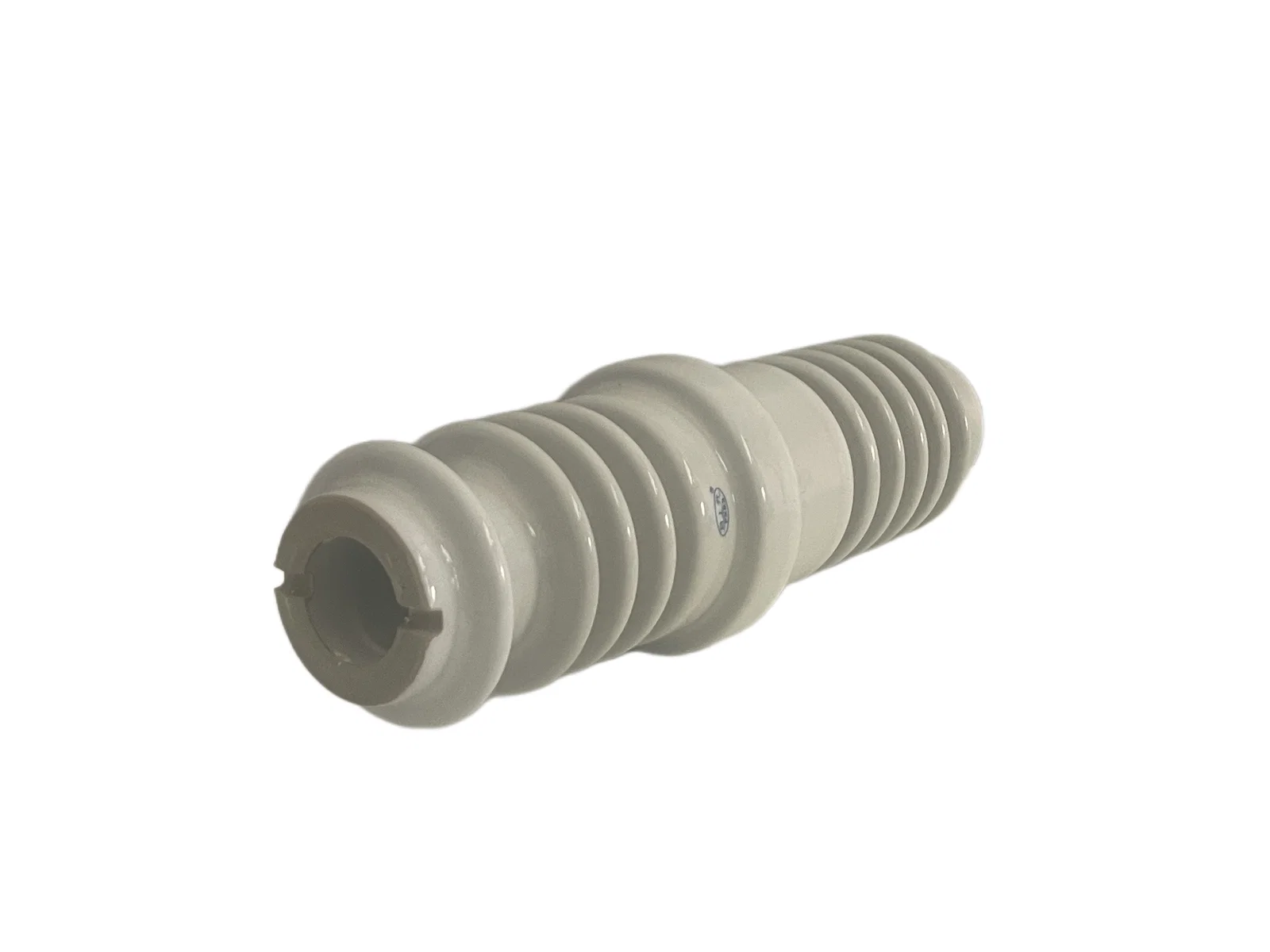

10kV wall bushing insulators ready for packing

Wall Bushings And Other Insulators

Product Overview

A GOST wall bushing for installing and insulating conductive parts in enclosed and complete distribution assemblies at power stations and substations, and for connecting them to open switchgear or transmission lines at up to 10 kV and 100 Hz. It is rated 630 A with an 80 kV lightning impulse test voltage, a 7.5 kN minimum bending failure force and a 300 mm leakage path, for atmosphere types I or II to GOST 15150-69.

Request A Quote Email Us

Key benefits

Why Buyers Choose This Part

630 A rating at 10 kV through an enclosure wall
7.5 kN minimum bending failure force for externally loaded connections
300 mm leakage path on a compact indoor-to-outdoor penetration
Classified for atmosphere types I and II under GOST 15150-69

Application scenarios

Where It Is Used

Connecting enclosed distribution assemblies to an outdoor switchyard
Complete distribution devices at power stations and substations
Enclosed busbar runs passing through a barrier wall
Switchroom refurbishment where the GOST designation must be matched

Who it is for

Who It Suits

Switchgear manufacturers building complete distribution devices
Power station and substation maintenance engineers
Distributors supplying GOST wall bushings

Problems it solves

What Goes Wrong Without The Right Part

Wall penetrations that have to be both insulated and mechanically sound
Connections that bend the bushing when the outdoor conductor is tensioned
GOST clauses that a general purpose bushing cannot be signed off against
Leakage paths too short for the site atmosphere class

Technical features

How It Is Built

Rated voltage 10 kV
Rated current 630 A
80 kV lightning impulse test voltage
7.5 kN minimum bending failure force
300 mm path leakage length
Suitable for type I and II atmospheres to GOST 15150-69
Frequencies up to 100 Hz

Specifications

Published Figures For This Product

Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.

Voltage	10 kV
Current	630 A
Lightning Impulse Test Voltage	80 kV
Minimum Bending Failure Force	7.5 kN
Path Leakage Length	300 mm

Materials

Electrotechnical ceramic body
Metal flange and conductor

Manufacturing

Process

Forming
Glazing
Firing
Flange assembly
Impulse and bending testing

Quality control

Testing

Bending failure force proof test against the 7.5 kN figure
80 kV lightning impulse test voltage applied
Leakage path verified at 300 mm

Certifications

Certification

Classified to GOST 15150-69
ISO 9001 quality management system

Customisation

Customisation Options

Produced to the designation on your drawing
Flange pattern adapted to the existing wall opening
One year quality guarantee period

Comparison

How It Compares

IPU-10/630-7.5 I UKhL1	Same 10 kV, 630 A and 7.5 kN class. The IPU listing calls out construction type I with the oval flange, so order by the designation your drawing quotes.
Indoor post insulator	This part passes through a wall and seals the penetration. A post insulator only supports a conductor inside one enclosure.

Use guide

Before You Order And After It Arrives

Confirm the wall opening matches the flange before ordering
Seal the penetration at the flange face on installation
Keep external conductor loads within the 7.5 kN bending figure
Check the leakage surface is clean before each energisation
