Porcelain Insulators For Switchgear Manufacturers
GOST material clauses that general suppliers will not commit to
Pain points
What Gets In The Way
- GOST material clauses that general suppliers will not commit to
- Threaded cubicle seats that flange-mount post insulators will not fit
- Wall penetrations that have to be insulated and sealed at the same time
- Post insulators flexing under busbar short-circuit forces
Requirements
What This Sector Needs From A Supplier
- Post insulators with published cantilever and torsion ratings
- GOST ceramic, fitting alloy and bonding cement clauses met by specification
- Round and oval flange wall bushings to match existing openings
- Indoor bushings with a stated bearing capacity
Recommended
Products For This Sector
C4-80 II 10kV Porcelain Post Insulator GOST
- Minimum Mechanical Breaking Force 4 kN
- Creepage Distance 300 mm
- Torsion Strength 100 N.m

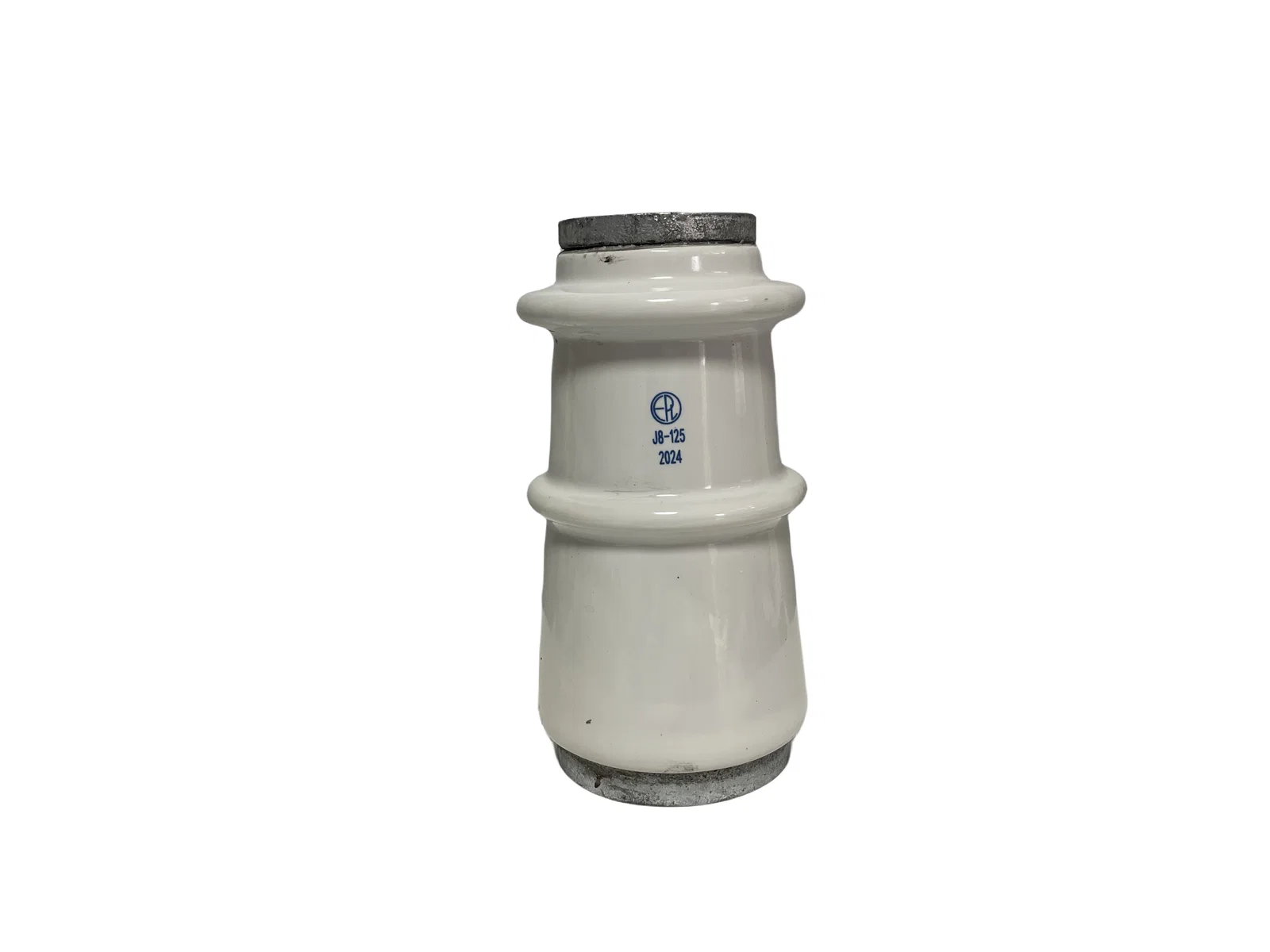

J8-125 Post Ceramic Insulator 8kN Bending Strength
- BIL 125 kV
- Bending Strength 8 kN
- Maximum Shed And Outer Diameter 110 mm
IPU-10/630-7.5 I UKhL1 Wall Bushing With Oval Flange
- Rated Current 630 A
- Minimum Mechanical Bending Failure Load 7.5 kN
- Rated Voltage 10 kV
IP-10-100 Indoor Bushing Insulator 10kV Russia Standard
- Minimum Creepage Distance 210 mm
- Bearing Capacity 12.5 kN
- Weight 5.3 kg
Ranges
Product Families To Start From
Typical scenarios
Where These Parts End Up
- Busbar supports inside distribution switchgear cubicles
- Disconnector and circuit breaker operating shaft supports
- Enclosed distribution devices at power stations and substations
- Package substations connecting to outdoor switchyards
Delivery
How We Deliver
- Proof loading applied against the published cantilever or bending rating
- Certificates of the management systems available on request
- Export packing to your route
- One year quality guarantee period
Process
From Enquiry To Delivery
Send the cubicle drawing with the seat and opening details
We confirm thread sizes, flange shape and mechanical ratings
Material clauses confirmed against the GOST or IEC reference you quote
Production, proof loading and despatch
Questions
Switchgear Manufacturers Questions
Which GOST standards do the post insulators meet?
Group 120 electrotechnical ceramic to GOST 20419-83, AK12 aluminium alloy fittings to GOST 1583-93 and PTs-500 DON bonding cement to GOST 10178-85, with silicone sealed joints.
What cantilever and torsion ratings are published?
4kN breaking force with 100N.m torsion on the C4-80 II, and 8kN bending strength on the J8-125.
Can you supply oval flange wall bushings?
Yes. Construction type I with the oval flange is produced, along with round flange versions.
What bearing capacity do the indoor bushings have?
12.5kN on the IP-10-100, with a trough type connection method.
Knowledge
Guides For This Sector
Guide
Low Voltage Post Insulators Principles Applications And Selection
A low voltage post insulator has to do two things at once: stop the current and carry the load. Getting the selection right means
GuideWhat Is A High Voltage Transformer Insulator
The high voltage transformer insulator is a physical barrier isolating the high voltage parts of a transformer from the lower volt
Supplying Switchgear Manufacturers
Send the drawing, the standard you work to and the quantity. We reply within 24 hours with a pattern confirmation and a date.
