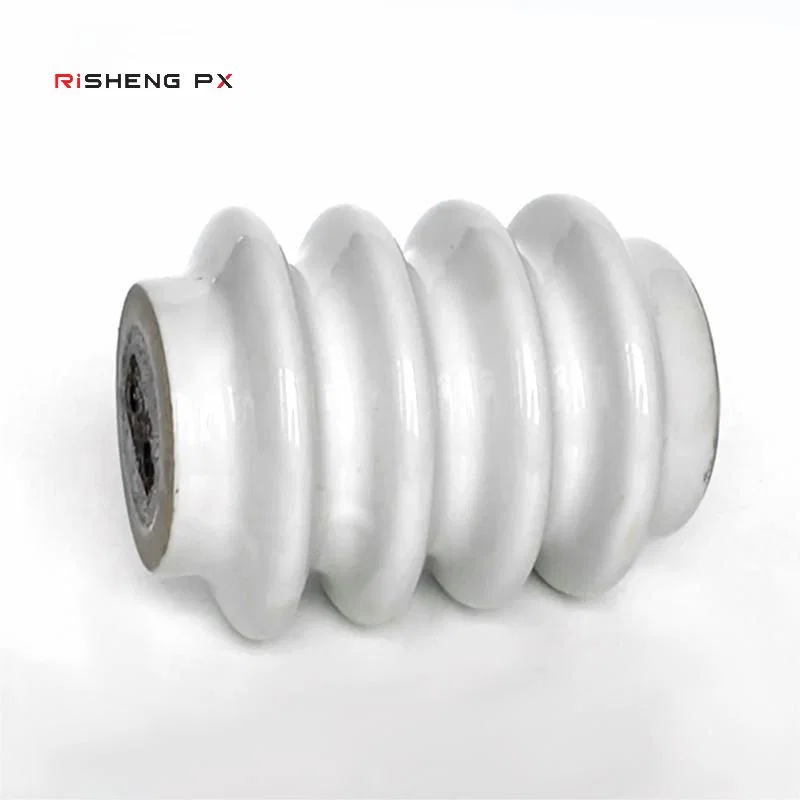

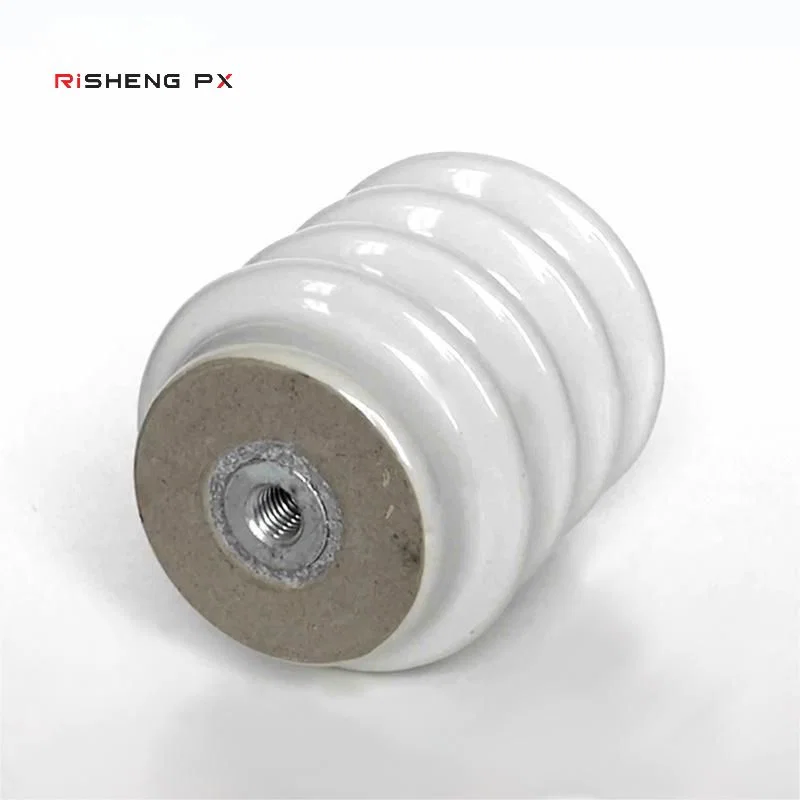

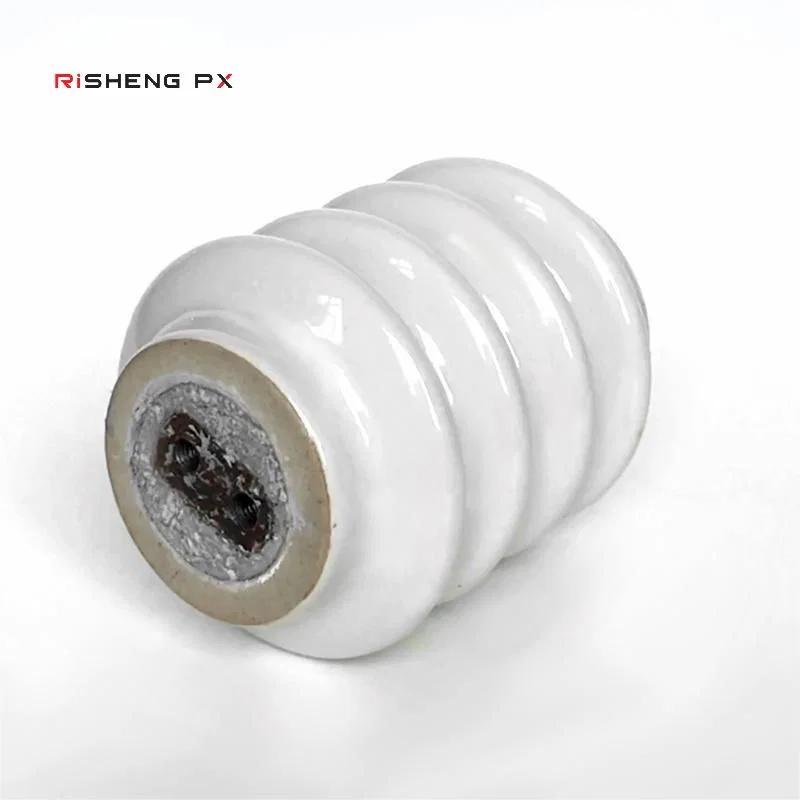

IO-10/4 UKhL3 Post Bushing Insulator Catalogue Item
Wall Bushings And Other Insulators
Product Overview
A catalogue listing of the IO-10/4 UKhL3 and IOR-10/3.75 II UKhL2 post bushing insulator, held under the bushing section of the range rather than with the post insulators. It covers the same GOST ceramic part used to insulate and fix conductors at 10 kV on CIS networks. Order against the designation printed on your parts list and we will confirm the drawing figures before production.
Key benefits
Why Buyers Choose This Part
- Ordered against the exact designation your parts list carries
- Same GOST ceramic construction used across the IO and IOR range
- Supplied alongside the matching wall bushings from one factory
- Produced to drawing or sample where the original document is lost
Application scenarios
Where It Is Used
- 10 kV distribution assemblies on CIS drawing standards
- Procurement matching a bushing-section catalogue reference
- Replacement where the installed part carries the IO or IOR designation
- Projects combining post insulators and wall bushings in one order
Who it is for
Who It Suits
- Buyers ordering from CIS catalogues by designation
- Utilities maintaining 10 kV GOST-pattern assemblies
- Distributors consolidating IO and IOR references
Problems it solves
What Goes Wrong Without The Right Part
- Catalogue references that appear under more than one section
- Suppliers who will not quote against a GOST designation
- Uncertainty about which drawing figures apply to a listing
- Split orders between post insulators and bushings
Technical features
How It Is Built
- IO-10/4 UKhL3 and IOR-10/3.75 II UKhL2 designations
- 10 kV class GOST ceramic construction
- Post bushing form for insulating and fixing conductors
- Listed in the transformer bushing section of the range
Specifications
Published Figures For This Product
Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.
| Class GOST Ceramic Construction | 10 kV |
|---|
Materials
Materials
- Electrotechnical ceramic body
- Metal fixing hardware
Manufacturing
Process
- Forming
- Glazing
- Firing
- Assembly
- Routine electrical test
Quality control
Testing
- Dimensional check against the confirmed drawing
- Glaze and body inspection
- Routine electrical test before despatch
Certifications
Certification
- ISO 9001 quality management system
Customisation
Customisation Options
- Marked to whichever designation your drawing uses
- Produced to drawing or sample
- Export packing to your route
Comparison
How It Compares
| The post insulator listings of the same designation | The same IO-10/4 and IOR-10/3.75 part is also catalogued under post insulators with published figures of 54 mm diameter, 272 mm height and 75 kV minimum puncture voltage. |
|---|---|
| IP-10-100 indoor bushing | The IP-10-100 is a larger indoor bushing at 200 mm high with 12.5 kN bearing capacity. Different duty, so confirm which the drawing calls for. |
Use guide
Before You Order And After It Arrives
- Quote the exact designation from your parts list on the enquiry
- Ask for the dimensioned drawing before confirming the order
- Mount square to the support surface
- Inspect the glaze after winter exposure
Questions
IO-10/4 UKhL3 Post Bushing Insulator Catalogue Item Questions
Is this the same part as the IO-10/4 post insulator?
It is the same GOST designation, catalogued here under the bushing section. The post insulator listings publish 54 mm diameter, 272 mm height and 75 kV minimum puncture voltage for the same part.
Why does the same designation appear more than once?
The original catalogue holds several listings so buyers can order against the exact reference on their own parts list. We confirm the drawing figures before production either way.
Can you send the drawing before I order?
Yes. Message us on WhatsApp with the designation and we will send the dimensioned drawing.
What voltage class is it?
10 kV.
Do you produce from samples?
Yes, we produce to customer drawings and samples.
What guarantee applies?
A one year quality guarantee period.
