Wall Bushings And Other Insulators
Through-wall bushings, indoor bushing insulators and GOST pattern parts that fall outside the main transformer bushing families.
5 products
Every Wall Bushings And Other Insulators We Make
Russia 10kV Wall Bushing Ceramic Insulator IOR-10-3.75 II UKhL2
- Voltage 10 kV
- Current 630 A
- Lightning Impulse Test Voltage 80 kV
IP-10-100 Indoor Bushing Insulator 10kV Russia Standard
- Minimum Creepage Distance 210 mm
- Bearing Capacity 12.5 kN
- Weight 5.3 kg
IO-10/4 UKhL3 Post Bushing Insulator Catalogue Item
- Class GOST Ceramic Construction 10 kV

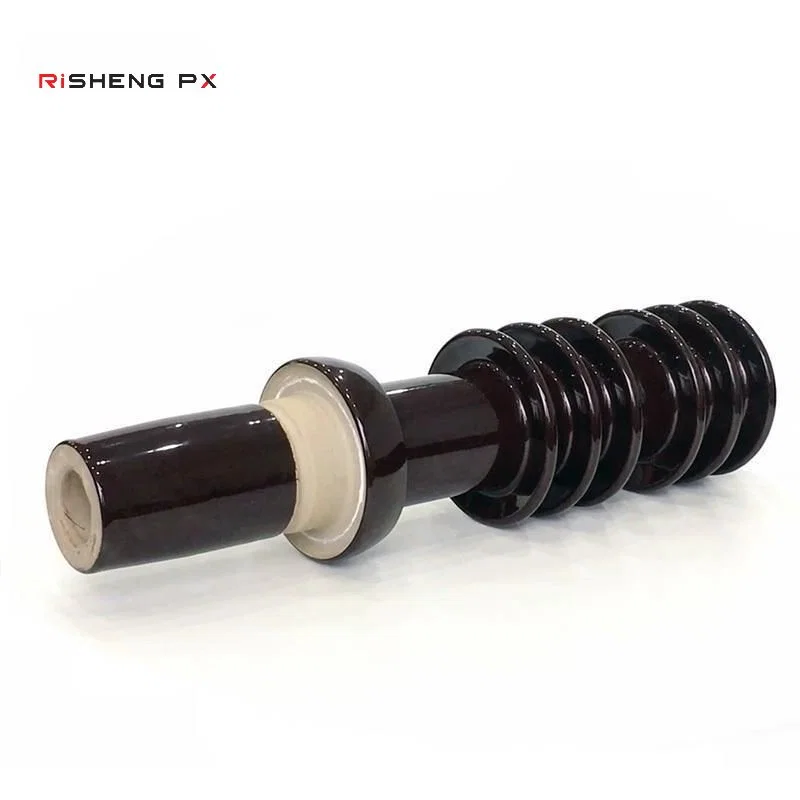

BUCHA 24kV 160A HV Porcelain Bushing C-450
- Creepage Distance, Catalogued As C-450 450 mm
- Diameter 105 mm
- Height 550 mm

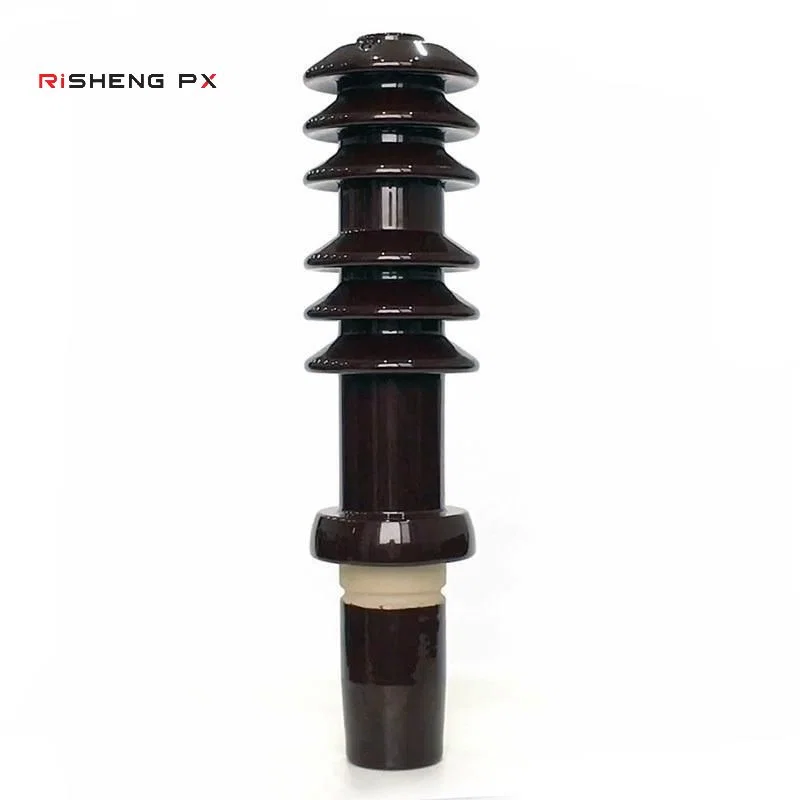

BUCHA 24kV 160A 450mm Ceramic Bushing Isolators
- Creepage Distance 450 mm
- Diameter 105 mm
- Height 550 mm
Problems this range solves
What Buyers Come To Us With
- Wall penetrations that must be insulated and weather-sealed at once
- GOST clauses that a general purpose bushing cannot be signed off against
- Bushings that fail in bending when the external conductor is tensioned
- Oval flange openings that a round flange bushing will not fit
Core advantages
What The Range Gives You
- IPU and IOR wall bushings at 10kV and 630A with 7.5kN bending failure force
- Classified for atmosphere types I and II to GOST 15150-69
- IP-10-100 indoor bushings with 12.5kN bearing capacity
- Round and oval flange constructions both produced
Who it is for
Suited To
- Switchgear and package substation manufacturers
- Utilities maintaining enclosed distribution assemblies
- Distributors supplying GOST pattern parts
Application scenarios
Where It Is Used
- Indoor to outdoor switchgear connections
- Enclosed busbar runs through a barrier wall
- Complete distribution devices at power stations
- Switchroom refurbishment on existing openings
Questions
Wall Bushings And Other Insulators Questions
What GOST classification do the wall bushings carry?
UKhL1 climatic execution to GOST 15150-69, suitable for atmosphere types I and II.
What mechanical rating do they hold?
A minimum bending failure force of 7.5kN on the 10kV 630A wall bushings.
Can you match an oval flange opening?
Yes. Construction type I with the oval flange is produced, as well as round flange versions.
Are the indoor bushings suitable outdoors?
No. The IP-10-100 is specified for indoor installation. Use the wall bushing range for weather-exposed penetrations.
Can you produce from a sample?
Yes, we produce to customer drawings and samples.
Talk To An Engineer About Wall Bushings And Other Insulators
Send the drawing, the pollution class at the site, or a photograph of the part you are replacing. A reply comes back within 24 hours.
