IP-10-100 Indoor Bushing Insulator 10kV Russia Standard
Wall Bushings And Other Insulators
Product Overview

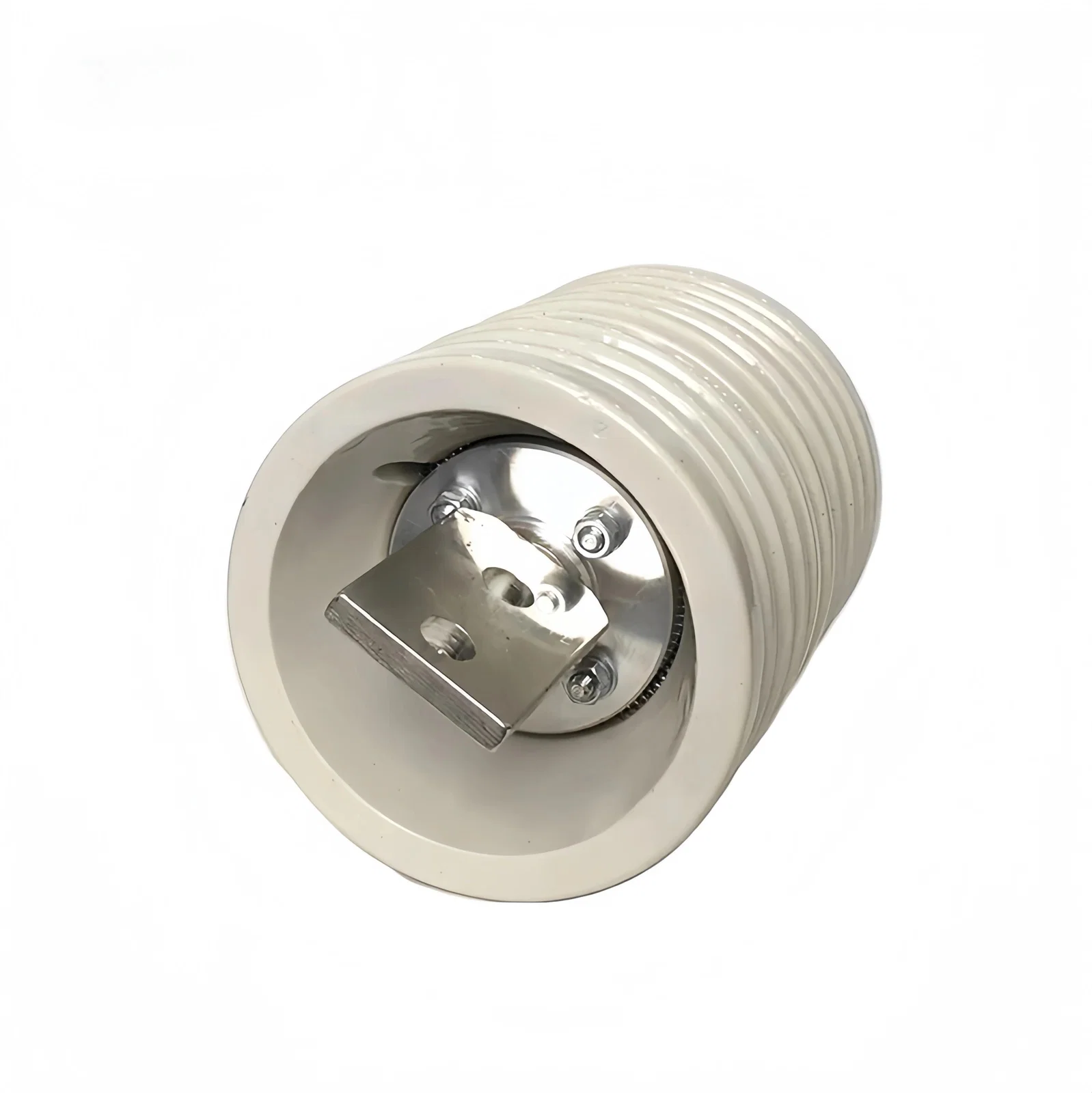

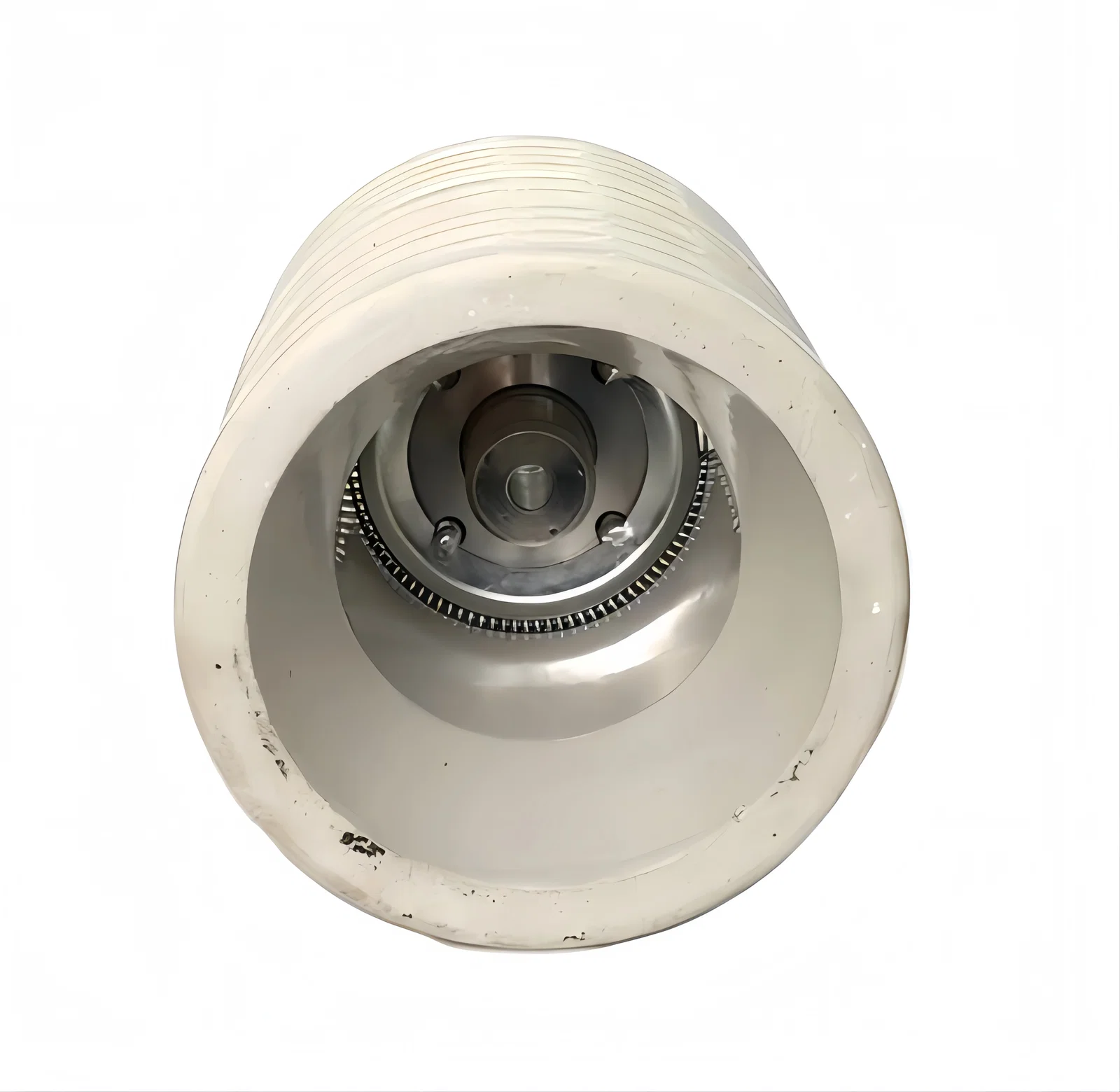

An indoor bushing insulator to the Russia standard IP-10-100 pattern, for insulating live parts in electrical devices and complete switchgear at 10 kV alternating current up to 60 Hz. It insulates and fastens wires, including on overhead line connections and in the distribution equipment of power stations and substations. The body is 200 mm high and 170 mm across with a minimum 210 mm creepage, a 12.5 kN bearing capacity and a weight of 5.3 kg.
Key benefits
Why Buyers Choose This Part
- 12.5 kN bearing capacity for trough type connections
- Minimum 210 mm creepage on a compact 200 mm tall indoor body
- ISO 9001 certified production with a stated 100000 units a year capacity
- White glazed finish that shows contamination during indoor inspection
Application scenarios
Where It Is Used
- Insulating live parts inside complete switchgear at 10 kV
- Distribution equipment at electric power stations and substations
- Fastening and insulating wires on overhead transmission connections
- Closed switchgear where a trough type connection is used
Who it is for
Who It Suits
- Switchgear manufacturers building to Russia standard patterns
- Substation electrical maintenance teams
- Importers supplying CIS-standard indoor bushings
Problems it solves
What Goes Wrong Without The Right Part
- Indoor bushings that cannot take the mechanical load of a trough connection
- Creepage too short for an enclosure that collects dust
- Supply gaps on Russia standard part numbers
- Uncertain production capacity on repeat annual orders
Technical features
How It Is Built
- Rated voltage 10 kV at frequencies up to 60 Hz
- 200 mm height and 170 mm diameter
- Minimum 210 mm creepage distance
- 12.5 kN bearing capacity

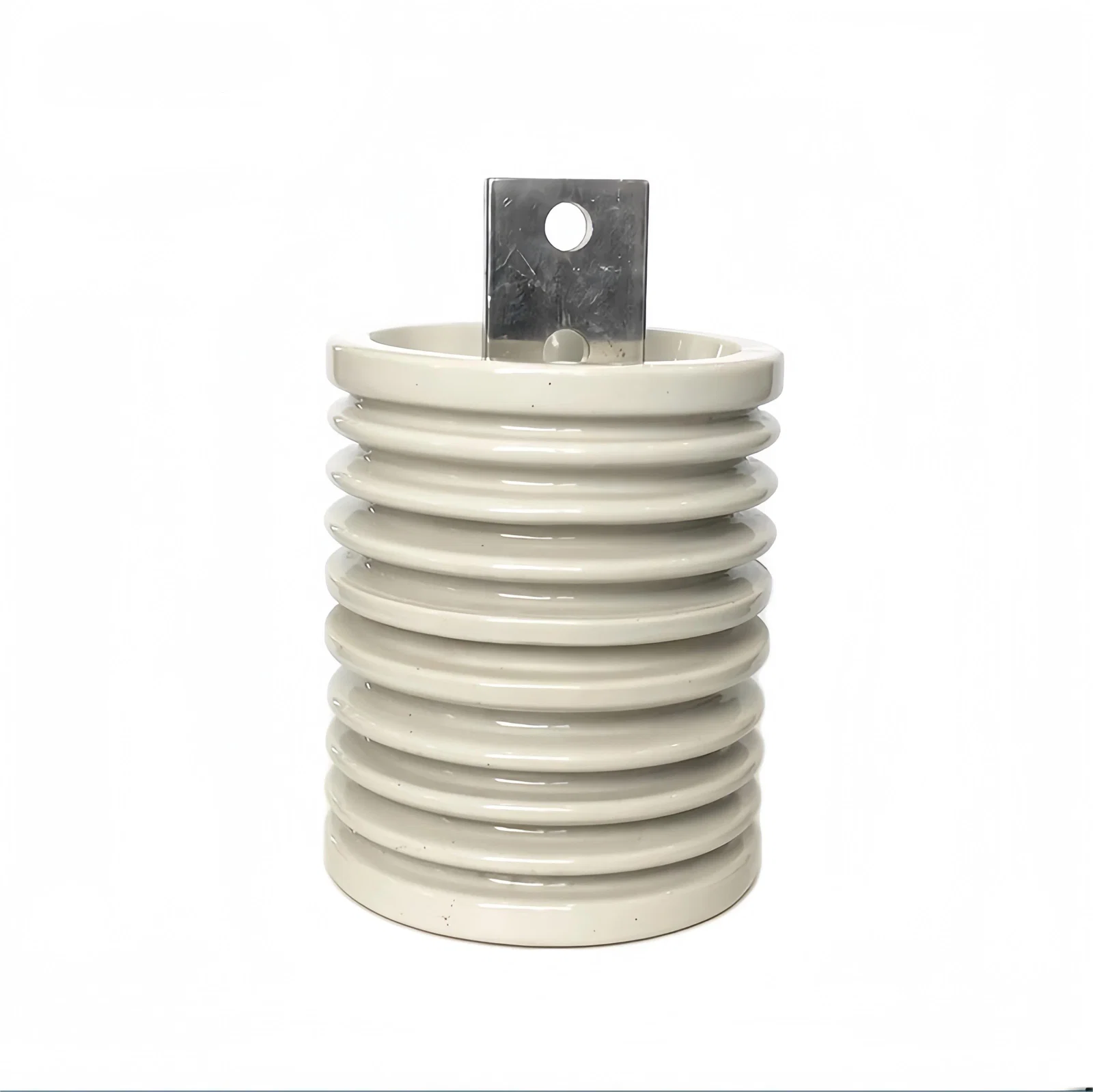

- Trough type connection method
- 5.3 kg weight
- White colour, Russia standard type
Specifications
Published Figures For This Product
Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.
| Minimum Creepage Distance | 210 mm |
|---|---|
| Bearing Capacity | 12.5 kN |
| Weight | 5.3 kg |
| Rated Voltage | 10 kV |
Materials
Materials
- White glazed electrical ceramic
- Metal connection hardware
Manufacturing
Process
- Forming
- Glazing
- Firing
- Hardware assembly
- Routine electrical and load test
Quality control
Testing
- Bearing capacity proof test at 12.5 kN
- Creepage verification against the 210 mm minimum
- Glaze and dimension inspection
Certifications
Certification
- ISO 9001
- Russia standard type
Customisation
Customisation Options
- Produced to drawing or sample
- Transport packing to your dimensions, standard case is 1000 x 1000 x 1000 mm
- Branded to Risheng PX or to your own trademark
Comparison
How It Compares
| Outdoor wall bushing | This is an indoor installation part. For a penetration exposed to weather use the wall bushing range instead. |
|---|---|
| Post insulator of the same class | The IP-10-100 conducts current through its body as well as supporting it, which a post insulator does not do. |
Use guide
Before You Order And After It Arrives
- Confirm the installation is indoors, this pattern is specified for indoor use
- Keep loads within the 12.5 kN bearing capacity
- Allow for the 5.3 kg weight in the mounting design
- Clean the white glaze during routine switchgear inspection
Questions
IP-10-100 Indoor Bushing Insulator 10kV Russia Standard Questions
Is this bushing for indoor or outdoor use?
Indoor installation. It is designed for live parts in electrical devices and complete switchgear.
What is the rated voltage and frequency?
10 kV alternating current at frequencies up to 60 Hz.
What are the dimensions and weight?
200 mm high, 170 mm diameter, minimum 210 mm creepage, 5.3 kg.
What mechanical capacity does it have?
12.5 kN bearing capacity, with a trough type connection method.
What certification does it carry?
ISO 9001.
What is the production capacity for this item?
100000 units per year. The standard transport package is a 1000 x 1000 x 1000 mm case.
