DIN 42539 3kV 1000A Transformer Bushing
Low Voltage Transformer Bushings
Product Overview
A DIN 42539 outdoor bushing at 3 kV and 1000 A with a 125 mm creepage distance, for oil-immersed distribution transformers. It is supplied as a complete set of metal parts, gaskets and porcelain, and can be manufactured to a customer specification including special lengths and different screw sizes. The DIN 42539 family spans 250 A to 6500 A with creepage stepping from 120 mm to 130 mm.
- DIN 42539
Key benefits
Why Buyers Choose This Part
- 125 mm creepage at the 1000 A rating
- Supplied complete with metal parts, gaskets and porcelain
- Part of a family covering 250 A through 6500 A
- Special lengths and screw sizes made to specification
Application scenarios
Where It Is Used
- Oil-immersed distribution transformers at 3 kV and 1000 A
- Outdoor low voltage terminals on larger distribution units
- Transformer builds standardising on DIN 42539
- Replacement of complete bushing assemblies during service
Who it is for
Who It Suits
- Distribution transformer manufacturers
- Transformer service and repair workshops
- Distributors stocking the DIN 42539 current range
Problems it solves
What Goes Wrong Without The Right Part
- Bushings supplied without the gaskets and metal parts to fit them
- Creepage selection across the DIN 42539 current range
- Screw sizes that do not match the installed busbar
- High current terminals that heat under continuous load
Technical features
How It Is Built
- DIN 42539 at 3 kV and 1000 A
- 125 mm creepage distance

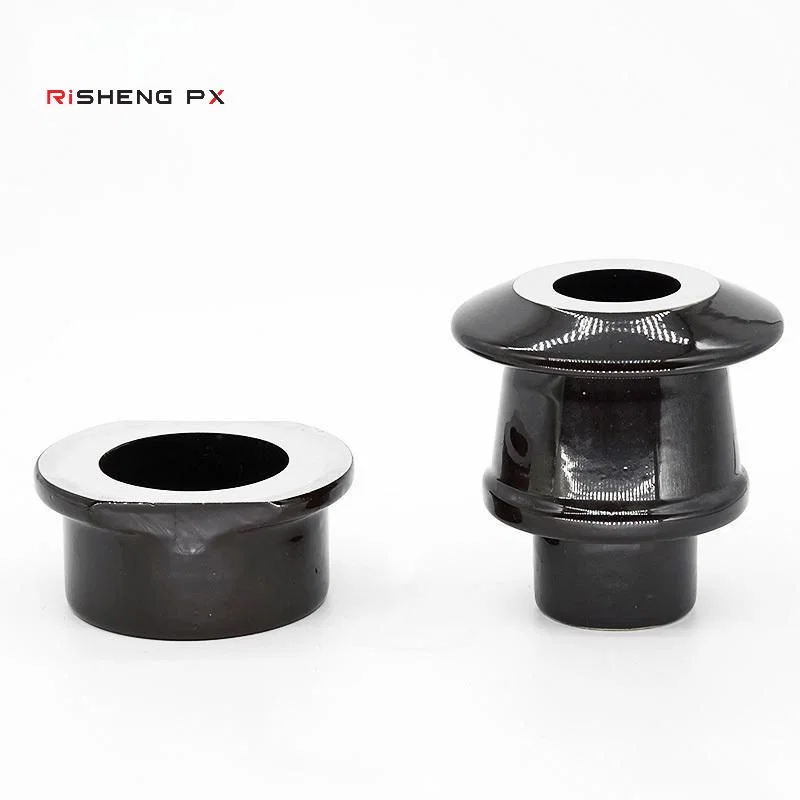

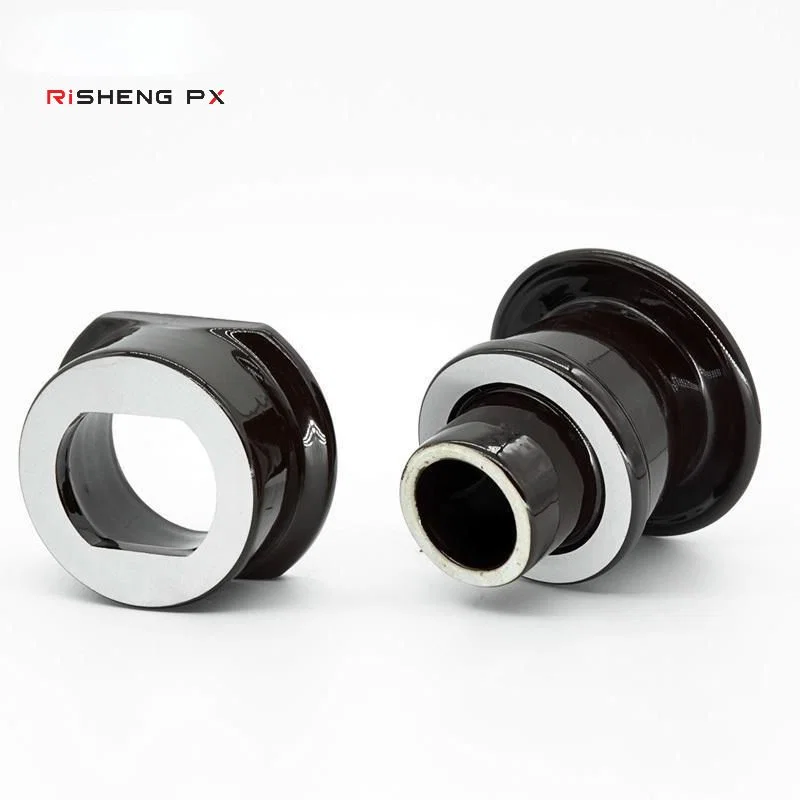

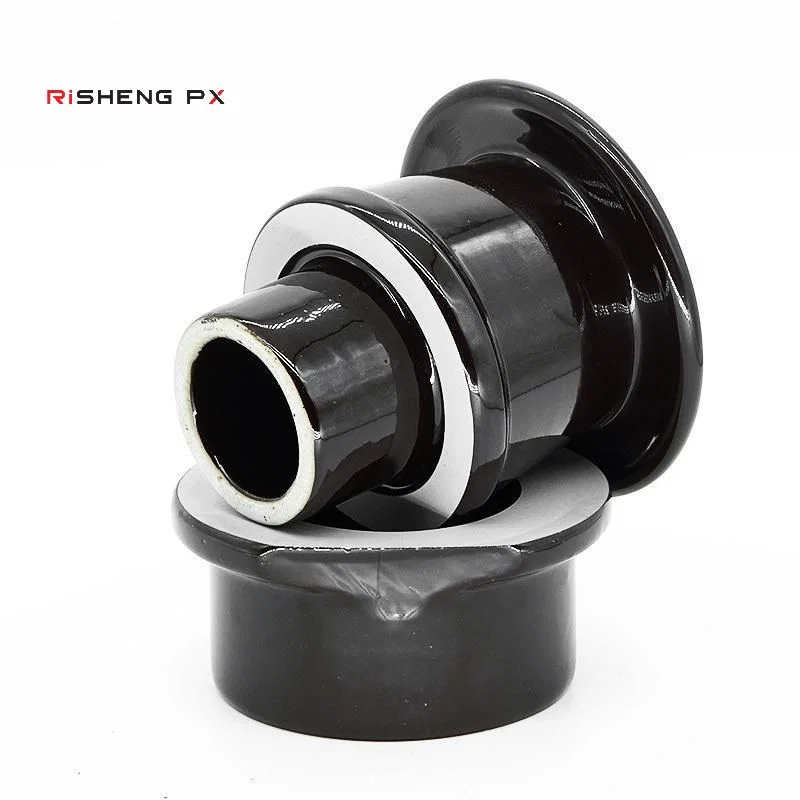

- Supplied as metal parts, gaskets and porcelain
- For oil-immersed type distribution transformers
- Family creepage: 120 mm at 250 A and 630 A, 125 mm at 1000 A to 3150 A, 130 mm at 4500 A and 6500 A
Specifications
Published Figures For This Product
Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.
| Creepage Distance | 125 mm |
|---|
Materials
Materials
- Electrical porcelain
- Metal parts and gaskets
Manufacturing
Process
- Forming
- Glazing
- Firing
- Gasket and metal part assembly
- Routine electrical test
Quality control
Testing
- Creepage verified against the 125 mm figure
- Gasket seating and seal inspection
- Conductor path check at the 1000 A rating
Certifications
Certification
- Manufactured to DIN 42539
- ISO 9001 quality management system
Customisation
Customisation Options
- Special lengths made to customer specification
- Different screw sizes
- Other current ratings from 250 A to 6500 A
Comparison
How It Compares
| DIN 42539 3kV 630A | The 630 A version uses 120 mm creepage against 125 mm here, with a smaller tank hole and an M20 stem connection. |
|---|---|
| DIN 42539 3kV 4500A | Creepage steps up to 130 mm at 4500 A and above. Match the bushing to the transformer LV output current. |
Use guide
Before You Order And After It Arrives
- Order the complete assembly so gaskets and metal parts match
- Confirm the screw size against your busbar connection
- Replace gaskets whenever the bushing is removed from the tank
- Use only on oil-immersed distribution transformers as specified
Questions
DIN 42539 3kV 1000A Transformer Bushing Questions
What creepage does the 1000 A version have?
125 mm. Within the DIN 42539 family, 250 A and 630 A are 120 mm, 1000 A to 3150 A are 125 mm, and 4500 A and 6500 A are 130 mm.
What is supplied with the bushing?
Metal parts, gaskets and porcelain as a complete assembly.
What transformers is it for?
Oil-immersed type distribution transformers.
Can you make a special length?
Yes, we manufacture to customer specifications including special lengths and different screw sizes.
What is the highest current in this family?
6500 A.
Is there a warranty?
A one year quality guarantee period applies.
