DIN 42530 1kV 1250A Transformer Bushing
Low Voltage Transformer Bushings
Product Overview
A DIN 42530 low voltage transformer bushing for power transformers, rated 1 to 3 kV at 1250 A. The shell is porcelain with copper fittings. Within the related DIN 42536 family the creepage steps from 50 mm at 250 A to 75 mm from 630 A upward, with weights rising from 0.26 kg at 250 A to 2.05 kg at 3150 A. Transport is by export carton on a wooden pallet.
- DIN 42530
Key benefits
Why Buyers Choose This Part
- 1250 A rating for the higher-output distribution transformer sizes
- Copper fittings for a low-resistance path at high LV current
- Rated across the 1 to 3 kV band so one part covers both classes
- Export carton and wooden pallet packing as standard
Application scenarios
Where It Is Used
- Low voltage side of power and distribution transformers at 1250 A
- Transformer assembly lines running DIN LV terminal patterns
- Replacement on larger distribution units during overhaul
- Export orders shipped on pallets to a transformer plant
Who it is for
Who It Suits
- Power and distribution transformer manufacturers
- Transformer service workshops handling larger units
- Distributors supplying the DIN LV bushing range
Problems it solves
What Goes Wrong Without The Right Part
- LV terminals that heat because the conductor path is undersized at 1250 A
- Transit damage to small porcelain parts shipped loose
- Two part numbers needed for 1 kV and 3 kV terminal boards
- Creepage selection across a family of current ratings
Technical features
How It Is Built
- DIN 42530 low voltage transformer bushing
- Rated voltage 1 to 3 kV
- Rated current 1250 A

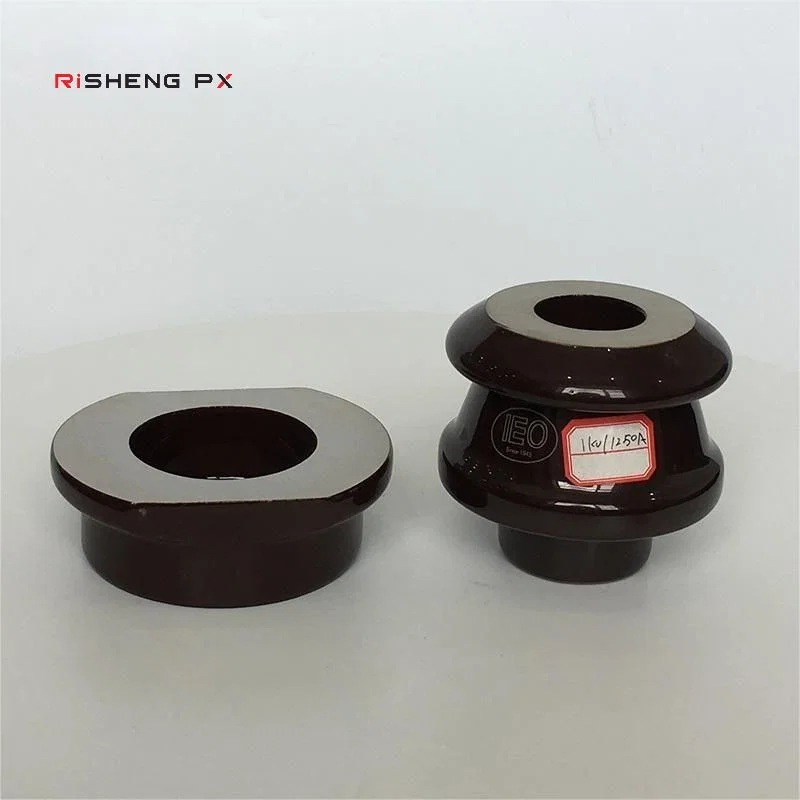

- Porcelain insulator with copper fittings
- Made in China
- Export carton and wooden pallet transport packing
Specifications
Published Figures For This Product
Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.
| Current | 1250 A |
|---|---|
| Creepage Distance | 50 mm |
| Weight | 0.26 kg |
Materials
Materials
- Porcelain insulator
- Copper fittings
Manufacturing
Process
- Forming
- Glazing
- Firing
- Copper fitting assembly
- Routine electrical test
Quality control
Testing
- Conductor path resistance check at the 1250 A rating
- Dimensional inspection against the DIN pattern
- Packing inspection before palletising
Certifications
Certification
- Manufactured to DIN 42530
- ISO 9001 quality management system
Customisation
Customisation Options
- Special lengths and connection types to customer specification
- Other current ratings in the DIN family
- OEM and ODM supply
Comparison
How It Compares
| DIN 42530 1NF250A | The 250 A part has 50 mm creepage and weighs 0.26 kg. The 1250 A version is a substantially larger conductor path for higher LV output. |
|---|---|
| DIN 42539 3 kV series | DIN 42539 is the dedicated 3 kV family with its own creepage table from 120 mm upward. Use it where the drawing specifies 42539. |
Use guide
Before You Order And After It Arrives
- Check the LV terminal board takes the DIN 42530 pattern
- Size the connection hardware for the full 1250 A rating
- Keep the pallet packing intact until installation
- Match the fitting metal to your LV busbar
Questions
DIN 42530 1kV 1250A Transformer Bushing Questions
What is the rated current?
1250 A, at a rated voltage of 1 to 3 kV.
What material are the fittings?
Copper, with a porcelain insulator body.
What creepage distances apply across the family?
In the related DIN 42536 listings, 250 A is 50 mm at 0.26 kg, and 630 A, 1000 A, 2000 A and 3150 A are all 75 mm at 0.57 kg, 1.04 kg, 1.29 kg and 2.05 kg respectively.
How is it packed?
Export carton and wooden pallet.
Can you make special lengths or connection types?
Yes, we manufacture to customer specifications.
Where are they made?
At our plant in Pingxiang, Jiangxi, China.
