18kV 25A HV ANSI Transformer Bushing
High Voltage Transformer Bushings
Product Overview

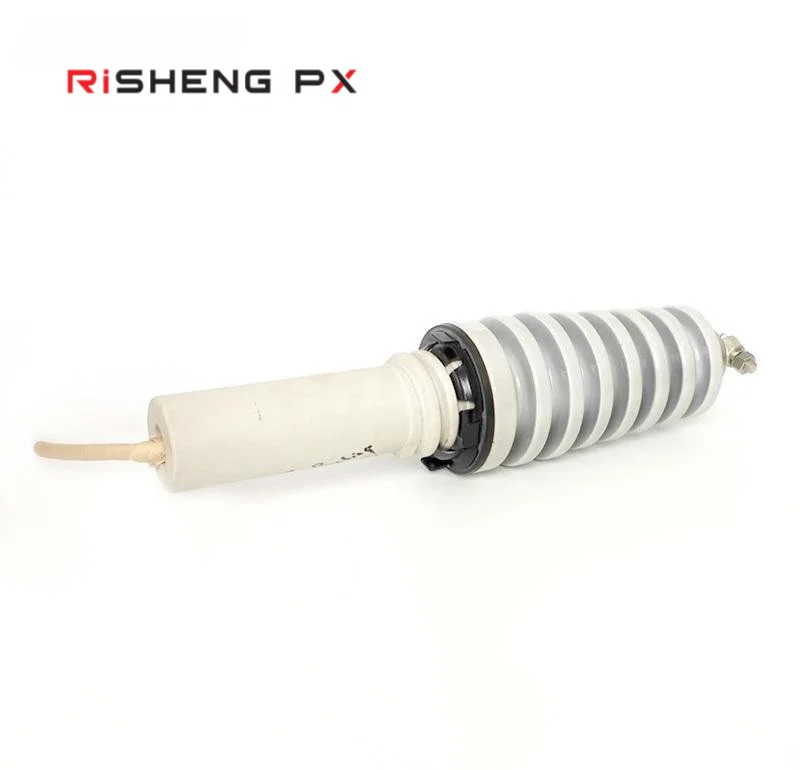

An 18 kV ANSI transformer bushing rated 25 A, built in the ANSI-18/50 body: 541 mm overall height, 184 mm h2, 101 mm d1, 214 mm h1, a 480 mm creep distance across 8 single umbrella sheds, and 3.5 kg net. The low 25 A rating suits instrument and auxiliary connections where the bushing has to withstand full system voltage but carries little current.
Key benefits
Why Buyers Choose This Part
- 25 A rating for auxiliary and instrument connections at full system voltage
- 480 mm creep distance across 8 sheds on a 541 mm body
- Meets ANSI standards for electrical and mechanical performance
- High-quality porcelain built for harsh outdoor environments
Application scenarios
Where It Is Used
- 18 kV auxiliary and instrument transformer connections
- Low current high voltage terminals on ANSI equipment
- Switchgear interfaces needing full voltage withstand at low current
- Replacement on installed ANSI-18/50 bodies
Who it is for
Who It Suits
- Transformer and instrument transformer manufacturers
- Switchgear builders working to ANSI
- Distributors supplying low current HV bushings
Problems it solves
What Goes Wrong Without The Right Part
- Over-specified high current bushings on low current connections
- Flashover on auxiliary terminals that see full system voltage
- Heat and weather degradation on exposed low current terminals
- Matching an installed ANSI-18/50 envelope exactly
Technical features
How It Is Built
- 18 kV at 25 A
- ANSI-18/50 body: 541 mm H, 184 mm h2, 101 mm d1, 214 mm h1
- 480 mm creep distance
- 8 single umbrella sheds
- 3.5 kg weight
- Meets ANSI standards for electrical and mechanical performance
- Streamlined design reducing flashover likelihood
Specifications
Published Figures For This Product
Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.
| Creep Distance | 480 mm |
|---|---|
| Weight | 3.5 kg |
Materials
Materials
- High-quality electrical porcelain
- Threaded conductor
Manufacturing
Process
- Forming
- Glazing
- Firing
- Conductor assembly
- Electrical and mechanical testing
Quality control
Testing
- Dimensional verification against the ANSI-18/50 figures
- Electrical performance testing to ANSI requirements
- Surface and glaze inspection
Certifications
Certification
- Meets ANSI standards for electrical and mechanical performance
- ISO 9001 quality management system
Customisation
Customisation Options

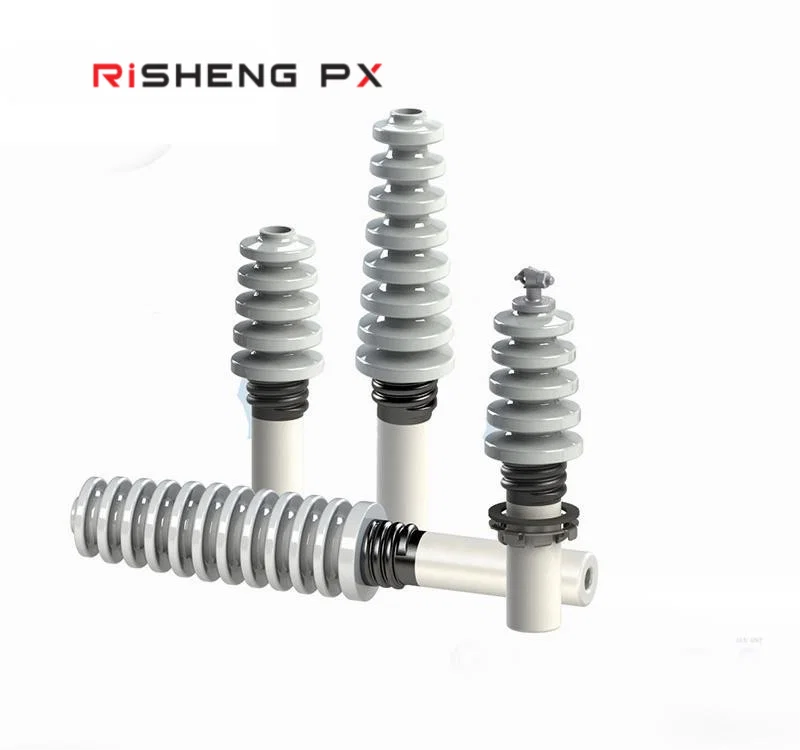

- ANSI-15/50 and ANSI-27/50 bodies available
- Current rating and thread size to specification
- OEM and ODM supply
Comparison
How It Compares
| The threaded ANSI 18kV bushing listing | Same ANSI-18/50 body and dimensions. This listing quotes the 25 A current rating explicitly for low current connections. |
|---|---|
| ANSI 15kV transformer bushing | A lower voltage class on a shorter 485 mm body with 310 mm creep distance. Match the class to the system voltage, not the current. |
Use guide
Before You Order And After It Arrives
- Confirm the 25 A rating is sufficient for the connection
- Check the 541 mm height against the available clearance
- Keep the umbrella sheds clean, low current terminals are often neglected
- Match the thread to your terminal stud
Questions
18kV 25A HV ANSI Transformer Bushing Questions
Why such a low current rating at 18 kV?
Because the bushing has to withstand full system voltage while carrying very little current, which is the case on auxiliary and instrument connections.
What body is it built in?
The ANSI-18/50 body: 541 mm overall height with a 480 mm creep distance across 8 single umbrella sheds, weighing 3.5 kg.
Does it meet ANSI requirements?
Yes, for both electrical and mechanical performance.
What other models are in the range?
ANSI-15/50 at 485 mm and 310 mm creep, and ANSI-27/50 at 722 mm and 830 mm creep.
Is it suitable for outdoor use?
Yes. It is made from high-quality porcelain and designed to withstand harsh environments.
Can a higher current rating be supplied in the same body?
Tell us the current you need on WhatsApp and we will confirm what the body will carry.
