Non Woven Rewinding Machine
Servo Rewinding With Embossing Scoring Counting And Slitting
What This Machine Does

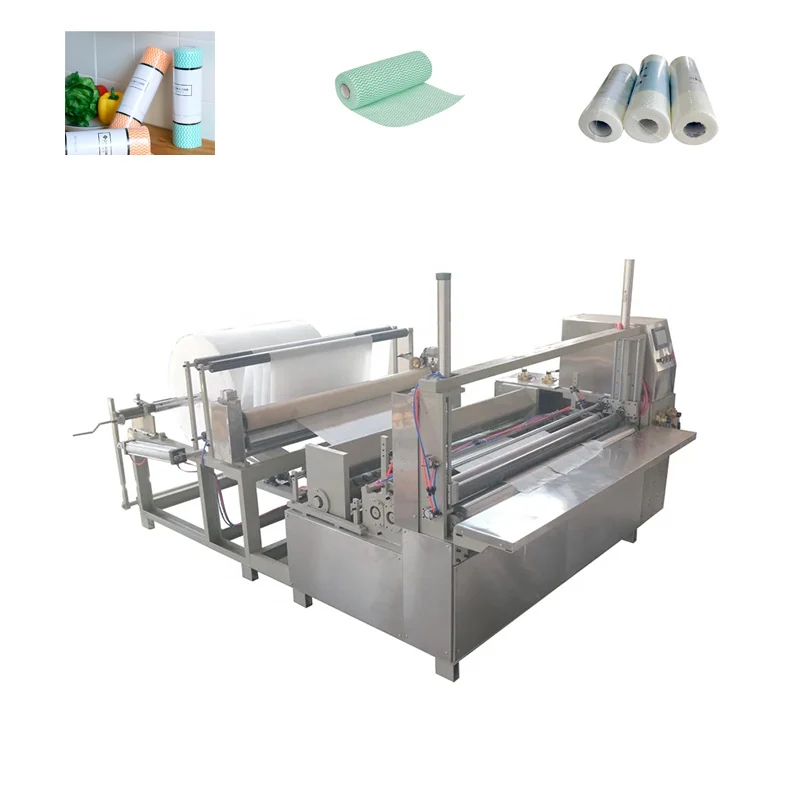

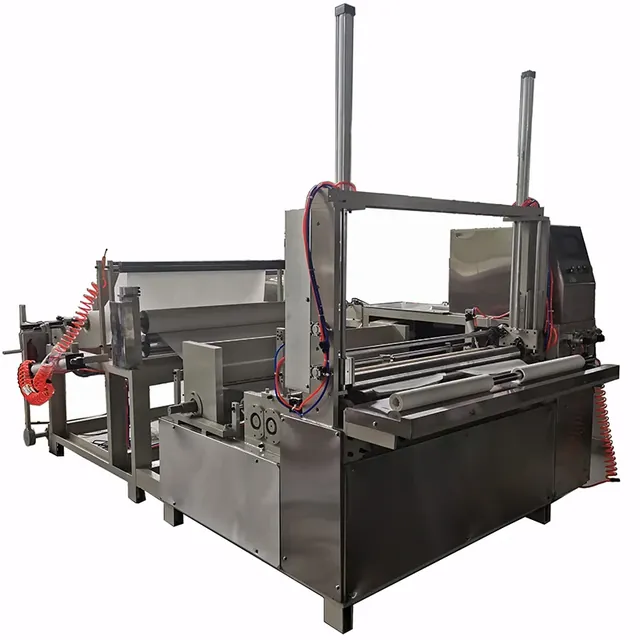

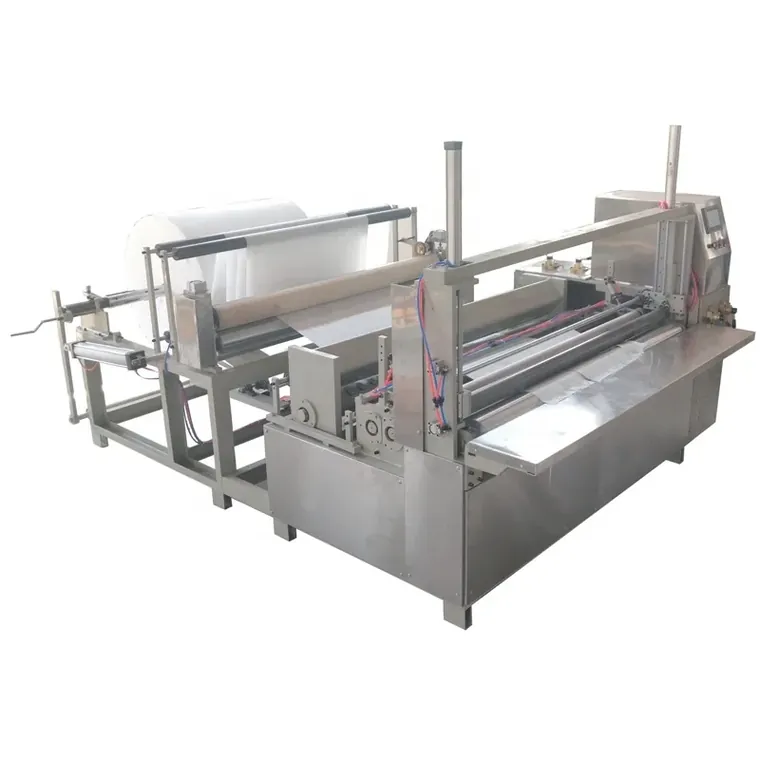

The AQ-R(1800) Non Woven Rewinding Machine is our standard width servo rewinder, completing embossing, scoring, counting, slitting and rewinding in one pass and producing rolls with a flat end face and a clear score line. It handles small and large rolls and different non woven types, and the operator controls are kept simple so training time is short. Total power is 5.5 kW at 380 V / 50 Hz and the machine weighs about 3500 kg.
- Spunlace non woven
- Needle punched non woven
- Wood pulp non woven
Why Buyers Choose This Model
Five converting operations in one pass, with no intermediate handling of the web
Flat roll end face and clear score line raise the finished product's shelf appearance
Handles small and large roll sizes, so short runs do not need a different machine
Straightforward controls reduce the learning curve for new operators
Factories Running This Machine
- Non woven converters producing roll goods
- Wipe manufacturers with mixed roll sizes
- Private label suppliers to supermarkets
- Factories consolidating several converting steps
What It Removes From Your Line
- Separate embossing, scoring and slitting passes that damage the web
- Uneven roll end faces that look poor on shelf
- Score lines that tear early or not at all
- Downstream counting that adds a manual step
Where This Machine Is Used
- Household and kitchen roll production
- Wipe roll converting for retail brands
- Industrial wipe roll production
- Roll goods for salon and cleaning distributors
How The Machine Is Built
- AQ-R(1800) standard width servo rewinder
- Servo control motor completing embossing, scoring, counting, slitting and rewinding
- Flat end face and clear score line output
- Adaptable to various roll sizes and non woven types
- User-friendly operator controls
- Total power 5.5 kW at 380 V / 50 Hz, weight about 3500 kg
| Machine Model | AQ-R(1800) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Embossing
Scoring
Counting
Slitting
Rewinding
What We Check Before Shipment
- End face flatness inspected on finished rolls
- Score depth checked and tear tested
- Count accuracy verified against a manual check
- Servo synchronisation tested at full speed before shipment
What We Build To Your Specification
- Working width and roll size configured to your production
- Embossing roller engraved to your pattern
- Score pitch set to the sheet length you sell
- Voltage and frequency set for your plant
Machine And Product Detail

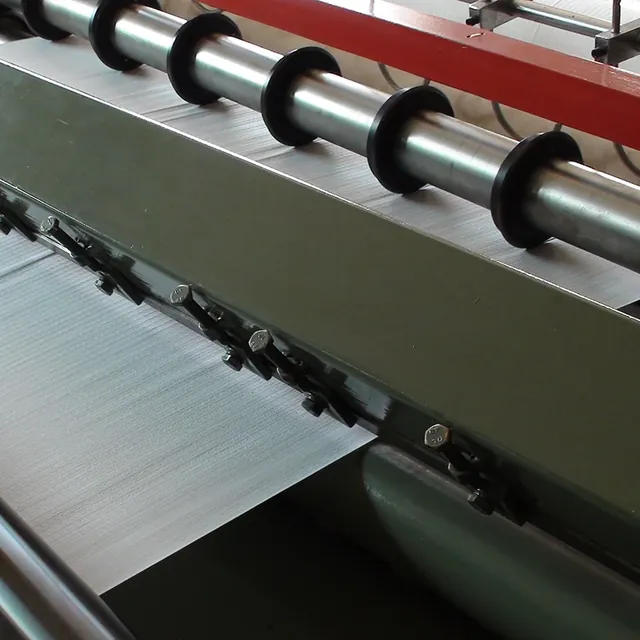

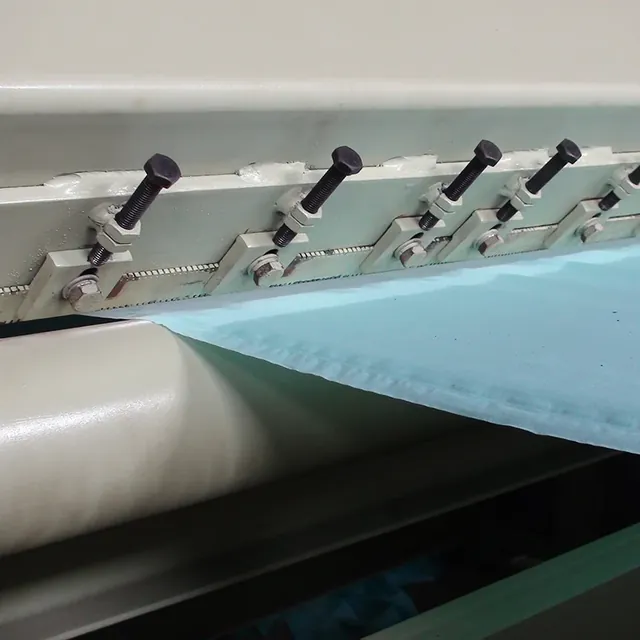

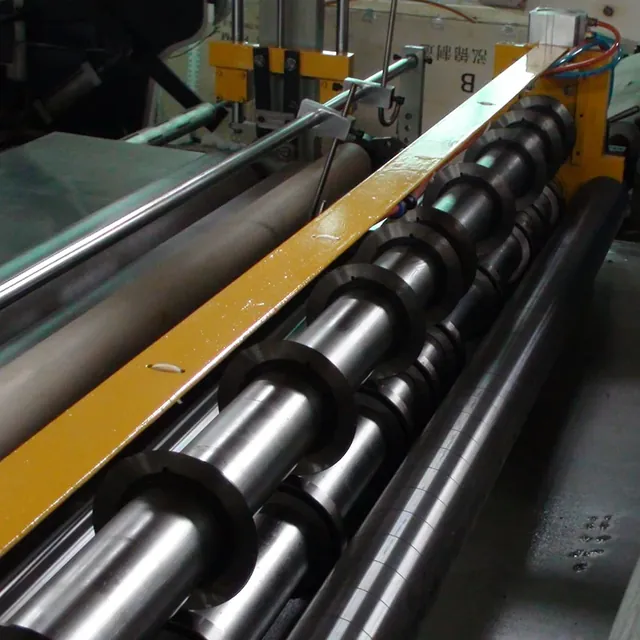

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Large non woven rewinding machine AQ-R(3500)
Same servo concept at a larger working width. Choose the 3500 build if your jumbo rolls are wider than this machine accepts.
Compared With Slitting and rewinding machines
A plain slitter cuts and rewinds. This machine also embosses, scores and counts, so the roll leaves finished.
Setting The Machine For A Production Run
Load the jumbo roll and select the material settings
Set embossing pressure and score pitch
Set knife positions and the count target
Run a test roll, check end face and score, then produce
Industries Using This Machine
Other Machines In This Family
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Non Woven Fabrics Slitting And Rewinding Machine
Adjustable Width Slitting With Automatic Tension Controlled Rewinding
Model AQ-FR
Non Woven Fabric Inspection Machine
Unwind Inspect Count And Rewind Non Woven At Up To 120 M Per Minute
Model AQ-I(1600)
Woven Fabrics Slitting And Rewinding Machine
PP Woven And Non Woven Slitting With Four Selectable Tension Modes
Model AQ-R (1200-3500)Non Woven Rewinding Machine FAQ
Which operations are combined?
Embossing, scoring, counting, slitting and rewinding, all completed under servo control in one pass.
Can it handle different roll sizes?
Yes, the machine is adaptable to various roll sizes and types of non woven materials.
What power and weight should we plan for?
5.5 kW at 380 V / 50 Hz, with a machine weight of about 3500 kg.
What is the delivery time?
About 35 days after order confirmation, with a one-year warranty.
Get A Quotation For The AQ-R(1800)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Rewinding Machine specification, price and delivery.
