Non Woven Gloves Making Machine
Ultrasonic Production Of Velvet Inner Glove Sleeves At 40 Bags Per Minute
What This Machine Does
The AQ-GF Non Woven Gloves Making Machine produces warm velvet inner sleeves that go inside gloves, including antistatic and polyester types, using a semi-automatic ultrasonic fabric connection device. Working width is 1800 mm, output reaches about 40 bags per minute, and electronic counting shuts the machine down automatically when the set output is reached. The machine runs on 380 V / 50 Hz and weighs about 2500 kg.
- Velvet non woven
- Antistatic non woven
- Polyester non woven
Why Buyers Choose This Model
Ultrasonic bonding joins the sleeve without thread, so there is no seam to irritate the hand
Electronic counting with automatic shutdown means the operator is not tied to the machine
1800 mm working width handles the fabric widths glove producers normally buy
Produces antistatic and polyester glove liners on the same machine
Factories Running This Machine
- Work glove manufacturers
- PPE producers supplying industrial customers
- Electronics assembly consumable suppliers
- Contract manufacturers for glove brands
What It Removes From Your Line
- Sewn liners that leave a seam ridge inside the glove
- Manual counting that stops production when the operator steps away
- Liner production outsourced when the glove line is already in house
- Fabric connection that has to be done off the machine
Where This Machine Is Used
- Velvet inner sleeves for winter work gloves
- Antistatic glove liners for electronics assembly
- Polyester liners for industrial gloves
- Disposable glove liner production
How The Machine Is Built
- Working width 1800 mm
- Output about 40 bags/min
- Semi-automatic ultrasonic fabric connection device
- Electronic counting with automatic shutdown at the set output
- Suitable for antistatic and polyester glove liner materials
- 380 V / 50 Hz, machine weight about 2500 kg, one-year warranty
| Machine Model | AQ-GF |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 25-35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Forming
Ultrasonic bonding
Cutting
Counting
Output
What We Check Before Shipment
- Ultrasonic bond strength tested on the finished sleeve
- Sleeve dimensions measured across a batch
- Counting and auto-shutdown verified before shipment
- Electrical test at your supply voltage
What We Build To Your Specification
- Sleeve size to your glove specification
- Material handling set for antistatic or polyester fabric
- Output count preset to your pack quantity
- Voltage and frequency configured for your plant

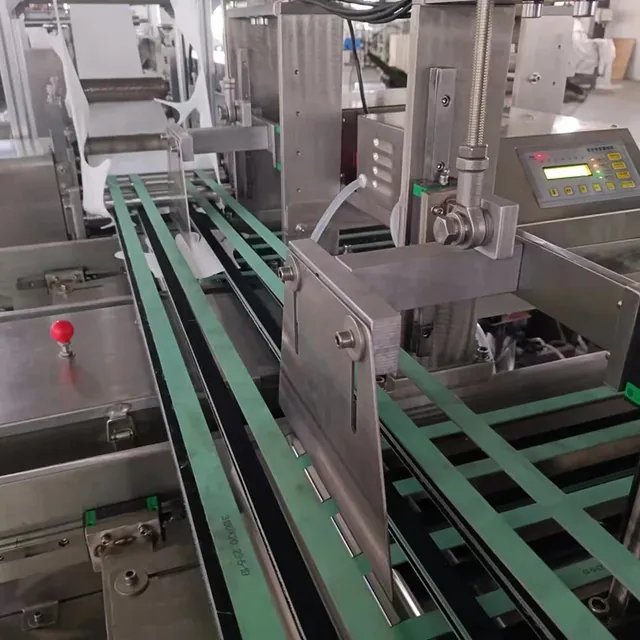

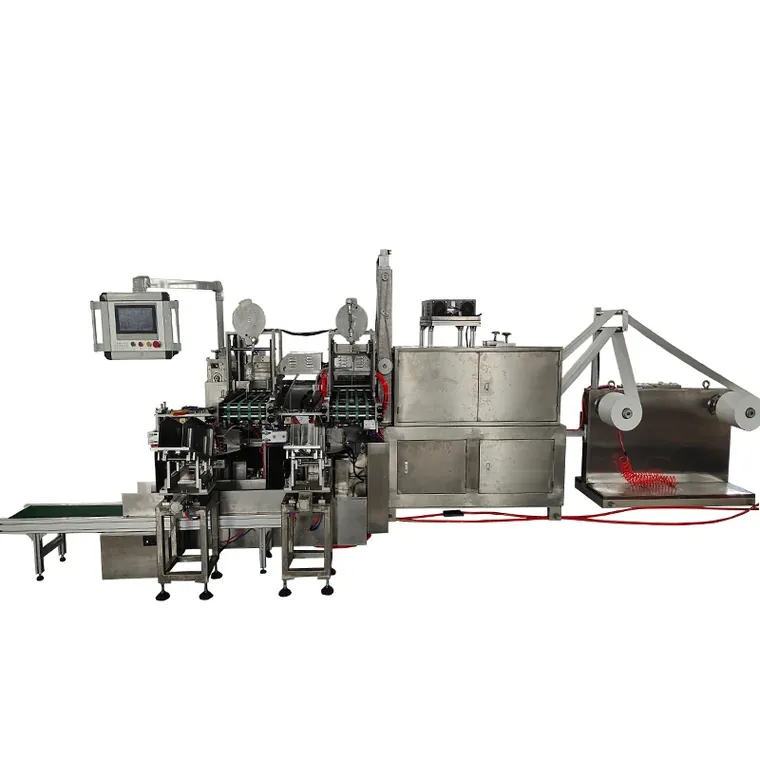

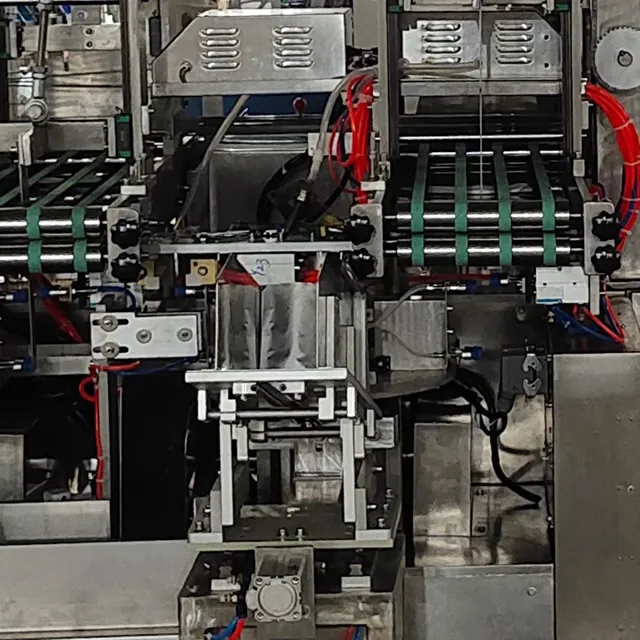

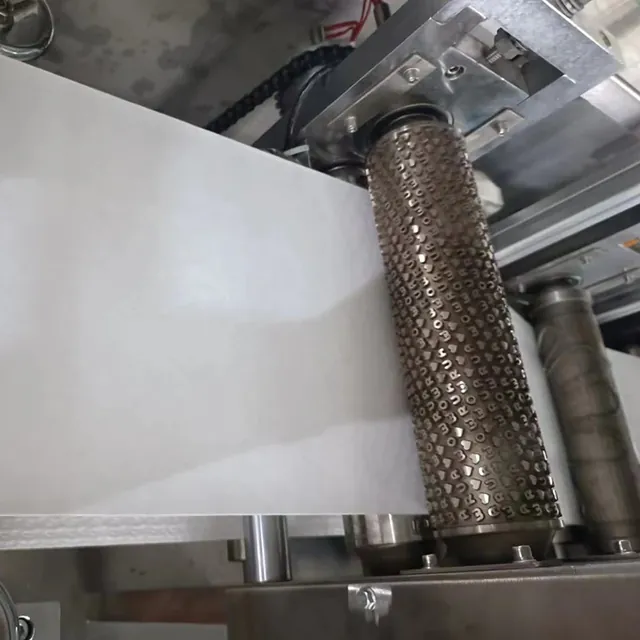

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Non woven shoe cover making machine
Both produce in-line bonded disposable items. The glove machine is built around 1800 mm width sleeve production rather than elastic-edged covers.
Compared With Sewn glove liner production
Sewing adds labour and a seam inside the glove. Ultrasonic bonding is faster and leaves a flatter joint.
Setting The Machine For A Production Run
Load the fabric within the 1800 mm width
Set the ultrasonic connection parameters for the material
Run a test batch and check bond strength and sleeve size
Set the output count so the machine stops at the target quantity
Other Machines In This Family
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)
Non Woven Bib Making Machine
Laminating Embossing And Folding Disposable Bibs On One Frame
Model AQ-190
Non Woven Spa Bed Sheets Rewinding Machine
Perforated Spa Bed Sheet Rolls With Hygienic Embossing And Air Knife Slitting
Model AQ-GF(1800)Non Woven Gloves Making Machine FAQ
What does this machine actually produce?
It produces the warm velvet inner sleeves that go inside gloves, including antistatic and polyester types.
What is the output rate?
About 40 bags per minute at a working width of 1800 mm.
Does it stop at a set quantity?
Yes. Electronic counting shuts the machine down automatically when the set output is reached.
What power and weight should we plan for?
380 V / 50 Hz supply, and a machine weight of about 2500 kg.
Get A Quotation For The AQ-GF
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Gloves Making Machine specification, price and delivery.
