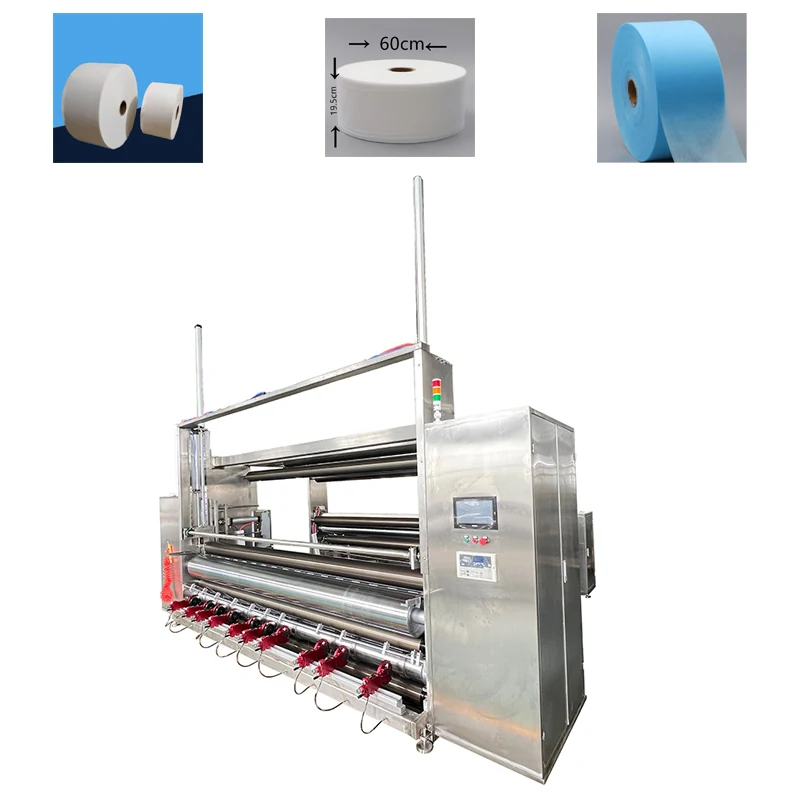

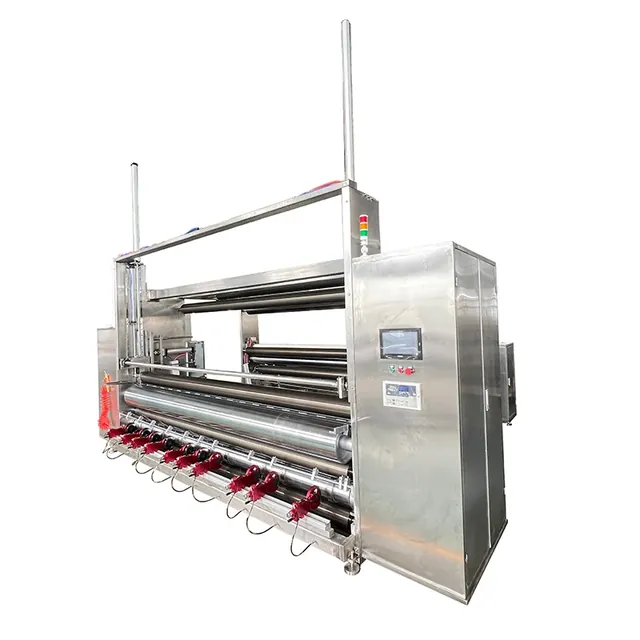

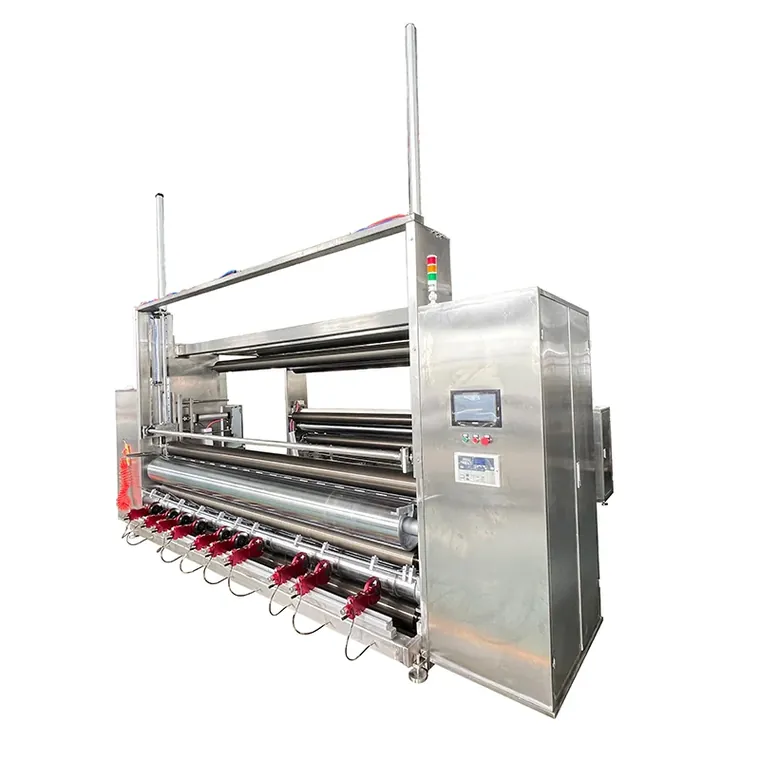

Large Non Woven Rewinding Machine
Servo Controlled Embossing Scoring Counting Slitting And Rewinding In One Pass
What This Machine Does
The AQ-R(3500) Large Non Woven Rewinding Machine completes embossing, scoring, counting, slitting and rewinding in a single pass under servo control, producing rolls with a flat end face and a clear score line. It is the preferred build for slitting and rewinding spunlace, needle punched and wood pulp non woven at large roll sizes. Total power is 5.5 kW at 380 V / 50 Hz and the machine weighs about 3500 kg.
- Spunlace non woven
- Needle punched non woven
- Wood pulp non woven
Why Buyers Choose This Model
Five operations in one pass removes intermediate handling and the damage that comes with it
Servo control produces a flat roll end face, which is what buyers look at first
Clear scoring gives the end user a reliable tear line
Handles spunlace, needle punched and wood pulp non woven without re-tuning the whole machine
Factories Running This Machine
- Non woven mills with large jumbo output
- Converters running several material families
- Wipe manufacturers producing scored rolls
- Factories consolidating several machines into one line
What It Removes From Your Line
- Separate embossing, scoring and slitting passes that damage the web
- Uneven roll end faces that make the product look poor on shelf
- Score lines that tear early or not at all
- Counting done downstream instead of on the machine
Where This Machine Is Used
- Large roll production for wipe and towel converters
- Wood pulp non woven converting for kitchen roll products
- Needle punched material rewinding for industrial customers
- High-volume spunlace roll production
How The Machine Is Built
- Model AQ-R(3500) large format build
- Servo control motor driving embossing, scoring, counting, slitting and rewinding
- Flat end face and clear score line output
- Suitable for spunlace, needle punched and wood pulp non woven
- User-friendly operator controls
- Total power 5.5 kW at 380 V / 50 Hz, machine weight about 3500 kg
| Machine Model | AQ-R(3500) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Embossing
Scoring
Counting
Slitting
Rewinding
What We Check Before Shipment
- Roll end face flatness inspected on finished rolls
- Score depth checked and tear tested
- Count accuracy verified against a manual check
- Servo synchronisation tested at full speed before shipment
What We Build To Your Specification
- Working width and roll size built to order
- Embossing roller engraved to your pattern
- Score pitch set to your sheet length
- Voltage and frequency configured for your plant

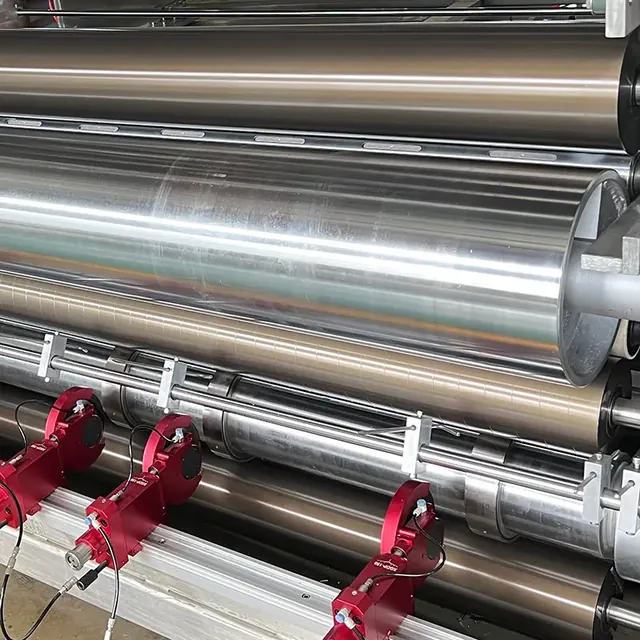

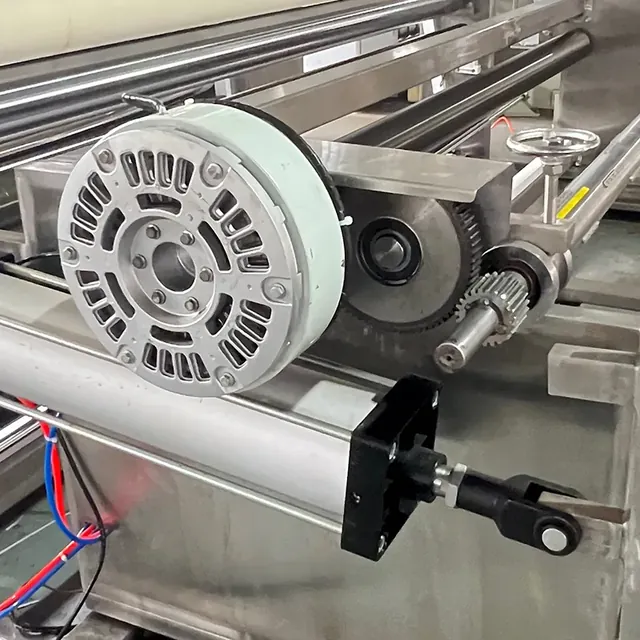

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With AQ-R(3200) folding and rewinding machine
The 3200 model folds the web before rewinding. The 3500 model keeps the web flat and adds embossing, scoring, counting and slitting.
Compared With Basic rewinders
A basic rewinder only re-rolls. This machine finishes the product, so no second pass is needed before packing.
Setting The Machine For A Production Run
Load the jumbo roll and set servo parameters for the material family
Set embossing pressure and score pitch
Set slitting knife positions and the count target
Run a test roll, check end face and score, then produce
Industries Using This Machine
Other Machines In This Family
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Non Woven Fabrics Slitting And Rewinding Machine
Adjustable Width Slitting With Automatic Tension Controlled Rewinding
Model AQ-FR
Non Woven Fabric Inspection Machine
Unwind Inspect Count And Rewind Non Woven At Up To 120 M Per Minute
Model AQ-I(1600)
Woven Fabrics Slitting And Rewinding Machine
PP Woven And Non Woven Slitting With Four Selectable Tension Modes
Model AQ-R (1200-3500)Large Non Woven Rewinding Machine FAQ
Which processes does this machine combine?
Embossing, scoring, counting, slitting and rewinding, all under servo control in a single pass.
Which materials suit this machine best?
It is a preferred choice for slitting and rewinding spunlaced, needle-punched and wood pulp non woven materials.
What is the installed power and weight?
Total power is 5.5 kW at 380 V / 50 Hz and the machine weighs about 3500 kg.
Can the embossing pattern be ours?
Yes. The embossing roller is engraved to your artwork and quoted separately from the machine.
Get A Quotation For The AQ-R(3500)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Large Non Woven Rewinding Machine specification, price and delivery.
