Gauze Pads Machine
Vertical And Horizontal Cutting With Zigzag Array Output At 2000 Pieces Per Minute
What This Machine Does
The AQ-RD Gauze Pads Machine cuts and stacks medical gauze pads at 1500 to 2000 pieces per minute. Raw material transfers into vertical and horizontal cutting stations, a stepping count device keeps the count accurate and pads are output in a zigzag array that feeds packing directly. The frame uses an integral wall panel rack built from 35 mm thick wall panel instead of channel steel, which holds cutting precision over long service.
- Spunlace non woven
- Medical gauze
- Cotton web
Why Buyers Choose This Model
1500 to 2000 pcs/min output supports high-volume medical consumable contracts
35 mm integral wall panel rack keeps knife alignment stable far longer than a channel steel frame
Zigzag array output stacks pads ready for packing without an intermediate step
Steel to steel indentation roller improves pad edge quality and appearance
Factories Running This Machine
- Medical disposable manufacturers
- Wound care brands with in-house converting
- Contract manufacturers on volume tenders
- Converters of spunlace non woven
What It Removes From Your Line
- Burred pad edges from worn or badly supported knives
- Count errors that break pack quantity guarantees
- Frames that flex and lose cutting accuracy under high speed
- Manual stacking that cannot keep up with the cutting station
Where This Machine Is Used
- Medical gauze and spunlace pad production
- Wound care consumable manufacturing
- Cosmetic pad production at high count
- Private label medical kit component supply
How The Machine Is Built
- Production rate 1500-2000 pcs/min

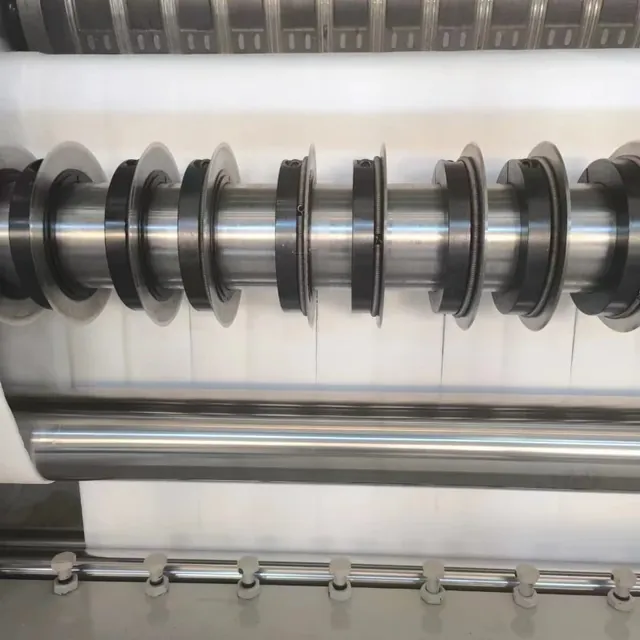

- Vertical and horizontal cutting with imported high-quality cutters
- Integral wall panel rack using 35 mm thick wall panel
- Steel to steel indentation roller
- Automatic counting device with zigzag-type stacking count
- Rated 380 V / 50 Hz, total power 3 kW, stainless steel components, English operation manual
| Machine Model | AQ-RD |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 25-35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Raw material transferring
Vertical cutting
Horizontal cutting
Stepping count
Zigzag array output
What We Check Before Shipment
- Pad edges inspected for burrs after a continuous run
- Count accuracy checked against manual counting on a full batch
- Knife alignment measured on the wall panel rack before shipment
- Electrical system tested at your voltage before crating
What We Build To Your Specification
- Pad size and effective breadth to your specification
- Stack count set to your pack quantity
- Material adaptability configured for your web
- Voltage and frequency set for your plant
Machine And Product Detail

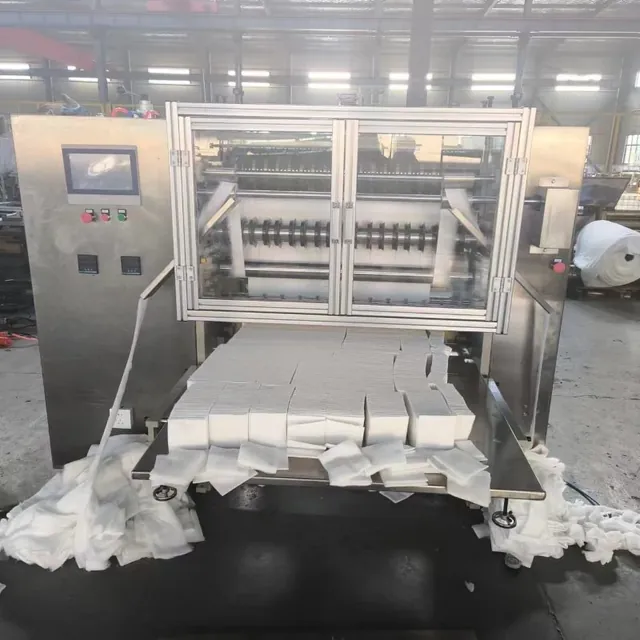

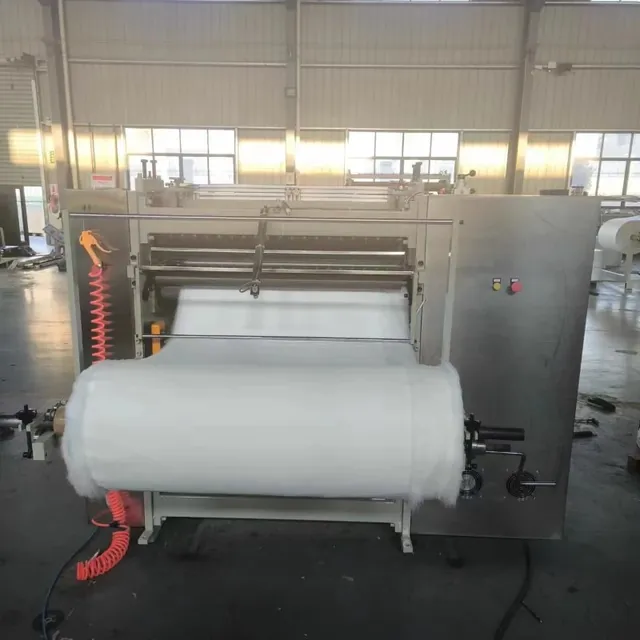

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Embossed cotton pads machine
The cotton pad machine roll cuts round cosmetic pads at 300-400 pcs/min. This machine cross cuts rectangular pads at up to 2000 pcs/min for medical volume.
Compared With Folding machines
A folder creases the web. This machine cuts discrete pads and stacks them in a counted zigzag array.
Setting The Machine For A Production Run
Load the web and set the vertical cutting station for pad width
Set the horizontal cutter for pad length and check the indentation roller setting
Set the stepping count for your pack quantity
Run a test batch, check edges and count, then produce
Industries Using This Machine
Other Machines In This Family
Embossed Cotton Pads Machine
Round Embossed Cotton Pads At Up To 400 Pieces Per Minute
Model AQ-RD
Cotton Pads Making Machine (Square)
Square Cotton Pads From 40 To 100 mm With 304 Stainless Contact Parts
Model AQ-RC
Square Cotton Pads Making Machine With Custom Embossing
Square Cotton Pad Line With Customisable Embossing Pattern
Model AQ-RC
Cotton Pads Making Machine (Round)
58 mm Round Cotton Pads With Imported Roll Cutting Mould
Model AQ-RDGauze Pads Machine FAQ
What is the production rate?
1500 to 2000 pieces per minute, depending on pad size and material.
Why does the frame design matter?
The integral wall panel rack uses 35 mm thick wall panel instead of channel steel, which keeps the cutting stations aligned over long production periods.
How are the pads delivered from the machine?
Pads are output in a zigzag array with automatic stepping count, which feeds the packing station directly.
Is an English manual included?
Yes. Operation and technical documentation is supplied in English with the machine.
Get A Quotation For The AQ-RD
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Gauze Pads Machine specification, price and delivery.
