Square Cotton Pads Making Machine With Custom Embossing
Square Cotton Pad Line With Customisable Embossing Pattern
What This Machine Does
This AQ-RC Cotton Pads Making Machine (Square) build is configured for converters who run one main pad format and want the embossing pattern to carry their brand. Effective breadth is 1200 mm with jumbo rolls up to 800 mm diameter, typically fed with 1100 mm cotton roll. The embossing indentation is held by international quality steel so the pattern does not drift, and vertical and horizontal cutters in imported special material cut without burrs.
- Cotton roll stock
- Spunlace non woven
Why Buyers Choose This Model
Customer flower pattern engraving makes a commodity pad recognisable on shelf
Stable embossing indentation means the pattern looks the same at the end of the run
Adjustable finished size covers 40 to 100 mm without new tooling
Zigzag automatic counting delivers a fixed stack straight to packing
Factories Running This Machine
- Cosmetic brands with in-house converting
- Private label pad suppliers
- Cotton and spunlace converters
- Exporters serving beauty distributors
What It Removes From Your Line
- Plain pads that cannot be differentiated from imports
- Embossing that fades or shifts during the run
- Burred edges that shed fibre in the pack
- Manual counting at the packing table
Where This Machine Is Used
- Branded square cosmetic pads
- Nail polish remover pad production
- Pharmacy own-label cotton pads
- Hotel amenity pad packing
How The Machine Is Built
- Effective breadth 1200 mm, maximum jumbo roll diameter 800 mm
- Typical customer cotton roll width 1100 mm
- Finished size adjustable, 40 to 100 mm width and 40 to 100 mm length
- Embossing customised to the client flower pattern, plain unsealed option available
- Vertical and horizontal cutters in imported high quality special material, no burrs
- Automatic counting with zigzag stacking, 304 stainless steel fabric contact parts
| Machine Model | AQ-RC |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 30 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Raw material transferring
Embossing
Vertical cutting
Horizontal cutting
Counting
Zigzag stacking
What We Check Before Shipment
- Embossing depth compared at the start and end of a long run
- Edge quality inspected for burrs
- Finished pad dimensions measured across the machine width
- Contact surfaces checked for hygiene before shipment
What We Build To Your Specification
- Embossing engraved with your flower pattern
- Pad size set anywhere from 40 x 40 mm to 100 x 100 mm
- Plain pads without sealed sides on request
- Effective breadth matched to your cotton roll

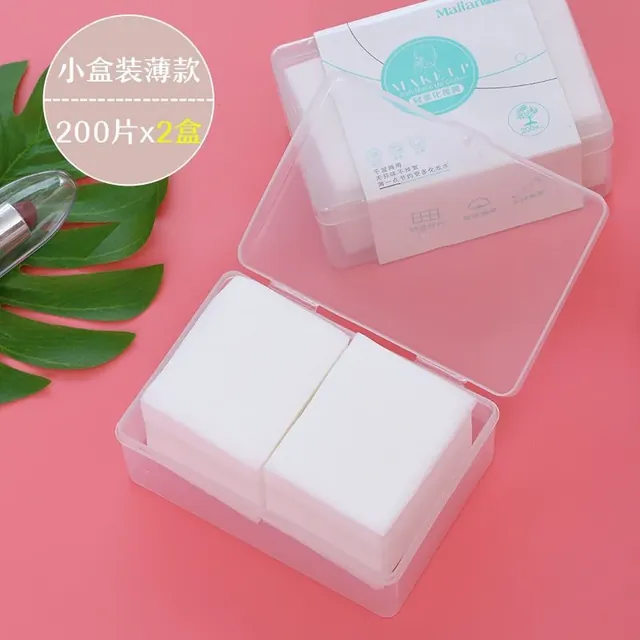

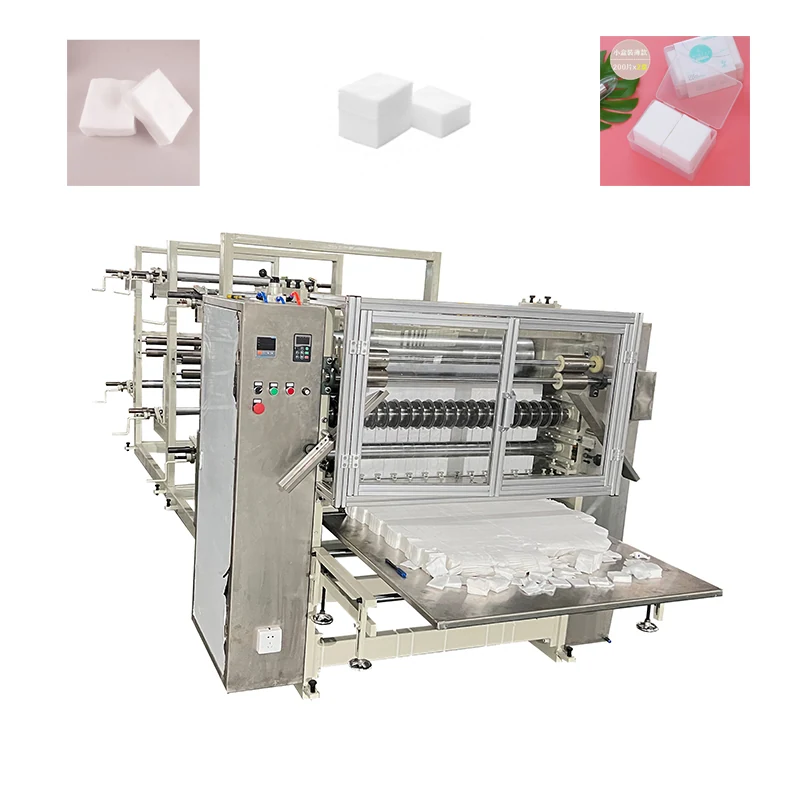

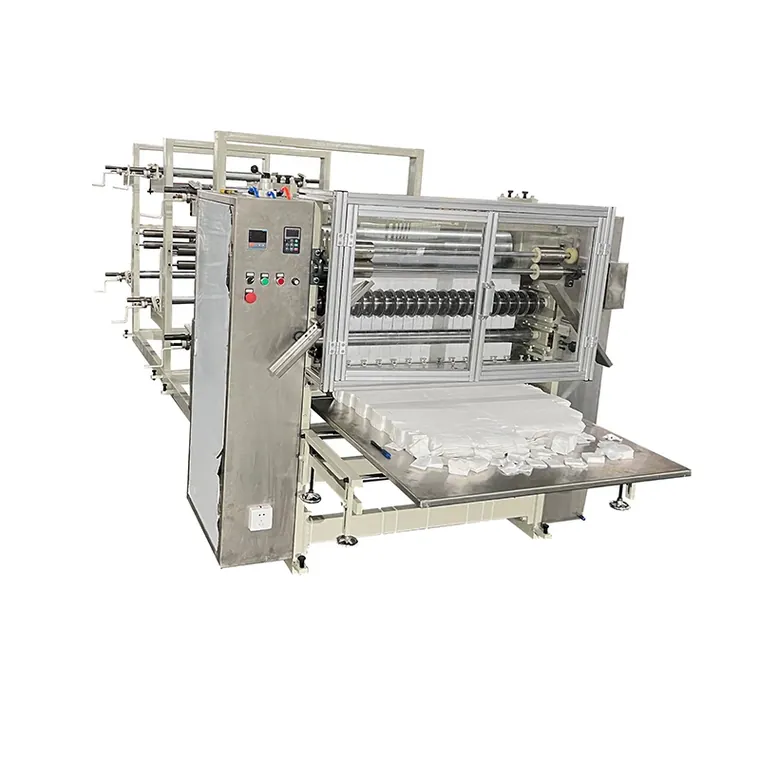

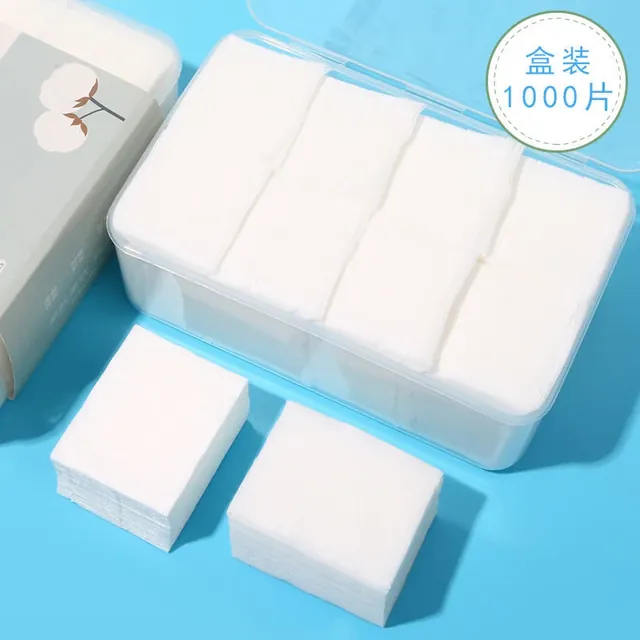

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Round embossed cotton pads machine AQ-RD
The AQ-RD produces round pads with tube output at 300-400 pcs/min. This machine produces square and rectangular pads with zigzag stacking.
Compared With Gauze pads machine
The gauze build runs medical pads at up to 2000 pcs/min. This machine is tuned for cosmetic pad appearance and embossing detail.
Setting The Machine For A Production Run
Load the cotton roll, typically 1100 mm wide
Fit the engraved embossing roller and set pressure
Set pad width and length within 40 to 100 mm
Run a test stack, check embossing and edges, then produce
Industries Using This Machine
Other Machines In This Family
Embossed Cotton Pads Machine
Round Embossed Cotton Pads At Up To 400 Pieces Per Minute
Model AQ-RD
Gauze Pads Machine
Vertical And Horizontal Cutting With Zigzag Array Output At 2000 Pieces Per Minute
Model AQ-RD
Cotton Pads Making Machine (Square)
Square Cotton Pads From 40 To 100 mm With 304 Stainless Contact Parts
Model AQ-RC
Cotton Pads Making Machine (Round)
58 mm Round Cotton Pads With Imported Roll Cutting Mould
Model AQ-RDSquare Cotton Pads Making Machine With Custom Embossing FAQ
Can the embossing carry our own pattern?
Yes. The embossing can be customised according to the client flower pattern, and international quality steel keeps the indentation from running.
What is the effective breadth?
1200 mm, with a maximum jumbo roll diameter of 800 mm. Customers commonly run 1100 mm cotton roll.
Can pads be produced without embossing?
Yes. A no embossing, no sides sealed configuration is available, and pad size stays adjustable.
What is the lead time?
About 30 days after order confirmation. The engraved embossing roller is produced within that time.
Get A Quotation For The AQ-RC
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Square Cotton Pads Making Machine With Custom Embossing specification, price and delivery.
