Cooler LED Module

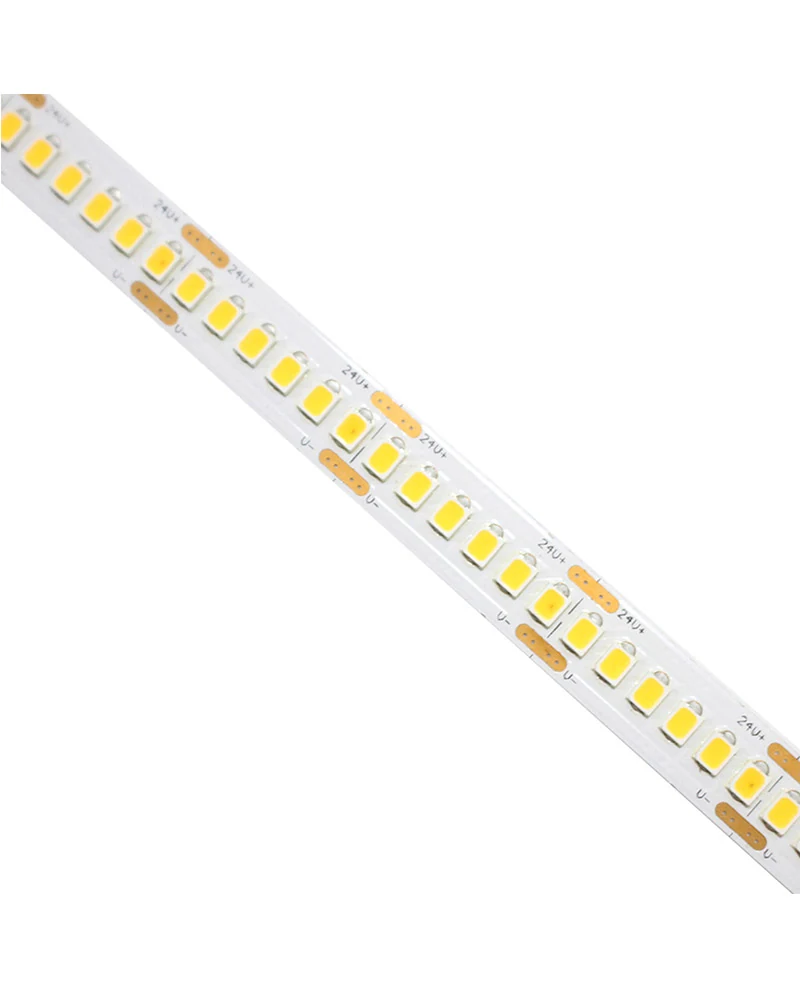

2835 LED Strip Light 24V With IP20 And IP67 Builds
24V 5 m reels from 300 to 800 LEDs, CRI above 90, IP20 or IP67
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
The workhorse 2835 strip in six part numbers, all on 5000 mm reels at 24V. LED count runs from 300 to 800 per reel and power from 24W to 48W, so the same product covers a soft cove wash and a bright cooler shelf. CRI is above 90 across the range, which is higher than the usual strip specification and is the reason it is used for chilled food display.
Key Benefits
Why Buyers Choose This Build
CRI above 90 on every part number, so fresh food and merchandise keep their colour
Six density steps from one product, which lets one profile cover several brightness levels
IP67 available on the 800 LED build for wet and wash-down positions
24V constant voltage works with the drivers already used in cabinet and cove lighting
Application
Where It Fits And What It Fixes
Who It Is For
- Refrigerated case and cabinet manufacturers
- Shopfitters and cove lighting installers
- OEM brands sourcing a high CRI general purpose strip
Problems It Solves
- Chilled display where standard CRI 80 strip makes fresh product look flat
- Cove and cabinet runs that need different brightness in different zones from one supplier
- Wash-down areas where an IP20 strip fails within months
Application Scenarios
- Indoor lighting
- Decorative and cove lighting
- Refrigerator and cooler lighting
- Commercial display lighting
Technical Features
- Energy saving solution provided
- High efficiency solution provided
- Customised in any shape and any size in rigid and flexible module
- CRI above 90
- IP20 and IP67 options
- 24V constant voltage
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- LED Package
- 2835
- Voltage
- 24V
- Reel Length
- 5000 mm
- Power
- 24W or 48W per reel
- LED Count
- 300 to 800 per reel
- Flux
- 650 to 1800 lm/m
- Efficiency
- 80 lm/W
- CCT
- 2700K to 6500K
- CRI
- Above 90
- Ingress Protection
- IP20 or IP67
Part Number Table
| Part Number | Length (mm/reel) | Power (W/reel) | LEDs (pcs/reel) | Voltage (V) | Current (A) | Flux (lm/m) | Efficiency (lm/W) | CCT | Ingress Protection | CRI |
|---|---|---|---|---|---|---|---|---|---|---|
| LK-F24083202060 | 5000 | 24 | 300 | 24 | 1 | 650 | 80 | 2700-6500K | IP20 | >90 |
| LK-F24083202120 | 5000 | 48 | 600 | 24 | 2 | 1300 | 80 | 2700-6500K | IP20 | >90 |
| LK-F24083202070 | 5000 | 24 | 350 | 24 | 1 | 750 | 80 | 2700-6500K | IP20 | >90 |
| LK-F24083202140 | 5000 | 48 | 700 | 24 | 2 | 1500 | 80 | 2700-6500K | IP20 | >90 |
| LK-F24083202080 | 5000 | 24 | 400 | 24 | 1 | 900 | 80 | 2700-6500K | IP20 | >90 |
| LK-F24083202160 | 5000 | 48 | 800 | 24 | 2 | 1800 | 80 | 2700-6500K | IP20 / IP67 | >90 |
Manufacturing
How It Is Made Checked And Customised
Materials
- Flexible FPC carrier
- 2835 mid power LED package
- Silicone or PU coating on the IP67 build
Manufacturing Process
- Solder paste printing
- Reel to reel SMT placement
- Reflow soldering
- Coating for the IP67 build
- Lit inspection
- Reeling and packing
Quality Control
- Incoming LED binning
- Automated optical inspection
- Full reel lit inspection
- Colour consistency sorting
- Waterproof verification on IP67 reels
Certifications
- CE
- RoHS
Customisation Options
- Any shape and size in rigid and flexible module
- LED density and reel length
- CCT and CRI selection
- IP rating and coating
Comparison
How It Compares With Other Products In The Range
Compared With LED Strip Light 2216
Higher output per reel up to 2100 LEDs and 9600 lm/m, for brighter linear applications
Compared With LED Strip Light 2110 700LED
A denser small package strip at CRI above 90 for seamless dot free lines
Use Guide
Specifying And Installing It Correctly
- Match the LED count to the required lumens per metre rather than to the reel wattage
- Keep 24V runs within the voltage drop limit or feed the reel from both ends
- Use the IP67 build wherever condensation or cleaning water can reach the strip
Related Products
Other Products Worth Comparing
LED Module
LED Strip Light 2216
High density 2216 strip from 600 to 2100 LEDs per reel, up to 9600 lm/m
View Specifications →
LED Module
LED Strip Light 5050
5050 package strip across white, RGB, RGBW and RGBWW with IP20 or IP67
View Specifications →
LED Module
LED Strip Light 2110 700LED
700 LEDs per metre on the 2110 package, 3500 per reel, for a genuinely seamless line
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Refrigeration And Cold Display
Lighting for refrigerated cases has to work at low temperature, survive condensation and wash-down, render fresh food honestly and add as little heat as possible to the plant.
Read More →
Residential Cabinet And Wardrobe
Cabinet and wardrobe lighting is a detail, and details are looked at closely.
Read More →
Buying Guide
How To Choose LED Modules For Cooler Lighting
Cold display lighting is chosen on four things at once: efficacy, colour rendering, sealing and physical fit. This guide works through them in the order that actually affects the decision.
Read The Guide →
Product Guide
Understanding IP20 IP65 And IP67 For LED Strips
The IP number on a strip datasheet describes the strip as it leaves the factory, not as it will be after it has been cut, joined and installed. This guide explains what each rating means in practice.
Read The Guide →FAQ
Strip Light 2835 Energy Saving Solution FAQ
What CRI does this strip hold?
Above 90 on every part number listed.
What is the brightest option?
The LK-F24083202160 at 48W and 1800 lm/m with 800 LEDs per reel.
Is a waterproof version available?
Yes, the 800 LED build is offered in IP20 or IP67.
Can the strip be made in a custom shape?
Yes. Customised shapes and sizes are available in both rigid and flexible module form.
Request A Quote For Strip Light 2835 Energy Saving Solution
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
