Cooler LED Module

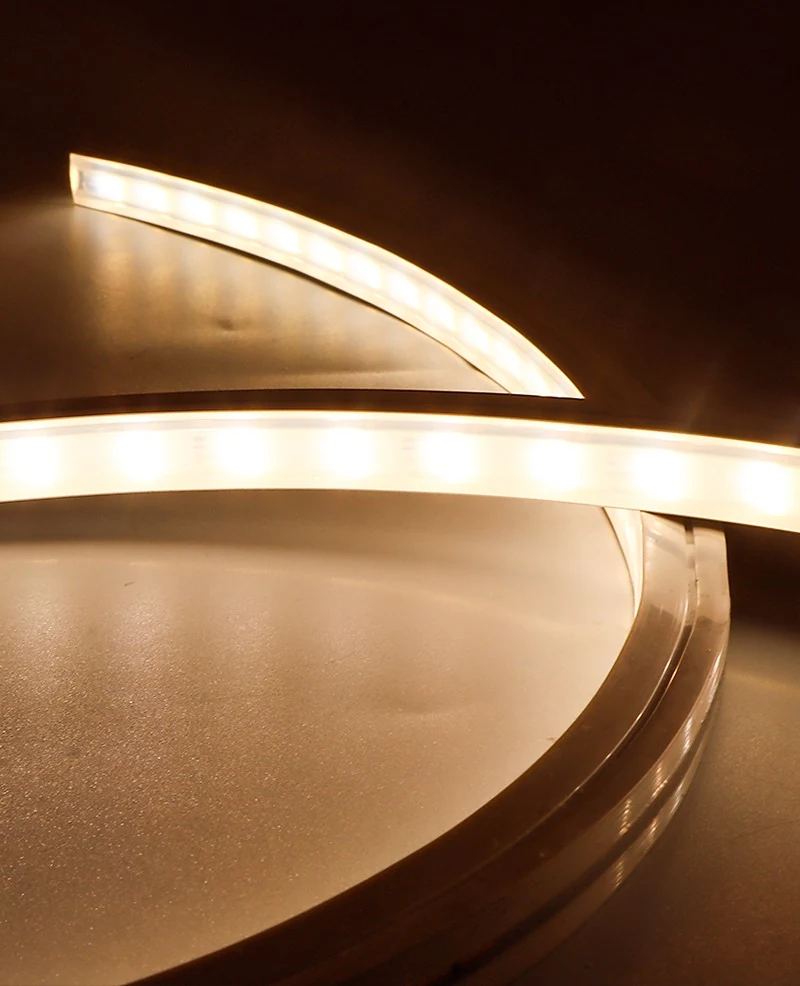

Multiple Beam Angle Neon Flex IP67 For Cooler And Decorative Lighting
Lensed neon flex at 120 LEDs per metre and 10W per metre with a 25 degree beam
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
Neon flex with a lens inside the silicone body, so the beam can be controlled instead of glowing in every direction. The listed build is a 25 degree beam at 120 LEDs per metre and 10W per metre on 24V, IP67, with CRI 80 or 90 and SDCM below 3. The silicone is extruded rather than moulded, which is why the strip stays soft, and it is a top bend body with a short cut length.
Key Benefits
Why Buyers Choose This Build
A lens inside the neon body gives beam control that a plain glowing neon cannot
Quality silicone extrusion keeps the strip soft enough to follow tight case geometry
Top bend design lets the strip turn in the vertical direction without kinking
Short cut design means less waste when fitting it to fixed case widths
Application
Where It Fits And What It Fixes
Who It Is For
- Refrigerated case manufacturers using neon profile lighting
- Decorative and facade lighting installers
- Shopfitters who need a bendable lit line with a controlled beam
Problems It Solves
- Cooler cases where an unlensed neon wastes light on the case wall instead of the product
- Tight internal geometry that a stiff neon body cannot follow
- Fixed case widths where a long cut unit wastes material on every run
Application Scenarios
- Cooler and refrigerated case lighting
- Decorative lighting
- Facade lighting
- Indoor and outdoor architectural detail
Technical Features
- Multiple beam angle neon flex
- Energy saving solution provided
- LED with lens, different beam angles available
- Quality silicone with extrusion process for a softer strip
- Top bend design, bends in the vertical direction
- Short cut design, can be cut to very short lengths
- Waterproof design reaching IP67
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Ingress Protection
- IP67
- Voltage
- 24V constant voltage
- Power
- 10W per metre
- LED Density
- 120 per metre
- Beam Angle
- 25 degrees
- Efficiency
- 70 to 75 lm/W
- Flux
- 700 to 750 lm/m
- CRI
- 80 or 90
- SDCM
- Below 3
- CCT
- 2700K to 6500K
- Bending
- Top bend
Part Number Table
| Product Model | LED Package | CRI | SDCM | CCT | Luminous Angle | Drive | Voltage | LEDs Per Metre | Efficiency | Flux Per Metre | Power Per Metre |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RL-FV2410120283510-8XX-FWD1212-25 | 2835 | 80 / 90 | Below 3 | 2700-6500K | 25 degrees | Constant voltage | 24V | 120 | 70-75 lm/W | 700-750 lm/m | 10W/m |
Manufacturing
How It Is Made Checked And Customised
Materials
- Extruded silicone neon body
- 2835 LED package with lens
- Flexible FPC carrier
Manufacturing Process
- SMT placement
- Reflow soldering
- Lens fitting
- Silicone extrusion over the board
- IP67 verification
- Lit inspection
- Reeling
Quality Control
- Incoming LED binning to SDCM 3
- Extrusion dimension check
- IP67 immersion verification
- Full reel lit inspection
Certifications
- CE
- RoHS
Customisation Options
- Beam angle selection
- CCT and CRI selection
- Cut length and end cap
- Body dimension
Comparison
How It Compares With Other Products In The Range
Compared With Neon Strip Side Bending
A side bend body in 15 x 15 and 10 x 20 mm for horizontal curves
Compared With Neon Strip 3D Bending And Free Cutting
Bends in any direction and cuts at any length, at the cost of the lens beam control
Use Guide
Specifying And Installing It Correctly
- Use the 25 degree build where the light has to reach a shelf rather than fill the case
- Bend in the top direction only, as the body is designed for vertical bending
- Seal every cut with a proper end cap to keep the IP67 rating
Related Products
Other Products Worth Comparing
LED Module
Neon Strip Slim Digital Neon Flex Strip Light
The slim neon body at 6 x 14 mm and 8 x 16 mm, up to 140 LEDs per metre
View Specifications →
Cooler LED Module
Neon Strip Side Bending Digital Neon Flex
Side bending neon flex in two body sizes, single colour through to DMX RGBW
View Specifications →
Cooler LED Module
Neon Strip 3D Bending And Free Cutting
Neon flex that bends in any direction and cuts at any length
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Refrigeration And Cold Display
Lighting for refrigerated cases has to work at low temperature, survive condensation and wash-down, render fresh food honestly and add as little heat as possible to the plant.
Read More →FAQ
Neon Strip Multiple Beam Angle For Cooler Application FAQ
What beam angle is listed?
25 degrees, on the 120 LED per metre build.
Which direction does it bend?
Top bend, in the vertical direction.
How short can it be cut?
It uses a short cut design. Confirm the exact cut unit for the build ordered.
What is the output per metre?
700 to 750 lm/m at 10W per metre.
Request A Quote For Neon Strip Multiple Beam Angle For Cooler Application
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
