Product Overview
What This Product Is And Who It Is For

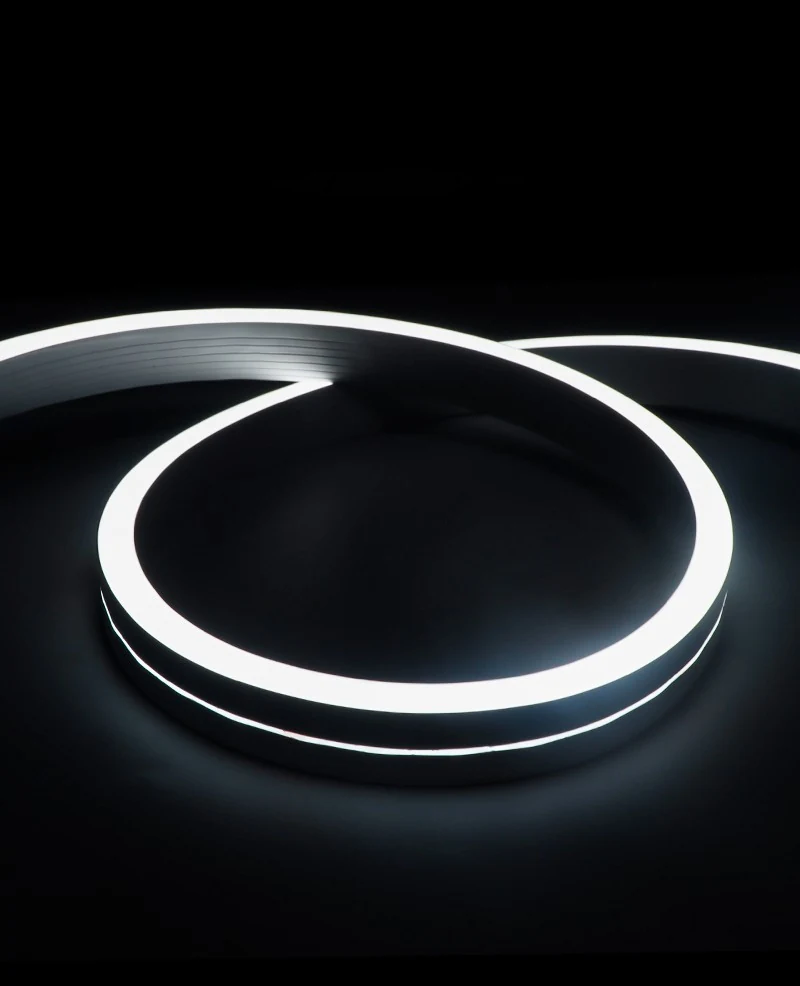

Side bend neon flex in 15 x 15 mm and 10 x 20 mm bodies, for runs that curve in the horizontal plane, which is what most signage and case profile work needs. Builds run from single colour 2835 at 120 or 140 LEDs per metre through CCT tunable, SPI RGB and DMX RGB or RGBW. It is IP67, carries CE, UL and RoHS certificates and is offered with a 3 year or 5 year warranty.
Key Benefits
Why Buyers Choose This Build
Side bending suits signage, case profiles and horizontal curves that a top bend body cannot follow
Two body sizes so the profile matches the channel already in the design
Single colour through to DMX RGBW on the same body
3 year or 5 year warranty options
Application
Where It Fits And What It Fixes
Who It Is For
- Sign makers and channel letter fabricators
- Refrigerated case and display manufacturers
- Landscape and decorative lighting installers
Problems It Solves
- Signage and profile runs that curve horizontally where a top bend body kinks
- Projects that need matched static and pixel sections in the same channel size
- Specifications that require a stated warranty term rather than an assurance
Application Scenarios
- Refrigerator and case lighting
- Landscape lighting
- Indoor and outdoor decorative runs
- Signage and channel letters
Technical Features
- Side bend digital neon flex
- Body dimensions 15 x 15 mm and 10 x 20 mm
- Single colour, CCT tunable, SPI RGB and DMX RGB or RGBW
- IP67 waterproof
- Warranty 3 years or 5 years optional
- Certificates CE, UL and RoHS
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Body Dimensions
- 15 x 15 mm or 10 x 20 mm
- Bending Direction
- Side bend
- Ingress Protection
- IP67
- Voltage
- 24V constant voltage
- Power
- 8W to 12W per metre
- Colour Options
- Single colour, CCT tunable, SPI RGB, DMX RGB and RGBW
- Warranty
- 3 years or 5 years optional
- Certificates
- CE, UL, RoHS
Part Number Table
| Part Number | IP Level | LED Type | CRI | SDCM | CCT | Drive | Voltage | LEDs Per Metre | Efficacy | Power Per Metre | Width | Cut Unit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LK-FV2410120283508-XXX-FWS1515 | IP67 | 2835 | 80 / 90 | Below 3 | 2700-6500K | Constant voltage | 24V | 120 | 35-45 lm/W | 8W/m | 10 mm | 6 LED / 50 mm |
| LK-FV2410140283508-XXX-FWS1515 | IP67 | 2835 | 80 / 90 | Below 3 | 2700-6500K | Constant voltage | 24V | 140 | 35-45 lm/W | 8W/m | 10 mm | 7 LED / 50 mm |
| LK-FV2410060505008-RGB-FWS1515 | IP67 | 5050 RGB | - | - | RGB | Constant voltage | 24V | 60 | - | 8W/m | 10 mm | 6 LED / 100 mm |
| LK-FV2410060505012-SPI-FWS1515 | IP67 | 5050 RGB SPI | - | - | RGB | Constant voltage | 24V | 60 | - | 12W/m | 10 mm | 6 LED / 100 mm |
| LK-FV2410060505012-DMX-FWS1515 | IP67 | 5050 RGB DMX | - | - | RGB | Constant voltage | 24V | 60 | - | 12W/m | 10 mm | 6 LED / 100 mm |
Manufacturing
How It Is Made Checked And Customised
Materials
- Extruded silicone neon body
- 2835 and 5050 LED packages
- Flexible FPC carrier with 2 oz copper
Manufacturing Process
- SMT placement
- Control IC placement on SPI and DMX builds
- Reflow soldering
- Silicone extrusion
- IP67 verification
- Sequence test
- Reeling
Quality Control
- Incoming LED and IC inspection
- Extrusion dimension check
- IP67 immersion verification
- Addressable sequence verification
- Lit inspection
Certifications
- CE
- UL
- RoHS
Customisation Options
- Body dimension
- Colour and control protocol
- Cut unit and end caps
- Warranty term
Comparison
How It Compares With Other Products In The Range
Compared With Neon Strip Slim Digital Neon Flex Strip Light
A slimmer 8 x 16 mm or 6 x 14 mm body for tighter channels
Compared With Neon Strip 3D Bending And Free Cutting
Bends in any direction and cuts at any length rather than on a fixed unit
Use Guide
Specifying And Installing It Correctly
- Match the body size to the channel before ordering, as 15 x 15 and 10 x 20 mm are not interchangeable
- Respect the cut unit, which is 50 mm on single colour and 100 mm on colour builds
- Confirm the warranty term you need on the order, as 3 and 5 year options exist
Related Products
Other Products Worth Comparing
LED Module
Neon Strip DMX SPI Media Ribbon IP67 1516
Pixel controlled media ribbon at 10 pixels per metre in DMX and SPI, IP67
View Specifications →
LED Module
Neon Strip Slim Digital Neon Flex Strip Light
The slim neon body at 6 x 14 mm and 8 x 16 mm, up to 140 LEDs per metre
View Specifications →
Cooler LED Module
Neon Strip 3D Bending And Free Cutting
Neon flex that bends in any direction and cuts at any length
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Refrigeration And Cold Display
Lighting for refrigerated cases has to work at low temperature, survive condensation and wash-down, render fresh food honestly and add as little heat as possible to the plant.
Read More →
Design Guide
Top Bend Side Bend And 3D Bend Neon Flex Explained
Which way a neon flex body bends is the first thing to establish, because it decides whether the detail on the drawing can be built as drawn.
Read The Guide →FAQ
Neon Strip Side Bending Digital Neon Flex FAQ
What body sizes are available?
15 x 15 mm and 10 x 20 mm.
Which direction does it bend?
Side bend, for curves in the horizontal plane.
What is the cut unit?
6 LEDs over 50 mm on the single colour builds and 6 LEDs over 100 mm on the colour builds.
What warranty is offered?
3 years or 5 years, selected at order stage.
Request A Quote For Neon Strip Side Bending Digital Neon Flex
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
