Cooler LED Module

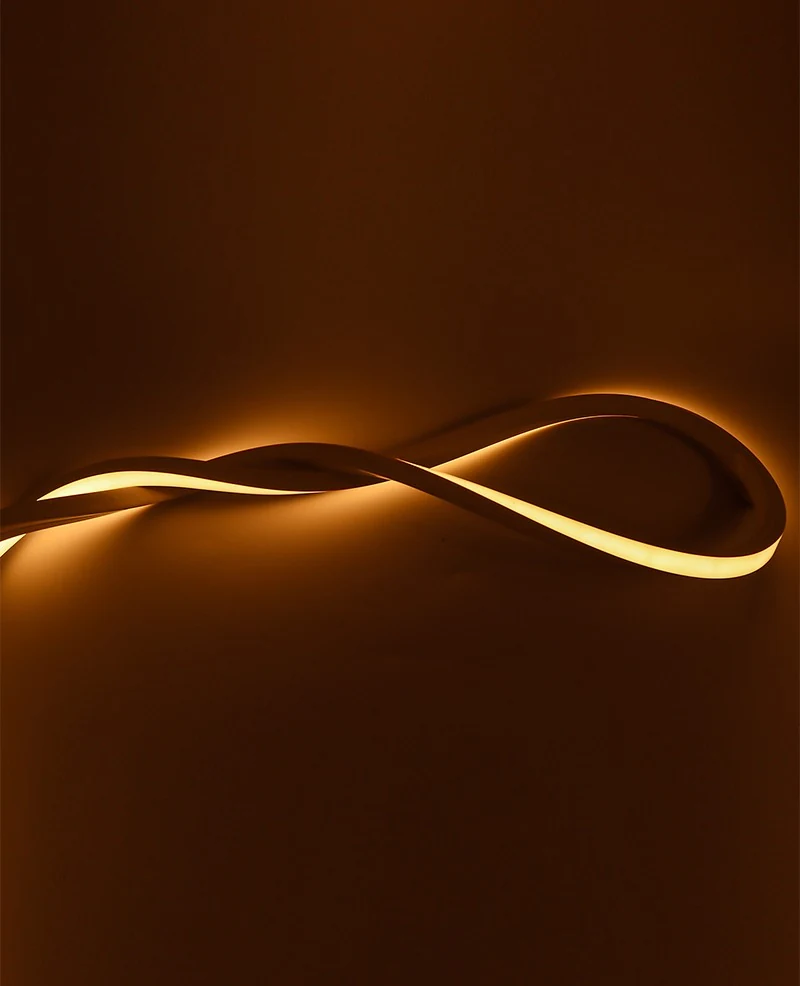

3D Bending And Free Cutting Neon Flex IP67
Neon flex that bends in any direction and cuts at any length
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
Most neon flex bends one way and cuts on a fixed unit. This build does neither: the extruded silicone body bends in any direction and the strip can be cut at any length. For an installer that removes the two constraints that cause most on-site waste and most compromises in the design. It is IP67 and specified for refrigerator profile lighting, decorative lighting and facade lighting, indoors and out.
Key Benefits
Why Buyers Choose This Build
Bends in any direction, so a 3D detail does not have to be broken into straight sections
Free cutting at any length removes the waste that a fixed cut unit forces
Quality silicone extrusion keeps the body soft enough to take a tight radius
IP67 waterproof for outdoor facade and exposed positions
Application
Where It Fits And What It Fixes
Who It Is For
- Architectural and decorative lighting installers working in three dimensions
- Sign makers building curved and sculptural forms
- Refrigerated case manufacturers lighting profiled internal shapes
Problems It Solves
- Curved 3D details that a single axis neon body cannot follow
- Fixed length runs where a 50 or 100 mm cut unit wastes material on every piece
- Installations where the design has to be simplified because the material will not bend
Application Scenarios
- Refrigerator profile lighting
- Decorative lighting
- Facade lighting
- Sculptural and curved architectural detail
Technical Features
- 3D bending design, bends in any direction
- Free cutting design, cuts at any length
- Quality silicone with extrusion process for a softer strip
- Waterproof design reaching IP67
- Suitable for indoor and outdoor use
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Bending
- 3D, any direction
- Cutting
- Free cutting, any length
- Ingress Protection
- IP67
- Body
- Extruded silicone
- Application
- Refrigerator profile, decorative and facade lighting
- Detailed Electrical Specification
- Confirmed per order
Manufacturing
How It Is Made Checked And Customised
Materials
- Extruded silicone neon body
- Flexible FPC carrier
- Mid power LED package
Manufacturing Process
- SMT placement
- Reflow soldering
- Silicone extrusion
- IP67 verification
- Lit inspection
- Reeling
Quality Control
- Incoming LED inspection
- Bend radius verification
- IP67 immersion verification
- Lit inspection along the reel
Certifications
- CE
- RoHS
Customisation Options
- Body dimension
- CCT and CRI selection
- End cap and connector
- Colour build
Comparison
How It Compares With Other Products In The Range
Compared With Wall Washer Neon Strip 3D Bending
Adds a lens and a wall washing beam over 3 to 5 metres to the same 3D bending body
Compared With Neon Strip Side Bending
A side bend body with a fixed cut unit, when free cutting is not needed
Use Guide
Specifying And Installing It Correctly
- Seal each free cut with an end cap, otherwise the IP67 rating ends at the cut
- Plan the run as a single continuous piece where possible, since there is no cut unit forcing joints
- Keep the bend radius within the limit stated for the body size ordered
Related Products
Other Products Worth Comparing
LED Module
Neon Strip DMX SPI Media Ribbon IP67 1516
Pixel controlled media ribbon at 10 pixels per metre in DMX and SPI, IP67
View Specifications →
LED Module
Neon Strip Slim Digital Neon Flex Strip Light
The slim neon body at 6 x 14 mm and 8 x 16 mm, up to 140 LEDs per metre
View Specifications →
Cooler LED Module
Neon Strip Side Bending Digital Neon Flex
Side bending neon flex in two body sizes, single colour through to DMX RGBW
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Automotive Ambient Lighting
Ambient lines inside a vehicle interior have to be thin, follow compound curves and show no visible dots at arm's length.
Read More →
Design Guide
Top Bend Side Bend And 3D Bend Neon Flex Explained
Which way a neon flex body bends is the first thing to establish, because it decides whether the detail on the drawing can be built as drawn.
Read The Guide →FAQ
Neon Strip 3D Bending And Free Cutting FAQ
Can it really bend in any direction?
Yes, the 3D bending design allows bending in any direction, unlike top bend or side bend bodies.
Can it be cut anywhere?
Yes, it uses a free cutting design rather than a fixed cut unit.
What ingress protection does it have?
IP67, suitable for indoor and outdoor use.
What are the electrical specifications?
They are confirmed per order. Send the run length and target output with the enquiry.
Request A Quote For Neon Strip 3D Bending And Free Cutting
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
