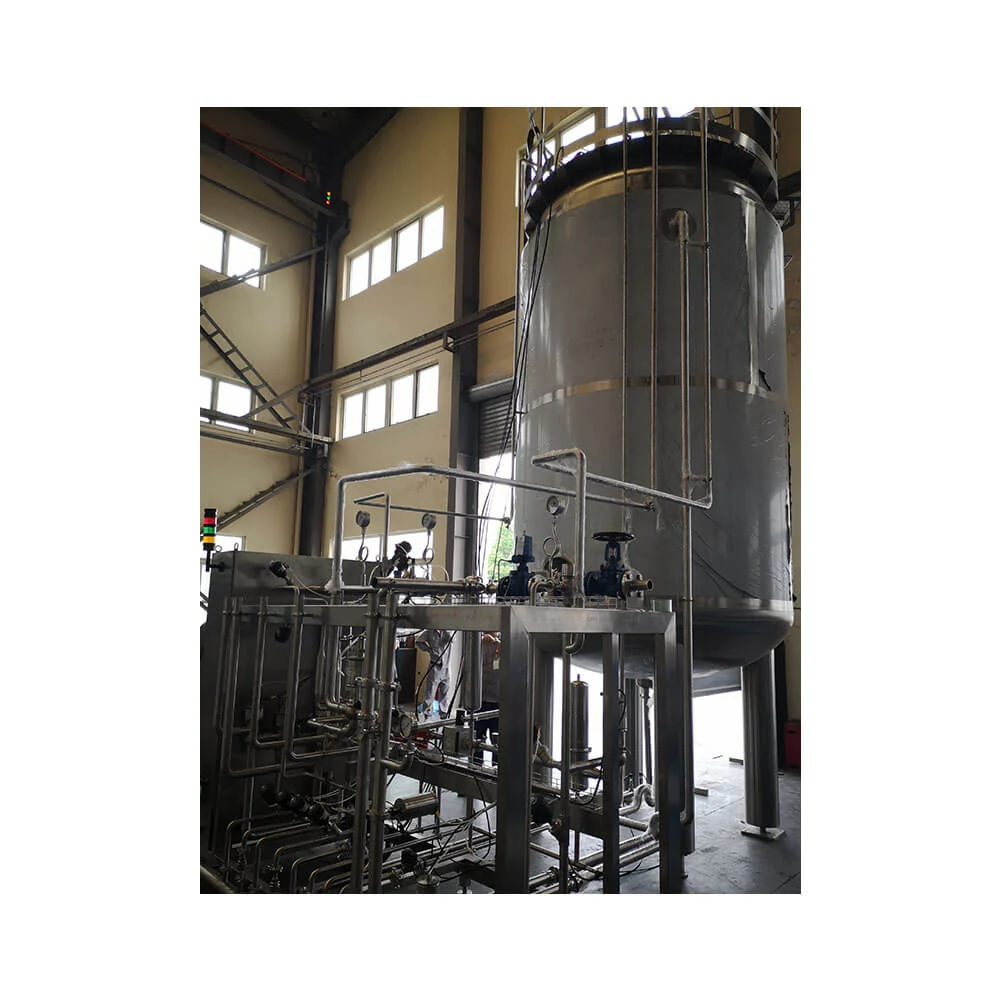

A tank for holding aseptic food product between sterilisation and filling in dairy, fruit juice and beverage factories. Product contact parts are SUS316L stainless steel and the remaining structure is SUS304. The build includes an aseptic stirrer, an aseptic pressure manway, a CIP cleaning ball, a Siemens load scale and a PLC full automatic control system, with ladder, handrail, guardrail and supporting legs supplied as part of the tank. Standard volumes are 10T, 15T, 20T and 30T and can be customised.
Holding sterilised product aseptically decouples the sterilisation step from the filler so a filler stoppage does not force the process side to stop
Aseptic pressure manway and aseptic stirrer keep the tank closed to the room while the contents are still agitated
SUS316L product contact with SUS304 structure puts the higher grade where the product touches rather than across the whole tank
Siemens load scale gives contents by weight so filling can be planned against a real figure
Ladder handrail guardrail and supporting legs are supplied with the tank so access does not need separate site steelwork
Without aseptic buffer storage the steriliser must stop every time the filler stops
Open or semi closed buffer vessels put sterilised product back at risk of recontamination
Estimating tank contents by sight makes filling scheduling unreliable
Tanks supplied without access steelwork need extra site fabrication before commissioning
| Product Model | HTK-AT-01 |
|---|---|
| Volume | 10T 15T 20T and 30T customised |
| Product Contact Material | SUS316L |
| Other Parts Material | SUS304 |
| Weighing | Siemens load scale |
| Control | PLC full automatic |
| Minimum Order | One unit |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
The aseptic tank is built closed with an aseptic manway and stirrer to protect sterilised product
A silo holds raw or cooled milk while the aseptic tank holds already sterilised product ahead of filling
The Siemens load scale reports contents by weight so filling runs can be planned
High Speed Emulsification Tank
A mixing tank with a high speed emulsification head mounted at the bottom, used in dairy, fruit juice and beve...
View Details →
High Shear Tank
A jacketed mixing tank with a high shear mixer running at 3600RPM, used in dairy, fruit juice and food beverag...
View Details →
Yogurt Fermentation Tank
A vertical fermentation tank for making yogurt, combining mechanical blending with the fermentation hold. The ...
View Details →
Herbal and Tea Extraction Tank
Model HTK-CQG-01 extracts herbal or tea liquor from leaves. The vessel is a vertical three layer tank with ins...
View Details →Standard sizes are 10T, 15T, 20T and 30T, and the volume can be customised.
Product contact parts are SUS316L stainless steel and the other parts are SUS304 stainless steel.
A CIP cleaning ball is fitted and the tank is built with no dead corner, so cleaning is done in place.
Yes. A Siemens load scale is part of the standard build so contents are known by weight.
Ladder, handrail, guardrail and supporting legs are part of the standard component list.
It depends on the volume and control scope specified and is confirmed in writing with the quotation.
Send the drawing, capacity or duty cycle you need and we will come back with the factory match, the build detail and the commercial terms.
