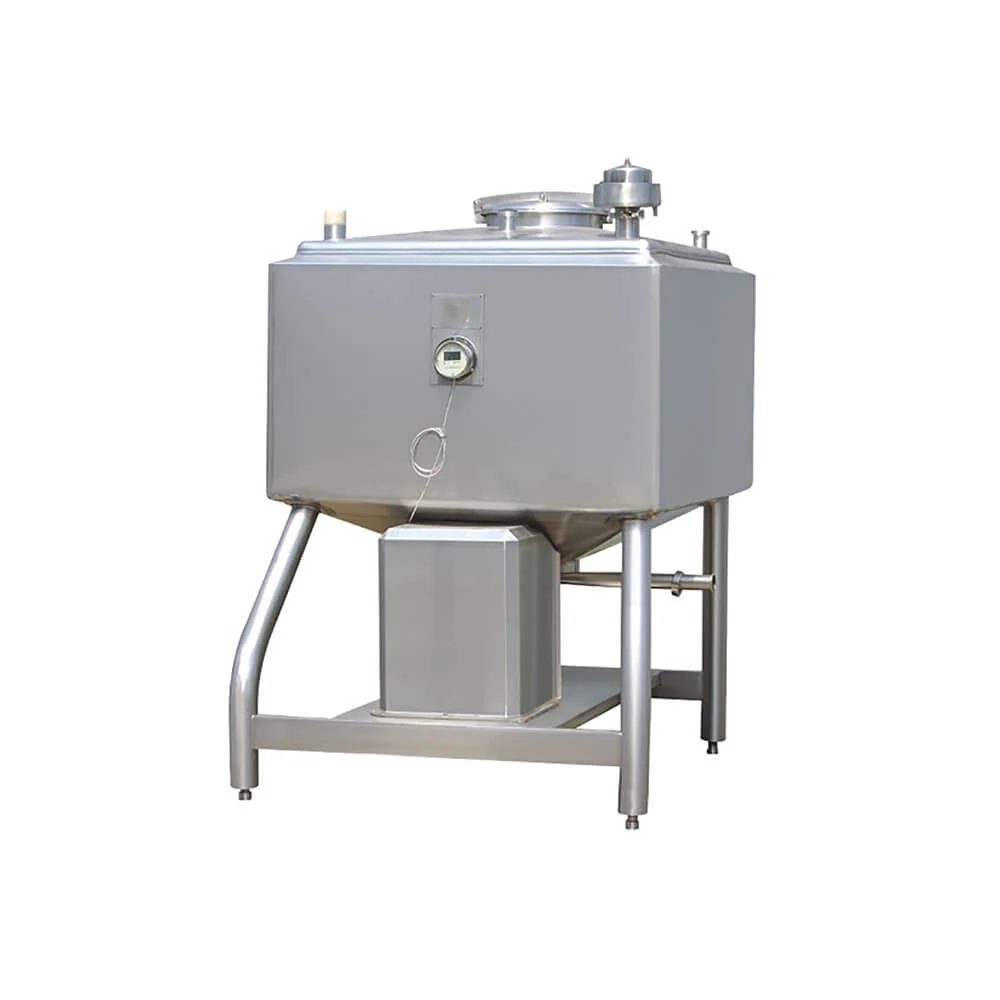

A mixing tank with a high speed emulsification head mounted at the bottom, used in dairy, fruit juice and beverage production to bring sugar, milk powder, starch, glue and colloids, stabiliser and other ingredients into a liquid base. The vessel is a three layer tank with insulation and a dimple jacket so batch temperature can be managed during mixing. Mixing type is high shear emulsification at a mixer speed of 1440RPM. Volumes run from 500L to 3000L, customised, with the shell in SUS304 or SUS316L.
Bottom mounted high shear emulsification pulls powders into the liquid instead of leaving them floating on the surface
Stabiliser and colloid systems disperse without the lumps that block downstream filters and pumps
Three layer insulated dimple jacket construction lets the batch be held or heated while it is being dispersed
Volume from 500L to 3000L suits premix batches rather than forcing a full production tank to be used for dispersion
CIP cleaning ball and ellipse manway allow cleaning after sticky colloid batches without dismantling
Powders added to a low shear blending tank float and form lumps that never fully disperse
Undispersed stabiliser causes texture defects that only appear in the finished product
Lumps and fisheyes block downstream filters homogenizers and fillers
Dispersing powders in the main blending tank ties up production volume for a premix step
| Product Model | HTK-RHG-01 |
|---|---|
| Volume | 500L to 3000L customised |
| Material | SUS304 or SUS316L |
| Structure | Three layer tank with insulation and dimple jacket |
| Mixing Type | High shear emulsification |
| Mixer Speed | 1440RPM |
| Minimum Order | One unit |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
The high shear tank runs a top mounted high shear mixer while this tank applies emulsification from the tank bottom
A blending tank mixes an already dispersed liquid while this tank is built to pull powders into the base
A homogenizer works on product in flow under pressure while this tank disperses ingredients in a batch
High Shear Tank
A jacketed mixing tank with a high shear mixer running at 3600RPM, used in dairy, fruit juice and food beverag...
View Details →
Yogurt Fermentation Tank
A vertical fermentation tank for making yogurt, combining mechanical blending with the fermentation hold. The ...
View Details →
Herbal and Tea Extraction Tank
Model HTK-CQG-01 extracts herbal or tea liquor from leaves. The vessel is a vertical three layer tank with ins...
View Details →
Bright Beer Tank
The bright beer tank, also called a serving tank or clear beer tank, is where beer matures, clarifies and carb...
View Details →Mixing is high shear emulsification at a mixer speed of 1440RPM, with the emulsification head at the bottom of the tank.
From 500L to 3000L, customised to the premix batch size.
Sugar, milk powder, starch, glue and colloids, stabiliser and other ingredients used in food production.
It carries insulation and a dimple jacket, so batch temperature can be managed while the ingredients are being dispersed.
A CIP cleaning ball is fitted as standard and an ellipse manway gives access for inspection.
Manufacturing time follows the tank volume and grade specified and is stated in writing with the quotation.
Send the drawing, capacity or duty cycle you need and we will come back with the factory match, the build detail and the commercial terms.
