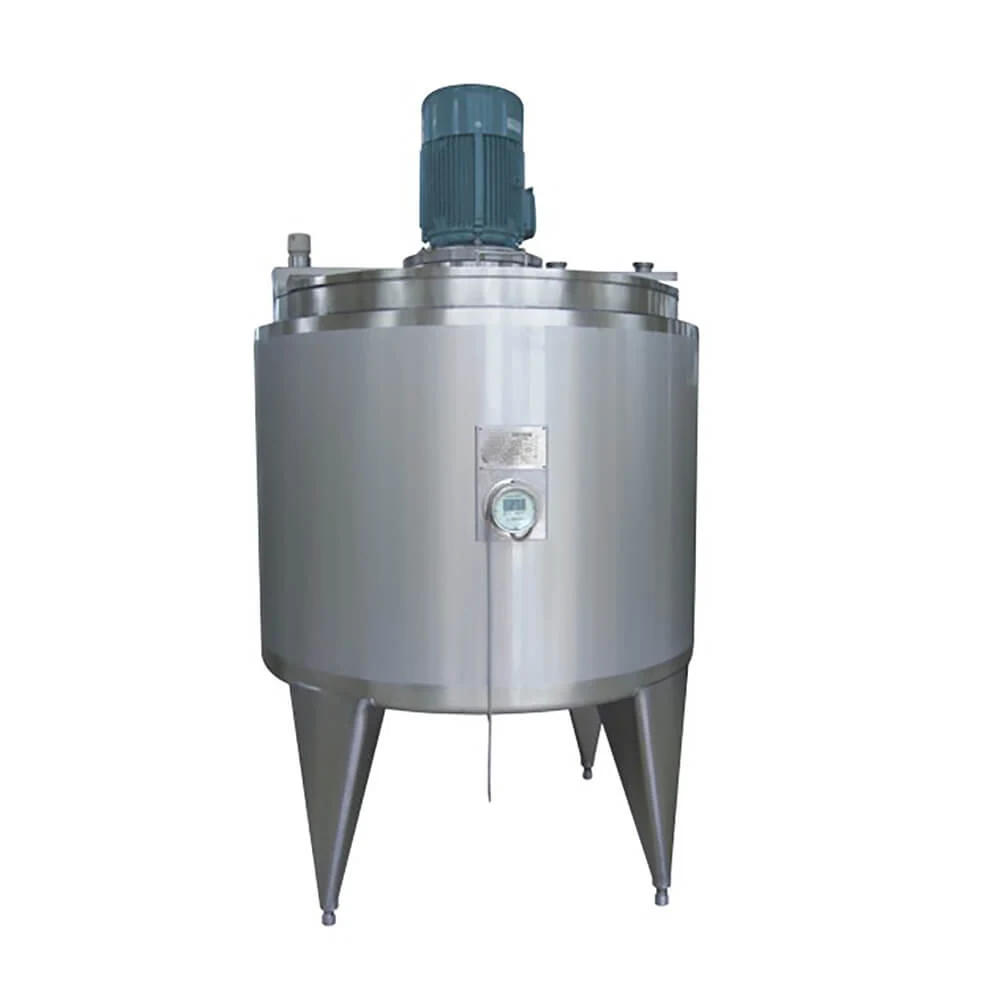

A jacketed mixing tank with a high shear mixer running at 3600RPM, used in dairy, fruit juice and food beverage production to mix sugar, milk powder, milk and juice products, beverages, starch, glue and colloids, stabiliser and other ingredients. The vessel is a three layer tank with insulation and jacket, built in SUS304 or SUS316L, with volumes from 500L to 3000L, customised. Standard fittings include a CIP cleaning ball, sight glass and sight lamp, temperature sensor, baffle plate, lifting ears, pull rod and four adjustable supporting legs.
High shear mixing at 3600RPM breaks down agglomerates that a conventional agitator leaves intact
Baffle plate stops the batch from simply rotating so shear is applied to the product instead of spinning it
Sight glass and sight lamp let the operator confirm dispersion without opening the tank
Four adjustable supporting legs allow levelling on an uneven plant floor without shimming
Insulated jacketed three layer build keeps batch temperature controlled through a long shear cycle
Agglomerated powder passes through a low shear agitator and reaches the product unmixed
Batches that rotate as a body get little effective mixing without a baffle
Opening a tank to check dispersion breaks the hygienic envelope
Fixed legs on an uneven floor leave a tank that will not drain fully
| Product Model | HTK-JQG-01 |
|---|---|
| Volume | 500L to 3000L customised |
| Material | SUS304 or SUS316L |
| Structure | Three layer tank with insulation and jacket |
| Mixing Type | High shear mixer |
| Mixer Speed | 3600RPM |
| Minimum Order | One unit |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
That tank places an emulsification head at the bottom while this one runs a high shear mixer for agglomerate breakdown
The blending tank handles general recipe mixing while this vessel applies shear to break agglomerates
A fermentation tank holds a batch under slow agitation while this tank is built for intensive shear mixing
Yogurt Fermentation Tank
A vertical fermentation tank for making yogurt, combining mechanical blending with the fermentation hold. The ...
View Details →
Herbal and Tea Extraction Tank
Model HTK-CQG-01 extracts herbal or tea liquor from leaves. The vessel is a vertical three layer tank with ins...
View Details →
Bright Beer Tank
The bright beer tank, also called a serving tank or clear beer tank, is where beer matures, clarifies and carb...
View Details →
Beer Fermentation Tank
Fermentation is where yeast turns wort into beer, and model HTK-BFJG-01 is the vessel that step runs in. It is...
View Details →The high shear mixer runs at 3600RPM.
From 500L to 3000L, customised to your batch size.
Sugar, milk powder, milk products, juice products, beverages, starch, glue and colloids, stabiliser and other food production ingredients.
A sight glass and sight lamp are fitted so the batch can be viewed without opening the tank, along with a temperature sensor.
Yes. Four adjustable supporting legs are part of the standard build.
It depends on volume, grade and fitting list and is confirmed in writing with the quotation.
