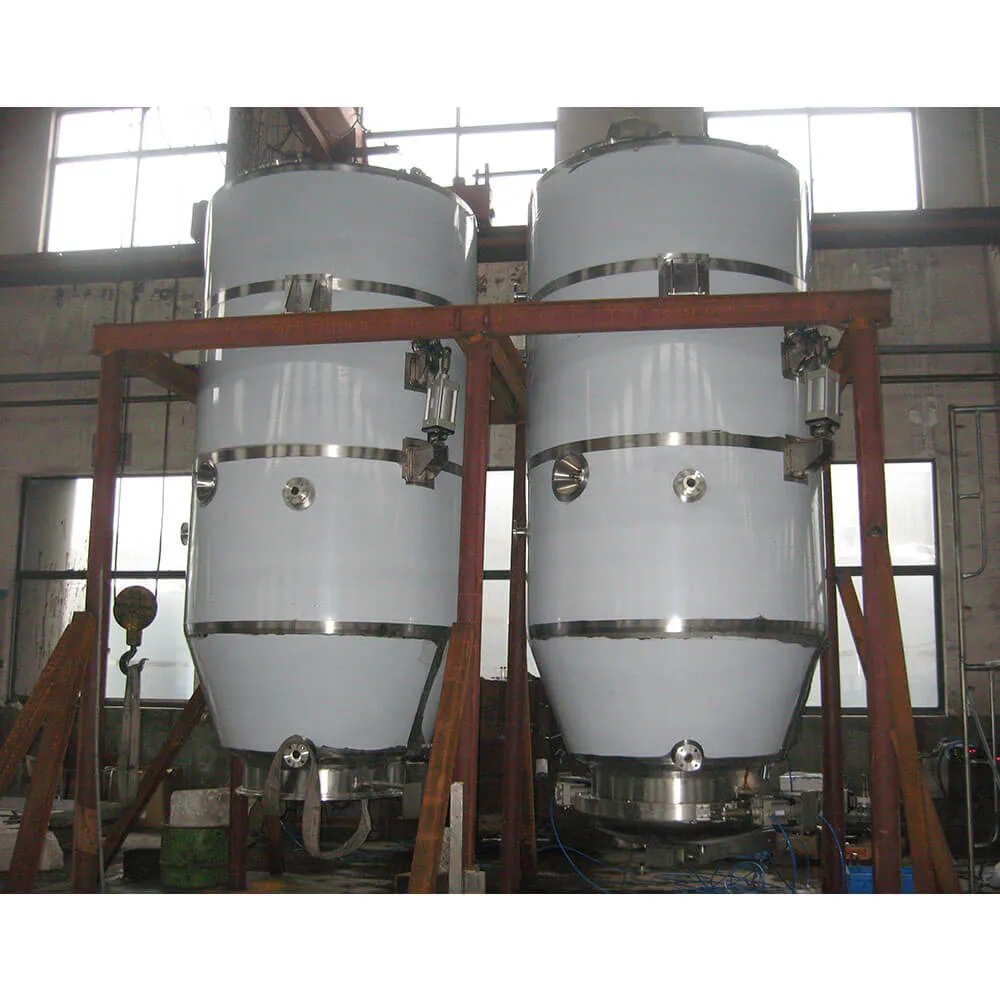

Model HTK-CQG-01 extracts herbal or tea liquor from leaves. The vessel is a vertical three layer tank with insulation and a dimple jacket, so heat is applied evenly through the jacket and held by the insulation rather than lost through the shell during a long extraction hold. A paddle type agitator keeps the leaf bed moving so extraction is even instead of channelled. Volume runs 1000L to 5000L in SUS304 or SUS316L, and the standard fit includes product inlet and outlet, airtight manway, top elliptical cover, bottom conical cover, CIP cleaning ball, temperature sensor, high and low liquid level sensors, lifting ear and four adjustable supporting legs. Workshop output is 50Unit/Month.
Three layer insulated construction holds extraction temperature through a long hold instead of bleeding heat to the room
Dimple jacket spreads heating across the shell which avoids scorching the leaf against a hot spot
Paddle type agitator keeps the leaf bed moving so extraction is even rather than channelled
CIP cleaning ball lets the vessel be cleaned in place between batches without opening it up
High and low liquid level sensors with a temperature sensor give the operator the readings the batch record needs
Four adjustable supporting legs let the tank sit level on a floor that is not
Bottom conical cover drains the vessel out rather than leaving product in the base
Uninsulated vessels lose extraction temperature over a long hold and give inconsistent yield
Direct heating without a jacket scorches leaf against the vessel wall
Static leaf beds channel so parts of the charge are never fully extracted
Vessels without CIP have to be opened and hand cleaned between recipes which costs shift time
| Product Name | Herbal extraction tank / Tea extraction tank |
|---|---|
| Product Model | HTK-CQG-01 |
| Product Volume | 1000L to 5000L customized |
| Material | SUS304 / SUS316L |
| Structure | Vertical three layer tank with insulation and dimple jacket |
| Agitator Type | Paddle type agitator |
| MOQ | One unit |
| Production Capacity | 50Unit/Month |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
A single wall vessel loses heat through the shell while the three layer insulated build holds the extraction temperature
A static leaf bed channels whereas the paddle agitator keeps extraction even through the charge
SUS304 suits general duty while SUS316L is chosen where the extract is more aggressive to the contact surface
