KY2026 Compact Side Keypad for Kiosks

Product Overview

KY2026 is the smallest side keypad in the range, with a 98*26mm visible face on a 115*26mm overall body. It gives a self-service terminal a row of stainless steel function keys beside the display while taking almost no bezel height. Connection is by pin interface directly to a KEYU EPP.

98*26mm face keeps the visible bezel strip as narrow as possible
115*26mm overall body gives mounting flange without adding height
Direct pin connection to a KEYU EPP, avoiding a separate keypad controller
Over 2 million operations per key for machines used all day
1.5mm key trip preserves tactile feedback in a compact keypad
Customized layouts for the exact number of menu keys you need

KY2026 compact stainless steel side keypad with 98*26mm front panel

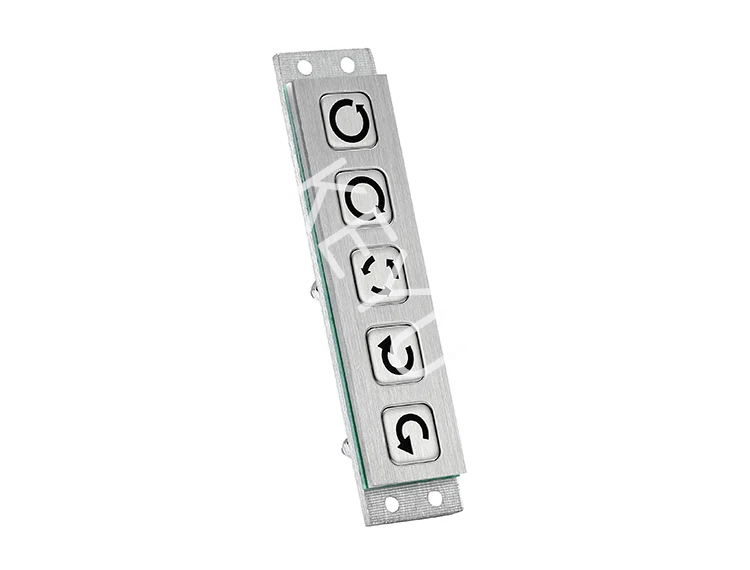

KY2026 side keypad rear view showing pin interface and 115*26mm body

Application Scenarios

Automatic Teller Machine side selection keys
Self-service payment solutions in compact fascias
Self-service petrol filling stations with narrow bezels
Vending machine menu selection

Who It Is For

Designers of compact self-service fascias
ATM and payment terminal OEMs
Forecourt equipment manufacturers
Vending machine integrators

Problems It Solves

Side key strips that eat too much bezel height
Extra controller boards for a handful of function keys
Short service life of low-cost keypad strips
Function key counts that differ between projects

Technical Features

Stainless steel side keypad in function key or side bar form
Pin interface connecting to a KEYU EPP directly
Key trip 1.5mm
Lifespan over 2 million operations per key
98*26mm front panel with a 115*26mm overall body for a mounting margin

Specifications

KY2026 specification
Front Panel	98*26mm
Overall	115*26mm
Interface	Pin, connects to KEYU EPP directly
Key Trip	1.5mm
Lifespan	>2 million operations per key

Materials

Stainless steel keypad strip and buttons

Manufacturing Process

Blanking of the 115*26mm stainless strip
CNC machining of the 98*26mm key window area
Laser etching of key markings
Contact and pin connector assembly
Function test against the EPP interface

Quality Control

Pin interface continuity verification
Key press sampling against the 2 million operation lifespan
Key trip check at 1.5mm
Visual inspection of etched markings and panel edges

Customisation Options

Key count and spacing to your bezel layout
Etched symbols or plain key faces
Side bar or separated function keys
Pin harness orientation
Fixing hole pattern

How It Compares

KY2027E side keypad	KY2026 has a shorter 98mm visible face with a 115mm overall body, where KY2027E is flush at 116*27mm front and overall.
KY2040H side keypad	KY2026 is 26mm high against 40mm, for fascias with very little room beside the screen.
Touch screen soft keys	Physical stainless keys stay usable in rain and glare, where soft keys on an outdoor screen can be hard to hit.

Use Guide

Design the bezel aperture around the 98*26mm visible face
Allow for the 115*26mm overall body behind the fascia
Verify the pin mapping to your KEYU EPP before build
Lock the key symbol artwork before etching

Industries

Solutions

Custom development

Related Products

Side Keypad

Questions About This Model

How small is it?

The front panel is 98*26mm with an overall body of 115*26mm.

Does it need a driver?

No. It uses a pin interface that connects to a KEYU EPP directly.

What lifespan is quoted?

Over 2 million operations per key.

What is the key travel?

1.5mm key trip.

Can the number of keys change?

Yes, layouts are customized to the function set you need.

Typical applications?

Automatic Teller Machines, self-service payment solutions, self-service petrol filling stations and vending machines.

Request A Quote On KY2026

Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.

Chat On WhatsApp Email Your Requirement Back To Side Keypad

KY2026 Compact Side Keypad for Self Service Terminals
