Side Keypad

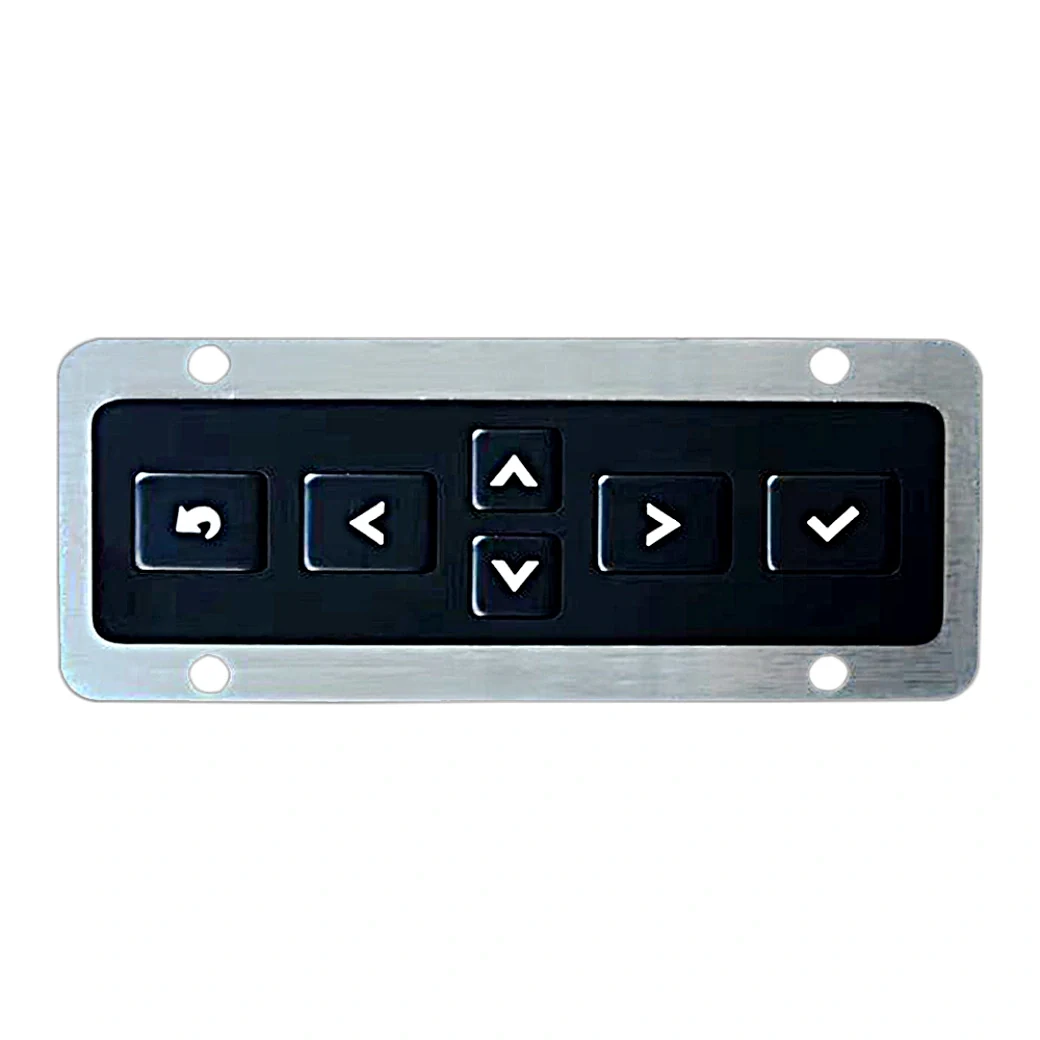

KY-3096-BL Stainless Steel Side Keypad With 6 Functional Keys
KY-3096-BL is an embedded side keypad carrying 6 functional keys in SUS304 stainless steel. It sits beside a display to drive soft menu functions on financial, communication, military and self-service terminals.
Product Overview
KY-3096-BL is an embedded side keypad carrying 6 functional keys in SUS304 stainless steel. It sits beside a display to drive soft menu functions on financial, communication, military and self-service terminals. Back panel mounting keeps every fixing behind the fascia.
- 6 functional keys map directly to on screen soft menu items
- SUS304 stainless steel construction is rugged, vandal proof and anti-corrosion
- Back panel mounting leaves a clean front face with no exposed fasteners
- USB output connects to any current terminal PC without extra interface hardware
- Embossing and customized layouts are available for tactile key identification
- Durability of more than 2 million operations suits unattended machines
Application Scenarios
- Soft key columns beside kiosk displays
- Financial equipment menu selection panels
- Communication equipment control fascias
- Military equipment terminal side panels
- Self-service terminal equipment requiring a narrow key strip
Who It Is For
- Kiosk and self-service terminal OEMs
- Financial equipment manufacturers
- Communication equipment builders
- Panel design engineers fitting narrow fascia strips
Problems It Solves
- Touch screens alone fail for users who need a physical key beside the display
- Plastic soft key strips break when levered or struck
- Front fixed keypads leave visible screws that can be attacked
- Standard keypads do not match the soft key pitch of a given display
Technical Features
- 6 functional keys in an embedded side strip format
- Two key sizes of 10*10*2.0mm and 15*12*2.0mm
- Key trip 0.45mm with key force 2N+/-0.1N
- Power supply 5V plus or minus 5 percent with working current under 150mA
- USB interface with support for Window XP through Window 10, Linux, Ubuntu and Android
- Back panel mounting method
- Operating temperature -10 degrees C to 45 degrees C
Specifications
| Functional keys | 6 |
|---|---|
| Power supply | 5V±5% |
| Working current | <150mA |
| Durability | >2 million |
| Interface | USB |
| Key size | 10*10*2.0mm / 15*12*2.0mm |
| Key trip | 0.45mm |
| Key force | 2N+/-0.1N |
| Mounting way | Back panel mounting |
| Operating temperature | -10℃~45℃ (Relative Humidity 20%~85%) |
| Storage temperature | -30℃~85℃ (Relative Humidity 20%~90%) |
Materials
- SUS304 stainless steel panel
- SUS304 stainless steel keys
Manufacturing Process
- Blanking of the narrow side panel strip
- CNC machining of the 6 key apertures at the required pitch
- Embossing of key surfaces where specified
- Black character laser etching on the stainless keys
- Back panel assembly and USB harness termination
Quality Control
- All 6 keys tested for single clean USB output
- Key force and travel sampled against 2N+/-0.1N and 0.45mm
- Aperture pitch checked against the display soft key positions
- Etching and embossing depth inspected on every batch
Customisation Options
- Customized layouts and key pitch to match your display
- Embossed key surfaces for tactile identification
- Black text etching to your artwork
- Cable length and exit position for your enclosure
- Panel outline shaped to the fascia profile
How It Compares
| Touch only display interface | KY-3096-BL gives a physical key beside the screen for users wearing gloves or working in bright light. |
|---|---|
| Plastic soft key strips | SUS304 stainless steel keys and panel are rugged and vandal proof rather than moulded plastic. |
| Front mounted keypads | Back panel mounting hides all fixings, removing an obvious attack point on a public machine. |
Use Guide
- Set the aperture pitch against your display soft key positions before machining the fascia
- Fit the keypad by back panel mounting and tighten evenly
- Connect the USB lead and confirm each of the 6 keys reports separately
- Keep ambient within -10℃~45℃
- Clean with a damp cloth and avoid abrasives on the stainless face
Solutions
Related Reading
Related Products
Questions About This Model
How many keys does KY-3096-BL have?
It has 6 functional keys.
How is it installed?
It is an embedded device fitted by back panel mounting.
What interface does it use?
USB, with compatibility for Window XP, Window 7, Window 8, Window 10, Linux, Ubuntu and Android.
Can the layout be changed?
Yes. Customized layouts are available and embossing can be added.
What are the key sizes?
Keys are supplied at 10*10*2.0mm and 15*12*2.0mm.
How durable is it?
Durability is rated at more than 2 million operations.
Request A Quote On KY-3096-BL
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
