Side Keypad
KY-2030-3 Brushed Stainless Steel Side Keypad With PIN Output

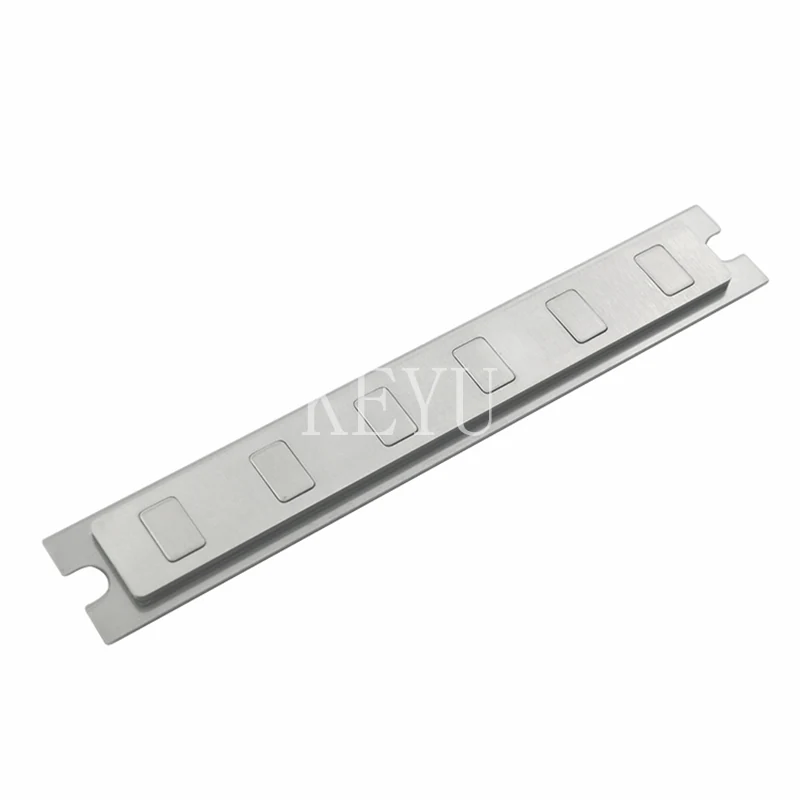

KY-2030-3 is a side keypad on a SUS304 brushed stainless steel panel terminating in a PIN interface for direct connection to your controller.
Product Overview
KY-2030-3 is a side keypad on a SUS304 brushed stainless steel panel terminating in a PIN interface for direct connection to your controller. A lighter 2N ± 10% key strength suits terminals where operators make many selections in sequence. Operation temperature spans -20℃~70℃, covering unheated and sun exposed installations.
- A 2N ± 10% key strength is lighter than typical 3N pads, reducing fatigue on repeated selection
- PIN output connects straight to your controller with no protocol layer
- Operation across -20℃~70℃ suits unheated cabinets and sun exposed fascias
- Working current under 100mA keeps the load low on a shared supply rail
- Rear or front mounting fits both new builds and retrofits
Application Scenarios
- Side key columns beside a terminal display
- Outdoor equipment across a wide temperature range
- Controller boards scanning the keypad matrix directly
- Self service machines with repeated menu selection
- Panel builds with a constrained power budget
Who It Is For
- Terminal designers scanning keys on their own board
- Equipment OEMs specifying side keypads
- Integrators working across hot and cold sites
Problems It Solves
- Heavy 3N keys tire operators who make dozens of selections per transaction
- USB keypads add a protocol layer where a matrix read would do
- Standard keypads lose their temperature rating outdoors
- Printed legends wear off frequently pressed keys
Technical Features
- SUS304 brushed stainless steel panel and buttons, anti-riot and anti-corrosion
- Power supply 5V±5% with working current under 100mA
- PIN product interface
- Key size 12.5mm*20mm*2mm with 0.45mm key trip
- Key strength 2N ± 10%
- Durability greater than 2 million operations
- Net weight 1Kg and gross weight 1.15Kg
Specifications
| Power Supply | 5V±5% |
|---|---|
| Working Current | <100mA |
| Durability | >2 million |
| Interface | PIN |
| Key Size | 12.5mm*20mm*2mm |
| Key Trip | 0.45mm |
| Key Strength | 2N ± 10% |
| Mounting Way | Rear mounting or Front mounting |
| Net Weight | 1Kg |
| Gross Weight | 1.15Kg |
| Operation Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel buttons
Manufacturing Process
- Brushing of the SUS304 panel
- CNC machining of the key apertures
- Etching of button content to customer artwork
- Contact layer lamination and key fitting
- PIN header termination and continuity test
Quality Control
- Key strength sampling against 2N ± 10%
- Key trip measurement at 0.45mm
- Continuity test across the PIN interface
- Temperature verification across the -20℃~70℃ range
- Durability cycling toward the 2 million operation rating
Customisation Options
- Button silk screen or etching content to customer requirement
- Key layout and count for your side column
- Panel outline and fixing pattern to your drawing
- PIN assignment on the output header
- Front or rear mounting arrangement
How It Compares
| KY2078A 18 pin keypad | KY-2030-3 uses a lighter 2N ± 10% key strength and a wider -20℃~70℃ operating range |
|---|---|
| USB side keypads | The PIN output is read directly by your controller without a USB stack |
| Indoor rated keypads | Operation from -20℃ to 70℃ suits unheated and sun exposed installations |
Use Guide
- Agree the PIN matrix mapping before laying out your controller board
- Provide 5V±5% and allow for under 100mA draw
- Select front or rear mounting to match the fascia
- Allow for the 1Kg net weight when sizing panel supports
- Keep operation within -20℃~70℃
Solutions
Related Reading
Related Products
Questions About This Model
What interface does KY-2030-3 use?
A PIN interface for direct connection to your controller.
What is the key strength?
2N ± 10% with a 0.45mm key trip.
What temperature range is supported?
-20℃~70℃ operation and -30℃~85℃ storage.
How heavy is the keypad?
Net weight 1Kg and gross weight 1.15Kg.
What is the panel material?
SUS304 brushed stainless steel, anti-riot and anti-corrosion.
Can legends be customized?
Yes, etching content follows customer requirements.
Request A Quote On KY-2030-3
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
