PCI Encrypting Pin Pad

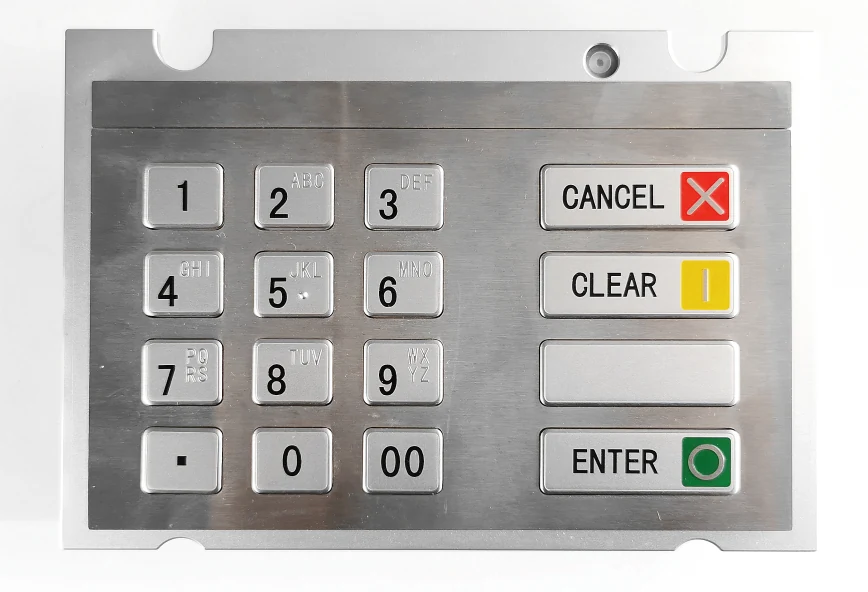

KY3688L PCI 5.X Certified Side Keypad Encrypting Pin Pad
KY3688L is a SUS304 side keypad encrypting pin pad that passed PCI 5.X certification and supports DES, AES, RSA2048, SM2, SM3 and SM4. Keys and sensitive data self-destruct on unpacking, meeting ISO9564 and ANSI X9.24.
Product Overview
KY3688L is a SUS304 side keypad encrypting pin pad that passed PCI 5.X certification and supports DES, AES, RSA2048, SM2, SM3 and SM4. Keys and sensitive data self-destruct on unpacking, meeting ISO9564 and ANSI X9.24. The 0.95Kg unit is rear mounted and rated IP65 and IK07 for unattended terminals.
- PCI 5.X certification keeps the terminal aligned with current scheme requirements
- SM2, SM3 and SM4 support alongside DES, AES and RSA2048 covers Chinese and international schemes
- Key and sensitive data self-destruction on unpacking defeats physical extraction
- IP65 water proof and IK07 vandal proof ratings suit unattended outdoor sites
- ESD 6K protection guards the module in dry public environments
- Braille or graphic key caps are optional for accessibility rules
Application Scenarios
- Unattended payment kiosks and vending terminals
- ATM side keypad positions
- Fuel forecourt payment points
- Transport ticketing machines with card payment
- Secure access terminals requiring encrypted entry
Who It Is For
- Payment terminal and ATM manufacturers
- Kiosk integrators deploying certified pin entry
- Banking equipment suppliers serving Chinese and export markets
- Transport ticketing OEMs
Problems It Solves
- Terminals cannot be approved with an outdated pin entry certification
- Chinese algorithm requirements are not met by DES and AES alone
- Attackers attempt to extract keys from unattended devices
- Outdoor pin pads fail when water and dust reach the key field
Technical Features
- Passed PCI 5.X certification with DES, AES, RSA2048, SM2, SM3 and SM4
- Meets ISO9564 and ANSI X9.24 with ANSI X9.8 and ANSIX9.19
- Key and sensitive data unpacking and self-destruction
- Key size 18mm*15mm*2mm / 45mm*15mm*2 with key trip 0.45mm
- Operation force 3N ± 10% and durability >2 Million
- ESD 6K, vandal proof IK07 and water proof IP65
- RS232 interface with pin interface control board
Specifications
| Panel material | SUS304 stainless steel |
|---|---|
| Certification | PCI 5.X |
| Algorithms | DES, AES, RSA2048, SM2, SM3, SM4 |
| Power supply | 5V±5% |
| Working current | <150mA |
| Durability | >2 Million |
| Interface | RS232 |
| Key size | 18mm*15mm*2mm / 45mm*15mm*2 |
| Key trip | 0.45mm |
| Operation force | 3N ± 10% |
| Net weight | 0.95Kg |
| Protection | ESD 6K, IK07 vandal proof, IP65 water proof |
Materials
- SUS304 stainless steel side keypad panel
- Stainless steel keycaps with optional braille or graphic caps
- Tamper-responsive secure module
Manufacturing Process
- Panel forming of the side keypad body
- Brushing and anti-corrosion finishing
- Embossing or etching of the key screen content
- Secure module assembly with self-destruction circuitry
- IP65 sealing and IK07 reinforcement
- Certification configuration and function test
Quality Control
- Security functions tested against the PCI 5.X certified build
- Self-destruction response verified on sample units
- IP65 sealing and ESD 6K immunity checked
- Operation force sampled against 3N ± 10%
- RS232 communication validated with a host controller
Approvals And Test Documentation
- PCI 5.X
- ISO9564
- ANSI X9.24
- IP65
- IK07
Customisation Options
- Braille or graphic key caps as an option
- Embossing available with customized layouts
- Key screen printing or etching content to artwork
- Panel outline for the terminal side aperture
- Rearing mounting hardware to the fascia thickness
How It Compares
| KY3689 PCI 1.3 pin pad | PCI 5.X certification and RSA2048 with SM2, SM3 and SM4 extend the approved algorithm set |
|---|---|
| Front mounted pin pad | A side keypad layout suits terminals where the display occupies the front fascia |
| Non-tamper keypad | Key and sensitive data self-destruction on unpacking protects stored keys when the unit is attacked |
Use Guide
- Agree the algorithm set and key injection process with your acquirer first
- Allow for the 0.95Kg net weight in the rearing mounting bracket
- Supply 5V±5% within the <150mA working current budget
- Do not open the housing as the self-destruction function will trigger
- Operate within -10℃~45℃ and store within -30℃~85℃
Solutions
Related Reading
Questions About This Model
What certification does it hold?
It passed PCI 5.X certification and meets the ISO9564 and ANSI X9.24 security standards.
Does it support Chinese algorithms?
Yes. SM2, SM3 and SM4 are supported alongside DES, AES and RSA2048.
What happens if the unit is opened?
Key and sensitive data unpacking triggers self-destruction of the stored keys.
What are the protection ratings?
IP65 water proof, IK07 vandal proof and ESD 6K.
How is it mounted and what does it weigh?
Rearing mounting, with a net weight of 0.95Kg and gross weight of 1.1Kg.
Which interface does it use?
RS232, with a pin interface equipped with a control board.
Request A Quote On KY3688L
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
