PCI Encrypting Pin Pad
KY3688A Metal EPP With 145*100 mm Braille Keypad

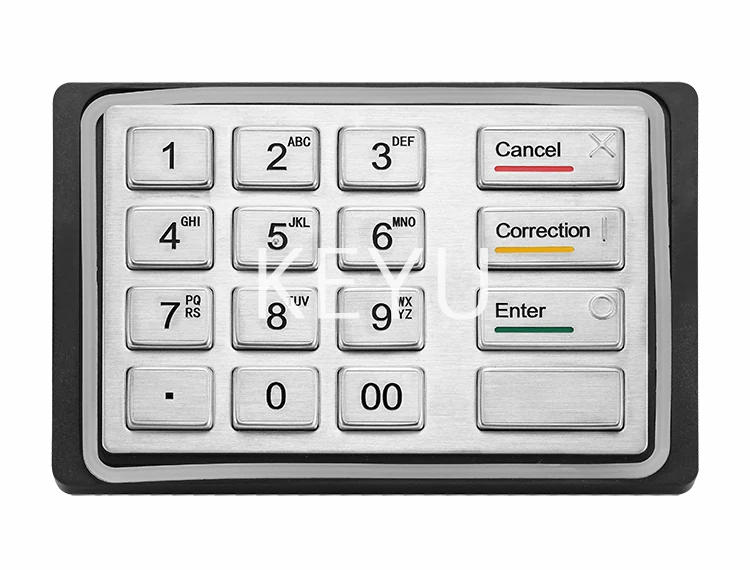

KY3688A is a metal EPP with a large 145*100 mm keypad in #304 stainless steel, giving wide key spacing and a defined layout that includes braille.
Product Overview

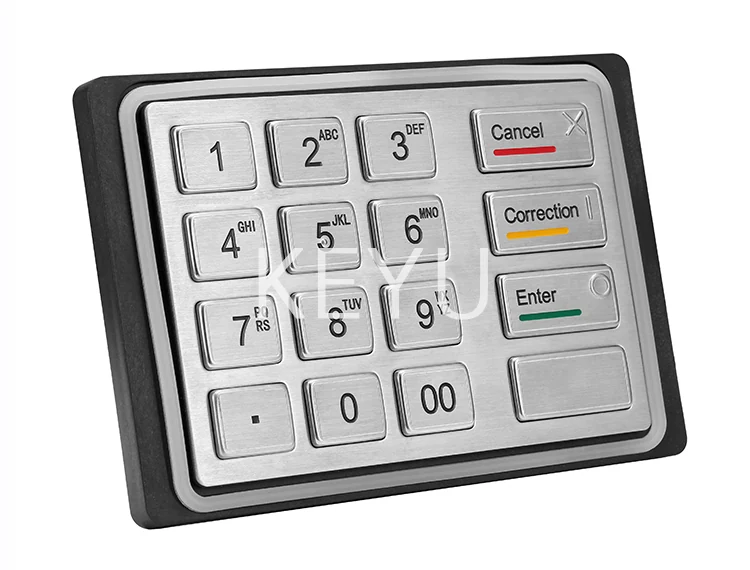

KY3688A is a metal EPP with a large 145*100 mm keypad in #304 stainless steel, giving wide key spacing and a defined layout that includes braille. It is certified to PCI 1.3 along with CE, ROHS, FCC, IP65 and IK7, and connects over an RS232 Serial Port with MK/SK key management and remote key loading. The POI is intended for use in both attended and unattended positions.
- 145*100 mm keypad gives generous key spacing for accessible PIN entry
- PCI 1.3 certification with CE, ROHS, FCC, IP65 and IK7
- ESD rating of 8K for exposed outdoor and forecourt positions
- MTBF greater than 42950 with a key press life of 2 millions
- Remote key loading with 16 keys under MK/SK management
- Wide operating temperature range of -40°C ~ 105°C
Application Scenarios
- Attended payment counters requiring a PED class device
- Unattended terminals in exposed outdoor positions
- ATM and self-service payment machines with a large PIN bay
- Installations where braille key marking is required
Who It Is For
- Payment terminal manufacturers standardising on PCI 1.3
- ATM builders with a wide PIN entry bay
- Unattended kiosk integrators in exposed locations
- Projects with accessibility requirements for PIN keypads
Problems It Solves
- Narrow key spacing making PIN entry difficult for some users
- Static discharge damage on exposed forecourt keypads
- On-site key injection visits across a dispersed estate
- Certification evidence needed before terminal approval
- Temperature extremes in unheated enclosures
Technical Features
- Physical keypad PIN entry technology in Class PED
- RS232 Serial Port interface with MK/SK key management
- Algorithms 3DES, AES, SHA256 and RSA to ISO9564-1 0 / 1 / 3 / 4, ANSI X9.8, ANSI X9.19, ECB and CBC
- ESD 8K with MTBF > 42950
- Operating Voltage 5.0V ±10% and Battery Voltage 3.0V ±10%
- Current below 40mA with a key press life of 2 millions
- Material #304 with a defined layout including braille
Specifications
| Size | 145*100 mm |
|---|---|
| Class | PED |
| Interface | RS232 Serial Port |
| Key Management | MK/SK |
| PIN Entry Evaluated | Online |
| Temperature range | -40°C ~ 105°C |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Operating Voltage | 5.0V ±10% |
| Battery Voltage | 3.0V ±10% |
| ESD | 8K |
| MTBF | > 42950 |
| Key Number | 16 (Master Key, PIN Key, Mac Key, Data Key) |
Materials
- #304 stainless steel keypad material
Manufacturing Process
- Sheet-metal forming of the 145*100 mm #304 panel
- CNC machining of the wide key field
- Laser etching of key legends and braille
- Secure module assembly with tamper detection
- RS232 communication and remote key loading verification
Quality Control
- PCI 1.3 conformance verification
- ESD testing to the stated 8K level
- Key press sampling against the 2 millions life figure
- Temperature and humidity testing to -40°C ~ 105°C and 5% ~ 95%
- Current draw check against the <40mA figure
Approvals And Test Documentation
- PCI 1.3
- CE
- ROHS
- FCC
- IP65
- IK7
Customisation Options
- Defined key layout including braille
- Key legend etching to your artwork
- Mounting bracket for attended or unattended positions
- RS232 cable length and connector type
- Remote key loading setup with your key management system
How It Compares
| KY3688C metal PCI EPP | KY3688A is the larger 145*100 mm device certified to PCI 1.3, while KY3688C is 87.5*91.5 mm at PCI 3.0. |
|---|---|
| KY2160A metal encrypting pin pad | KY3688A is a certified PED class EPP with MK/SK key management and remote key loading rather than a general encrypting pin pad. |
| Smaller EPP modules | The 145*100 mm face provides wider key spacing where accessibility drives the specification. |
Use Guide
- Confirm PCI 1.3 is acceptable for your scheme before specifying
- Size the bay to the 145*100 mm device
- Provide an RS232 Serial Port and 5.0V ±10% supply
- Maintain the 3.0V ±10% battery as part of scheduled service
- Agree the remote key loading process with your key management host
Solutions
Related Reading
Questions About This Model
How big is the keypad?
The device size is 145*100 mm.
What certification does it hold?
PCI 1.3, plus CE, ROHS, FCC, IP65 and IK7.
What is the ESD rating?
ESD is 8K.
How many keys are managed?
Key Number is 16, covering Master Key, PIN Key, Mac Key and Data Key, under MK/SK key management.
Can keys be loaded remotely?
Yes, Key Loading is remote.
What is the material?
#304 stainless steel with a defined layout that includes braille.
