Fire Hose
Snow Making Hose
Snow making hose is a double jacket canvas hose that delivers water to snow cannon through a winter season.
Product Overview
What This Hose Is Built To Do
Snow making hose is a double jacket canvas hose that delivers water to snow cannon through a winter season. It is lined in TPU or EPDM, made in DN38 (1.5 inch) and DN51 (2 inch) in 20 m (66 ft) lengths, and is built to stay flexible in the cold: -50°C to 80°C with TPU, -45°C to 150°C with EPDM. We have shipped repeat orders of snow making hose, including 300 rolls to a Beijing Winter Olympics ski resort.
Key Benefits
- Double jacket construction for the sustained high pressure a snow gun needs
- Cold resistant liner so the hose stays flexible on a mountain in mid-winter
- Resistant to kinking and twisting, which matters on hose moved daily between guns
- Proven on repeat resort orders including 300 rolls for a Beijing Winter Olympics ski resort
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Liner | TPU or EPDM rubber |
|---|---|
| Color | Red, yellow, orange or as required |
| Size | DN38(1.5 inch), DN51(2 inch) |
| Length | 20m(66ft) as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) for TPU, -45°C～+150°C(–49 °F to 302 °F ) for EPDM |
Problems It Solves
Why Buyers Move To This Product
- Hose stiffening and cracking when handled at sub-zero temperatures
- Pressure loss from kinks in lines moved daily around the piste
- Season-critical delivery dates where a late shipment means lost snow days
Who It Is For
- Ski resorts and snow park operators
- Snow making system installers
- Winter sports venue contractors
- Distributors supplying resort maintenance teams

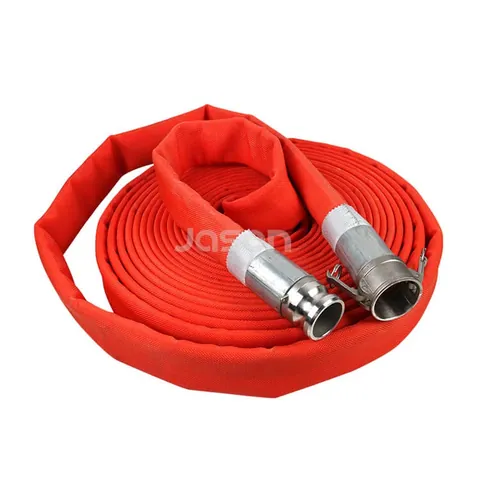

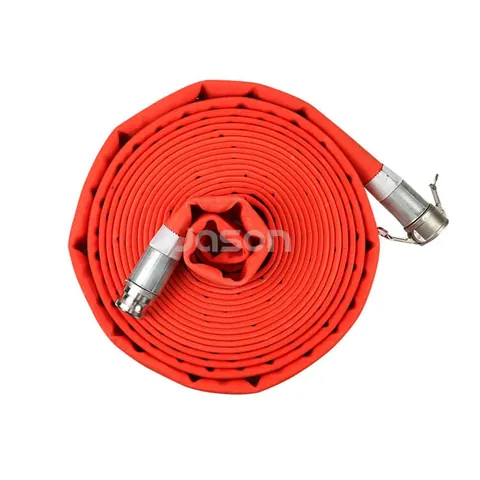

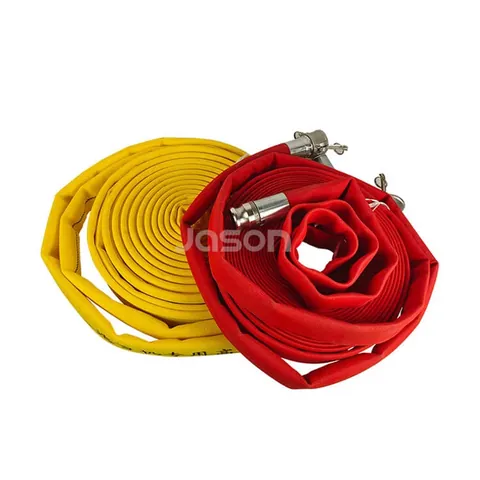

Photographs
The Product as It Ships
Technical Features
- High-pressure
- Flexible
- Cold resistant
- Abrasion resistant
- Kinking
- Twisting
- Ensuring a long lifespan and reliable performance and etc
Application Scenarios
- Water supply in snow making
Manufacturing and Quality
How It Is Made and Checked
Production Process of Fire Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Drain the line fully at the end of each session so residual water cannot freeze in the bore
- Handle rolls warm where possible before deploying in deep cold
- Keep couplings clear of packed snow so gaskets seat
- Check the jacket for abrasion where hose crosses groomed edges
- Store dry and off the ground through the summer
Comparison
How It Compares With Our Other Products
| Double Jacket Fire Hose | Same double jacket principle, finished here in DN38 and DN51 specifically for snow cannon supply |
|---|---|
| Canvas Fire Hose | Canvas fire hose is single jacket and lighter, where snow making duty needs the higher pressure of two jackets |
Related Case Studies
Related Products
Other Products in the Fire Hose Range
10 Inch Fire Hose
The 10 inch fire hose is a DN250 TPU layflat supply line used in heavy duty firefighting systems, large agricultural schemes and water discharge during construction, mining and floods.
View specifications
8 Inch Fire Hose
The 8 inch fire hose is a DN200 TPU layflat supply hose used as the feed line in heavy duty firefighting systems and large agricultural systems, and for water discharge in construction, mining and floods.
View specifications
Doctor Blade Air Hose
The doctor blade air hose delivers pressurised air to the doctor blade chamber in paper making and printing, where the blade has to stay in constant contact with the cylinder.
View specificationsFAQ
Questions About the Snow Making Hose
Which sizes do you make
DN38 (1.5 inch) and DN51 (2 inch).
What length is standard
20 m (66 ft), or as required.
Which liner is better for snow making
TPU covers -50°C to 80°C and EPDM covers -45°C to 150°C. For cold-only duty TPU is the usual choice.
Can you meet a fixed delivery date for a season
Yes. Delivery timing is a normal requirement on resort orders and we schedule production to the date agreed.
Which colours are available
Red, yellow and orange are standard, with other colours to order.
Have you supplied major resorts before
Yes. A repeat customer ordered 300 rolls of snow making hose for a Beijing Winter Olympics ski resort.
Request a Quote on the Snow Making Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
