12 Inch Fire Hose
The 12 inch fire hose is a DN300 TPU-lined layflat supply hose for heavy duty firefighting, large irrigation systems and emergency drainage.
Product Overview
What This Hose Is Built To Do
The 12 inch fire hose is a DN300 TPU-lined layflat supply hose for heavy duty firefighting, large irrigation systems and emergency drainage. At this bore the hose behaves less like a hose and more like a temporary water main that two people can roll out. It is supplied in 20 m (66 ft) and 30 m (100 ft) lengths in white, and holds its properties from -50°C to 80°C.
Key Benefits
- DN300 bore moves relief volumes of water without laying rigid pipe
- Layflat construction rolls to a fraction of its deployed footprint for transport on a tender
- TPU lining holds flexibility down to -50°C, so winter deployments are not a gamble
- 20 m and 30 m lengths let a crew build the run to the distance actually needed
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Liner | High quality TPU |
|---|---|
| Color | White or as required |
| Size | 12 inch(DN300) |
| Length | 20m(66ft), 30m (100ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Moving flood or fire water at main-line volume when no fixed pipework exists
- Rigid large-bore pipe taking too long to assemble during an emergency
- Hose stiffening and cracking when deployed in sub-zero conditions
Who It Is For
- Municipal fire brigades running large diameter supply lines
- Flood response and civil defence units
- Mine and construction dewatering crews moving bulk water
- Large-scale irrigation schemes

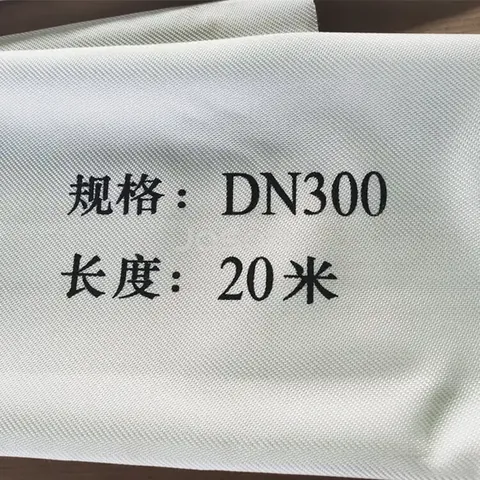

Photographs
The Product as It Ships
Technical Features
- Large size
- High-pressure
- Flexible
- Easy storage and deployment
- Abrasion resistance
- Long service life
- Excellent flow rates and etc
Application Scenarios
- Water supply in firefighting and agriculture irrigation
- Emergency drainage
- Construction and mining dewatering
Manufacturing and Quality
How It Is Made and Checked
Production Process of Fire Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Roll the hose out rather than dragging it charged, to protect the cover
- Check the coupling gaskets before charging a large diameter line
- Bleed air from the line gradually so the hose does not whip on charging
- Drain and dry before rolling so the lining does not sit wet in storage
- Roll from one end and store on a rack, not stacked flat under load
Comparison
How It Compares With Our Other Products
| 10 Inch Fire Hose | Same TPU construction and temperature range with a larger DN300 bore, so it moves more per hour but is heavier to carry charged |
|---|---|
| 12 Inch Discharge Hose | The PVC discharge version is cheaper and lighter for routine water transfer, where this TPU hose is specified where abrasion and cold matter |
Related Products
Other Products in the Fire Hose Range
8 Inch Fire Hose
The 8 inch fire hose is a DN200 TPU layflat supply hose used as the feed line in heavy duty firefighting systems and large agricultural systems, and for water discharge in construction, mining and floods.
View specifications
Doctor Blade Air Hose
The doctor blade air hose delivers pressurised air to the doctor blade chamber in paper making and printing, where the blade has to stay in constant contact with the cylinder.
View specifications
Canvas Discharge Hose
Canvas discharge hose is a TPU-lined layflat hose in 6 to 12 inch, built for pumping large volumes of water in emergency drainage, construction dewatering, irrigation supply and firefighting.
View specificationsFAQ
Questions About the 12 Inch Fire Hose
What is the bore of the 12 inch hose
DN300.
Which lengths are standard
20 m (66 ft) and 30 m (100 ft), or as required.
What is the cold weather limit
It is rated to -50°C (-60°F) at the low end and 80°C (176°F) at the high end.
Can it be supplied in a colour other than white
Yes. White is standard and other colours are made to order.
Which couplings suit a hose this size
Quick VIC couplings run to 16 inch and Storz self-locking to 14 inch, so both cover DN300.
Is this the same as your TPU layflat hose
It shares the TPU construction. This one is finished and specified for firefighting and emergency supply duty.
Request a Quote on the 12 Inch Fire Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
