10 Inch Fire Hose
The 10 inch fire hose is a DN250 TPU layflat supply line used in heavy duty firefighting systems, large agricultural schemes and water discharge during construction, mining and floods.
Product Overview
What This Hose Is Built To Do
The 10 inch fire hose is a DN250 TPU layflat supply line used in heavy duty firefighting systems, large agricultural schemes and water discharge during construction, mining and floods. High tenacity synthetic yarn carries the pressure and the TPU lining carries the flow, giving a hose that deploys fast and rolls small. Lengths are 20 m (66 ft) and 30 m (100 ft) in white.
Key Benefits
- DN250 bore delivers high volume while still being manageable for a two-person crew
- Rolls flat, so a full relay fits on one vehicle instead of several
- Abrasion resistant cover for repeated deployment over road and rubble
- Wide -50°C to 80°C range covers winter flood work and hot climate irrigation
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Liner | High quality TPU |
|---|---|
| Color | White or as required |
| Size | 10 inch(DN250) |
| Length | 20m(66ft), 30m (100ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Setting up a long supply relay quickly when hydrant pressure is too far away
- Losing time and vehicle space transporting rigid pipe to a remote incident
- Cover wear from repeatedly dragging supply line across abrasive surfaces
Who It Is For
- Fire services building large diameter supply relays
- Mine dewatering crews
- Agricultural water boards running seasonal transfer lines
- Emergency drainage contractors
Photographs

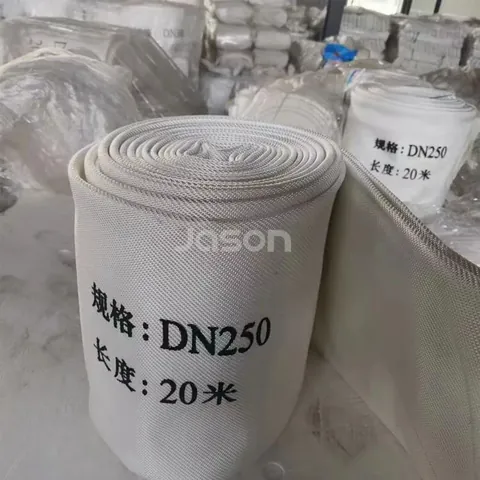

The Product as It Ships
Technical Features
- Large size
- High-pressure
- Flexible
- Easy storage and deployment
- Abrasion resistance
- Long service life
- Excellent flow rates and etc
Application Scenarios
- Water supply in firefighting and agriculture irrigation
- Emergency drainage
- Construction and mining dewatering
Manufacturing and Quality
How It Is Made and Checked
Production Process of Fire Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Plan the relay so each length ends near a natural anchor point
- Charge slowly and walk the line to check for twists before full pressure
- Keep couplings out of standing mud so gaskets stay clean
- Dry the hose before rolling, particularly after flood water
- Rotate stock so the same lengths are not always the ones deployed
Comparison
How It Compares With Our Other Products
| 12 Inch Fire Hose | One size down, so easier to handle and roll but lower flow per hour at the same pressure |
|---|---|
| LDH Fire Hose | LDH is nitrile rubber covered in 4 to 6 inch for appliance supply, where this TPU hose goes larger for bulk transfer |
Related Products
Other Products in the Fire Hose Range
8 Inch Fire Hose
The 8 inch fire hose is a DN200 TPU layflat supply hose used as the feed line in heavy duty firefighting systems and large agricultural systems, and for water discharge in construction, mining and floods.
View specifications
Doctor Blade Air Hose
The doctor blade air hose delivers pressurised air to the doctor blade chamber in paper making and printing, where the blade has to stay in constant contact with the cylinder.
View specifications
Canvas Discharge Hose
Canvas discharge hose is a TPU-lined layflat hose in 6 to 12 inch, built for pumping large volumes of water in emergency drainage, construction dewatering, irrigation supply and firefighting.
View specificationsFAQ
Questions About the 10 Inch Fire Hose
What is the metric bore
DN250.
What lengths do you supply
20 m (66 ft) and 30 m (100 ft), or as required.
Is it suitable for mine dewatering
Yes. Construction and mining dewatering is one of its listed applications.
What is the standard colour
White, with other colours made to order.
Can the hose be printed with our name
Yes. OEM and ODM printing is part of our standard service.
How is the hose tested before shipment
Layflat hose is tested at 1.5 times working pressure for 2 hours before packing.
Request a Quote on the 10 Inch Fire Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
