Doctor Blade Air Hose
The doctor blade air hose delivers pressurised air to the doctor blade chamber in paper making and printing, where the blade has to stay in constant contact with the cylinder.
Product Overview
What This Hose Is Built To Do
The doctor blade air hose delivers pressurised air to the doctor blade chamber in paper making and printing, where the blade has to stay in constant contact with the cylinder. It is lined in NBR, EPDM or Viton depending on the temperature the machine runs at, covering up to 100°C, 130°C, 160°C or 250°C. Sizes run from 5/8 inch to 4 inch in 30 m (100 ft) lengths.
Key Benefits
- Four liner options let the hose be matched to the actual chamber temperature instead of over-specified
- Acid and alkali resistance for the chemistry around a coating station
- Corrosion and crack resistance so the blade load stays constant between shutdowns
- Long lifetime on a component that is expensive to change mid-run
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Liner | High quality NBR/EPDM/Viton |
|---|---|
| Color | White, yellow or as required |
| Size | 5/8-4 inch |
| Length | 30m (100ft) or as required |
| Temperature | Up to 100°C(212°F)/130°C(266°F)/160°C(320°F)/250°C(482°F) |
Problems It Solves
Why Buyers Move To This Product
- Inconsistent blade pressure causing ink or coating weight to drift across the web
- Air hose hardening and cracking near a hot cylinder
- Unplanned stops to replace an air line that could not take the chamber temperature
Who It Is For
- Paper mills running coating and sizing stations
- Printing plants with doctor blade chambers
- Converting lines using blade metering
- Maintenance teams specifying replacement air lines

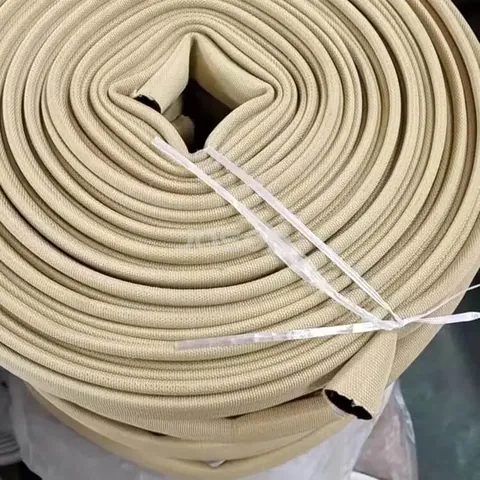

Photographs
The Product as It Ships
Technical Features
- High temperature resistance
- Acid and alkali resistance
- Corrosion and crack resistance
- High-pressure
- Flexible
- Durable
- Abrasion resistance
- Long lifetime and reliable performance and etc
Application Scenarios
- High temperature air transfer for doctor blade in paper making
Manufacturing and Quality
How It Is Made and Checked
Production Process of Fire Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Confirm the maximum chamber temperature before choosing between NBR, EPDM and Viton
- Route the hose away from direct contact with the heated cylinder
- Check the hose at every planned shutdown rather than waiting for a failure
- Keep the bore clean and dry so condensate does not reach the blade
- Replace on a fixed interval where the line is inside an enclosed hot zone
Comparison
How It Compares With Our Other Products
| Hot Water Hose | Both use high temperature liners, but this one is specified for pressurised air on a blade chamber rather than hot liquid transfer |
|---|---|
| Layflat Air Hose | Layflat air hose is a general compressed air line, where this is built for the temperature and chemistry beside a paper machine |
Related Products
Other Products in the Fire Hose Range
10 Inch Fire Hose
The 10 inch fire hose is a DN250 TPU layflat supply line used in heavy duty firefighting systems, large agricultural schemes and water discharge during construction, mining and floods.
View specifications
8 Inch Fire Hose
The 8 inch fire hose is a DN200 TPU layflat supply hose used as the feed line in heavy duty firefighting systems and large agricultural systems, and for water discharge in construction, mining and floods.
View specifications
Canvas Discharge Hose
Canvas discharge hose is a TPU-lined layflat hose in 6 to 12 inch, built for pumping large volumes of water in emergency drainage, construction dewatering, irrigation supply and firefighting.
View specificationsFAQ
Questions About the Doctor Blade Air Hose
Which liner should I choose
NBR, EPDM or Viton, selected by temperature. The range covers up to 100°C, 130°C, 160°C and 250°C.
What sizes do you make
5/8 inch to 4 inch.
What length is standard
30 m (100 ft), or as required.
What colours are available
White and yellow are standard, with other colours to order.
Is it resistant to coating chemicals
It is specified for acid and alkali resistance. Send the chemistry you run and we will confirm the liner.
Can you supply a sample before a full order
Yes. Sample requests go through WhatsApp or email.
Request a Quote on the Doctor Blade Air Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
